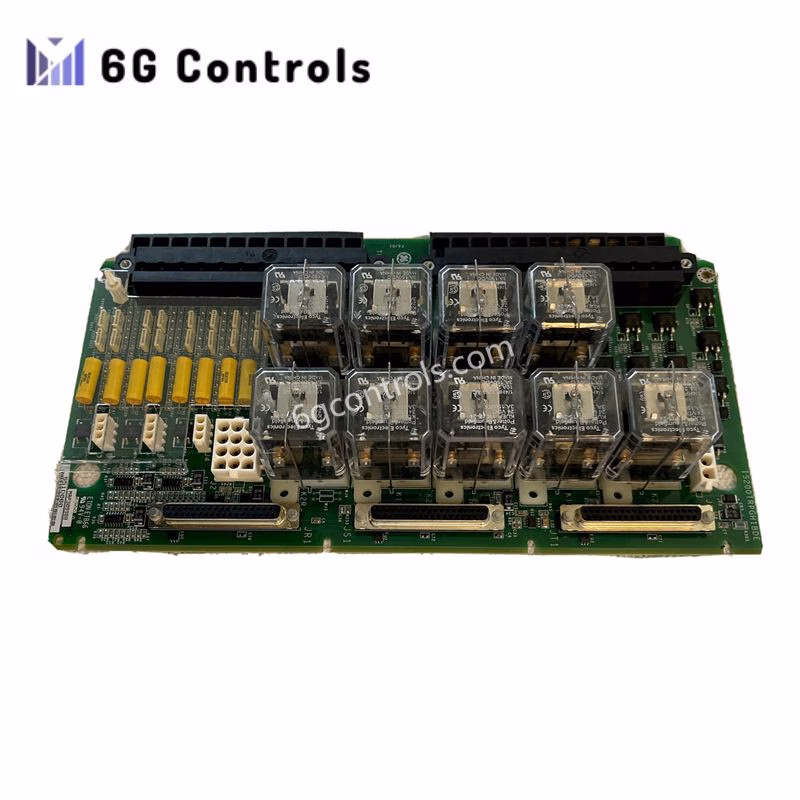

GE IS200TRPGH1BDD Terminal Board Most Favorable

Overview

The GE IS200TRPGH1BDD is a high-performance terminal board used in GE’s Mark VI Speedtronic Turbine Control System. It manages trip solenoid circuits and monitors flame detector inputs, ensuring safe and reliable turbine operation. GE designed this board to enable fast emergency shutdowns and precise turbine protection.

Technical Specifications

• Model Number: IS200TRPGH1BDD
• Manufacturer: General Electric (GE)
• System Compatibility: Mark VI Speedtronic Turbine Control System
• Product Type: Terminal Board
• Primary Function: Controls trip solenoids with -125V DC output
• Relay Count: 9 relays arranged in 3 groups
• Flame Detector Support: Up to 8 Geiger-Mueller detectors per board
• Flame Detector Supply Voltage: 335 V DC
• Additional Components: Metal Oxide Varistors (MOVs) for surge protection
• Control Interface: Compatible with TREG control board
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +70°C
