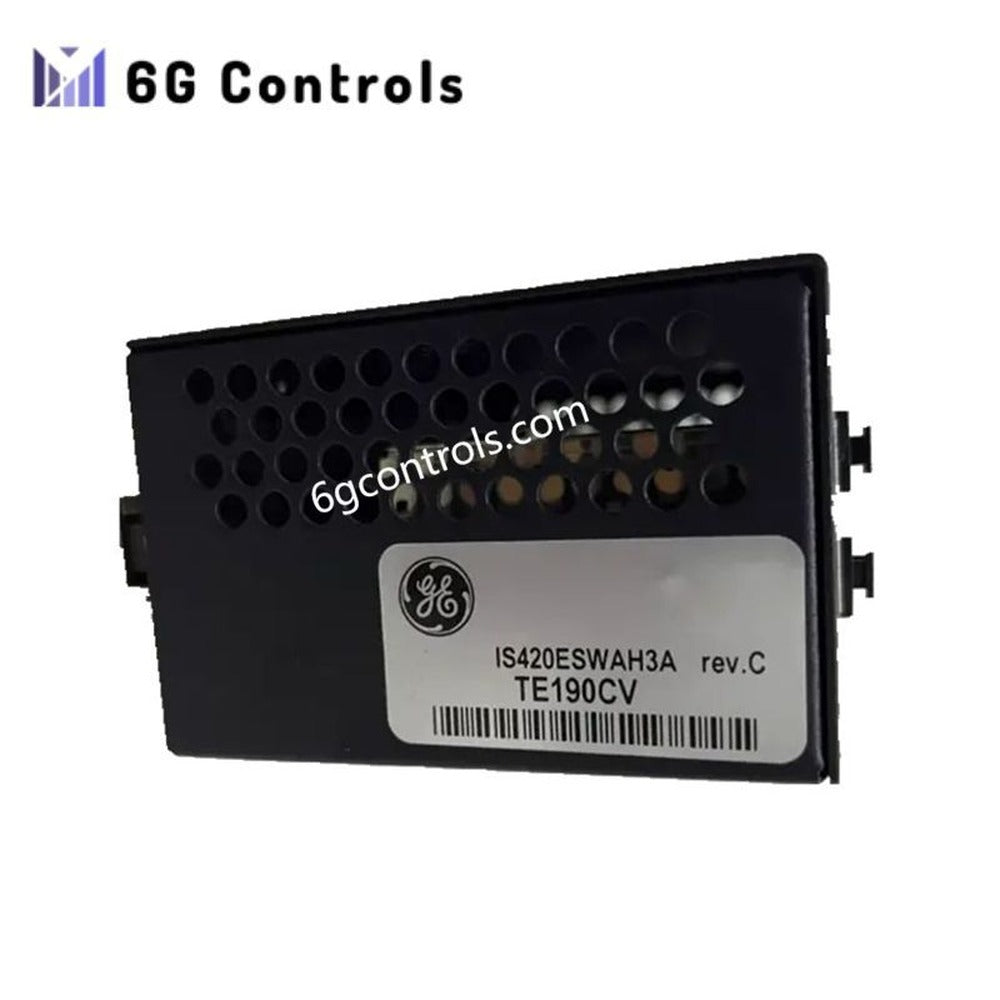

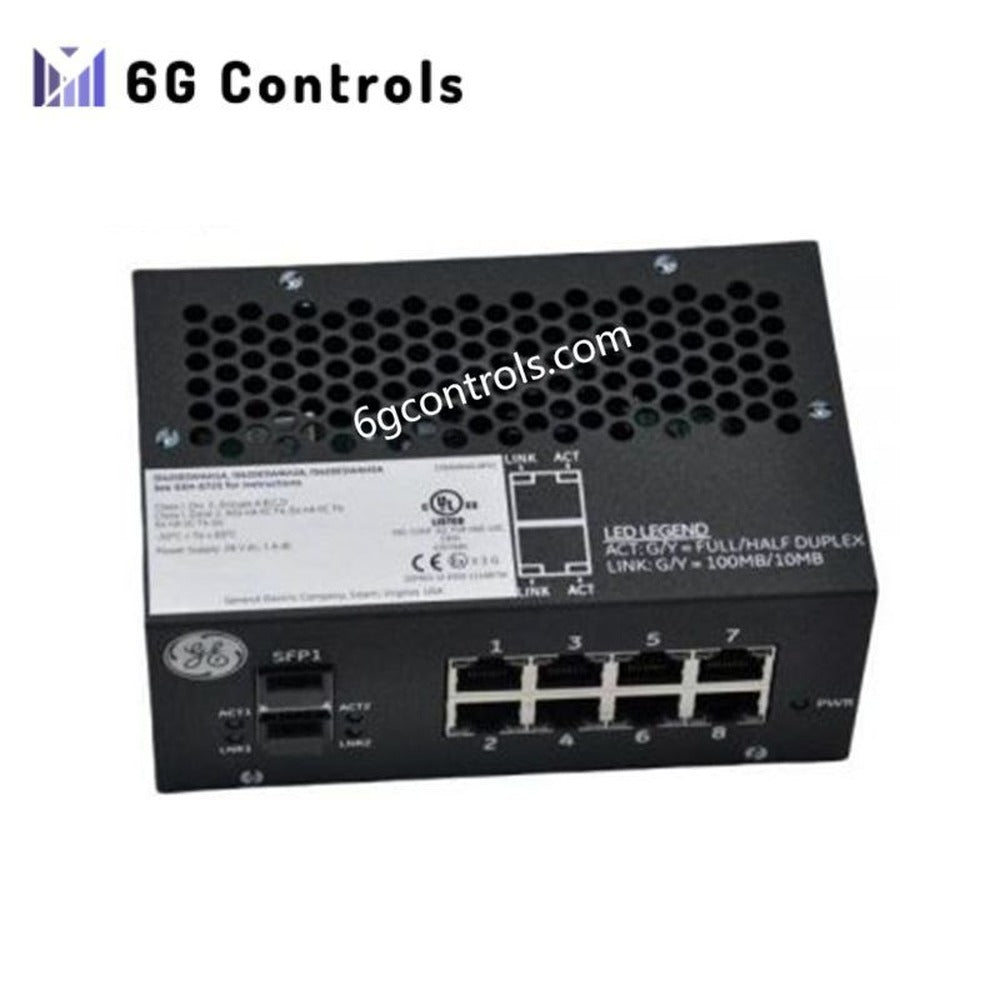

GE IS420ESWAH3A Industrial Ethernet Switch Brand New

Product Description

The GE IS420ESWAH3A is a rugged industrial Ethernet switch engineered specifically for Mark VIe and VIeS turbine control systems. It provides deterministic, real-time communication between controllers, I/O modules, and operator interfaces, ensuring reliable turbine operation even in harsh industrial environments. Moreover, its compact design and robust construction make installation straightforward in control panels with limited space.

This switch supports both copper and optional fiber ports, offering flexible network architecture with redundancy. In addition, IEEE 1588 PTP synchronization guarantees precise timing for critical turbine operations, including overspeed protection and fast interlocks. Its corrosion-resistant coating and wide operating temperature range allow reliable performance in high EMI, humidity, and extreme temperature conditions.

Key Features

• Deterministic real-time IONet communication for turbine control networks.
• Dual media redundancy with 8 copper and optional 2 fiber ports for high availability.
• IEEE 1588 PTP time synchronization with 1 µs accuracy.
• Rugged, corrosion-resistant design suitable for extreme temperatures and EMI.
• Compact form factor with DIN rail or panel mounting options.
• Redundant power inputs for uninterrupted operation.
• Comprehensive LED indicators for port status, activity, duplex, and speed.

Technical Specifications

General

• Model: IS420ESWAH3A
• Manufacturer: General Electric (GE)
• Series: Mark VIe / Mark VIeS
• Functional Abbreviation: ESWA
• Software Version: ControlST V04.03.18C
• Operating System: QNX Neutrino

Ports & Connectivity

• Copper Ports: 8 × 10/100Base‑TX RJ45 (auto-negotiation, HP-MDIX)
• Fiber Ports: 0 standard, optional 2 × 100Base‑FX multimode LC (up to 2 km)
• Protocols: IEEE 802.3, 802.3u, 802.3x, GE IONet
• MAC Address Table: 4K entries
• Buffer Memory: 256 KB

Performance

• IONet Refresh Cycle: ≤ 5 ms
• Duplex Modes: Full/half duplex auto-negotiation
• Flow Control: IEEE 802.3x Pause Frame
• Time Synchronization: IEEE 1588 PTP (1 µs accuracy)

Electrical & Environmental

• Input Voltage: 24–28 V DC, redundant inputs
• Power Consumption: Typical 5 W, maximum 8 W
• Operating Temperature: –40 °C to +70 °C
• Storage Temperature: –40 °C to +85 °C
• Protection: G3 corrosion-resistant coating, 1000 h salt spray tested
• MTBF: >250,000 hours

Mechanical

• Dimensions: 13.8 × 8.6 × 5.6 cm
• Weight: 0.5 kg
• Mounting: DIN rail or panel screw, perpendicular clip optional

Typical Applications

• Integration into GE Mark VIe / VIeS turbine control networks.
• Real-time communication between turbine controllers and I/O modules.
• Industrial automation requiring redundant network paths and deterministic timing.
• Harsh environments such as high humidity, vibration, or wide temperature conditions.

Support & Maintenance

GE IS420ESWAH3A offers easy diagnostics through LED indicators and remote monitoring via IONet. Moreover, redundant power inputs and ring topology support minimize downtime. Periodic firmware updates through ControlST ensure consistent network performance and security compliance.

FAQ

Q: Can this switch operate in extreme temperatures? A: Yes, it operates reliably between –40 °C and +70 °C and stores safely up to +85 °C.

Q: Does it support fiber connections? A: The standard model does not include fiber, but up to 2 fiber ports can be added for extended connectivity.

Q: What type of network protocol does it use? A: It supports standard Ethernet (IEEE 802.3, 802.3u, 802.3x) and GE proprietary IONet for real-time turbine communication.

Q: How is the switch mounted in a control panel? A: It supports DIN rail and panel screw mounting, with an optional perpendicular clip for flexible installation.
