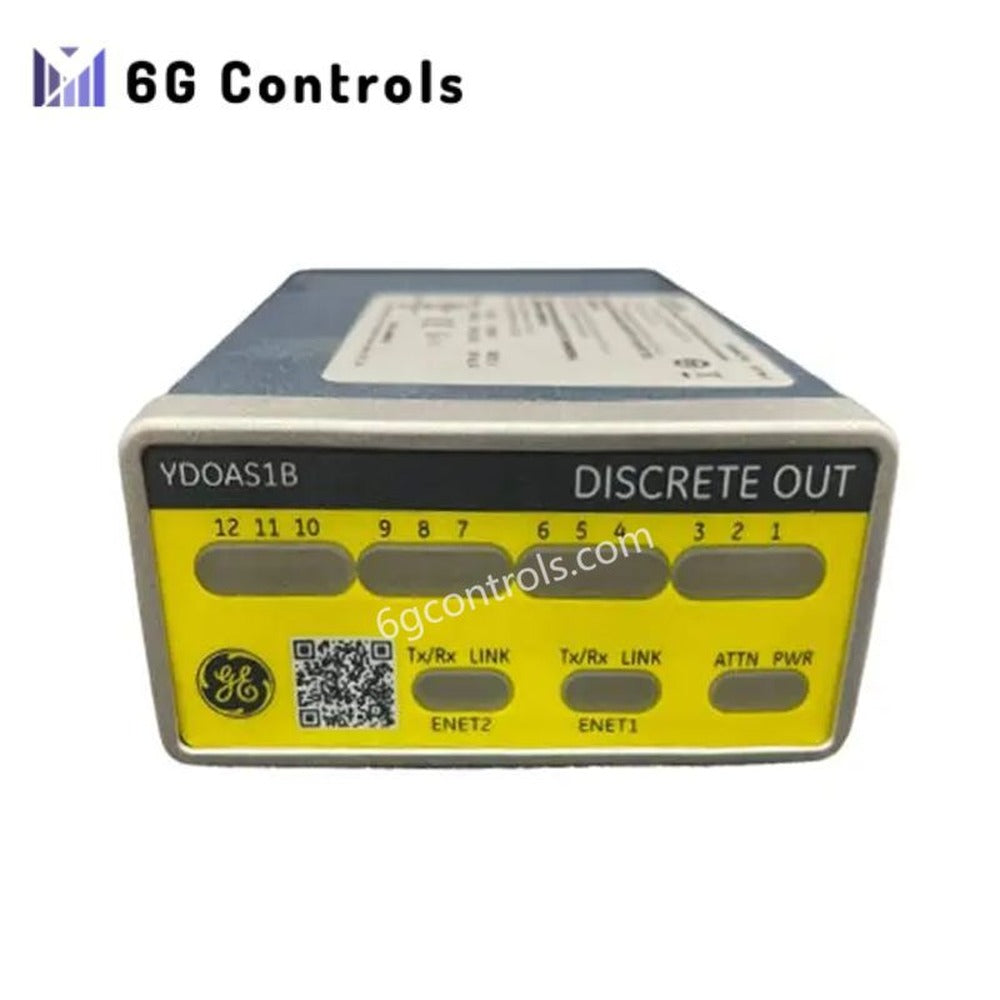

GE IS420YDOAS1B Discrete Output I/O Pack Brand New

Overview

The GE IS420YDOAS1B is a high-performance Discrete Output I/O Pack designed for industrial automation systems. It integrates directly with the GE Mark VIe Control System, providing reliable electrical interface between Ethernet-based control networks and discrete output terminal boards. This module supports 12 discrete outputs and features dual Ethernet ports, diagnostic LEDs, and rugged construction for demanding environments.

Technical Specifications

• Product Type: Discrete Output I/O Pack
• Model Number: IS420YDOAS1B
• Manufacturer: General Electric (GE)
• System Compatibility: GE Mark VIe Control System
• Number of Outputs: 12 discrete outputs
• Communication Interface: Dual Ethernet RJ45 connectors
• Power Input: Three-pin power connector
• Output Connector: DC37-pin connector (connects to terminal board)
• Diagnostic Indicators:
  • 12 yellow LEDs (output relay status)
  • 1 ATTN LED (system diagnostics; red/green, solid/flashing)
• Operating Temperature Range: -40°C to +85°C
• Mounting Type: Panel-mounted or rack-mounted
• Voltage: 24 VDC
• Power Consumption: 5.3 watts (typical)
• Ambient Temperature Range: -40°F to +158°F
• Input Converter Resolution: 16-bit ADC
• Functional Abbreviation: YAIC
