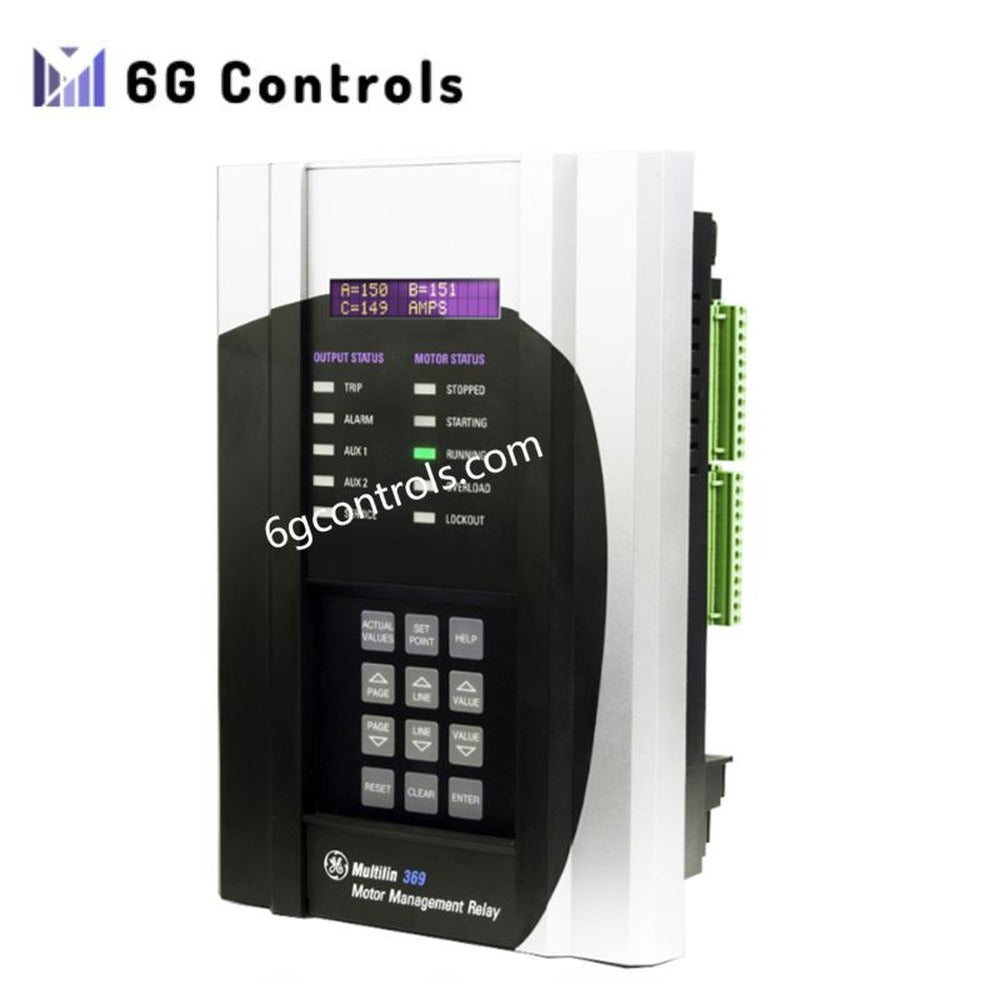

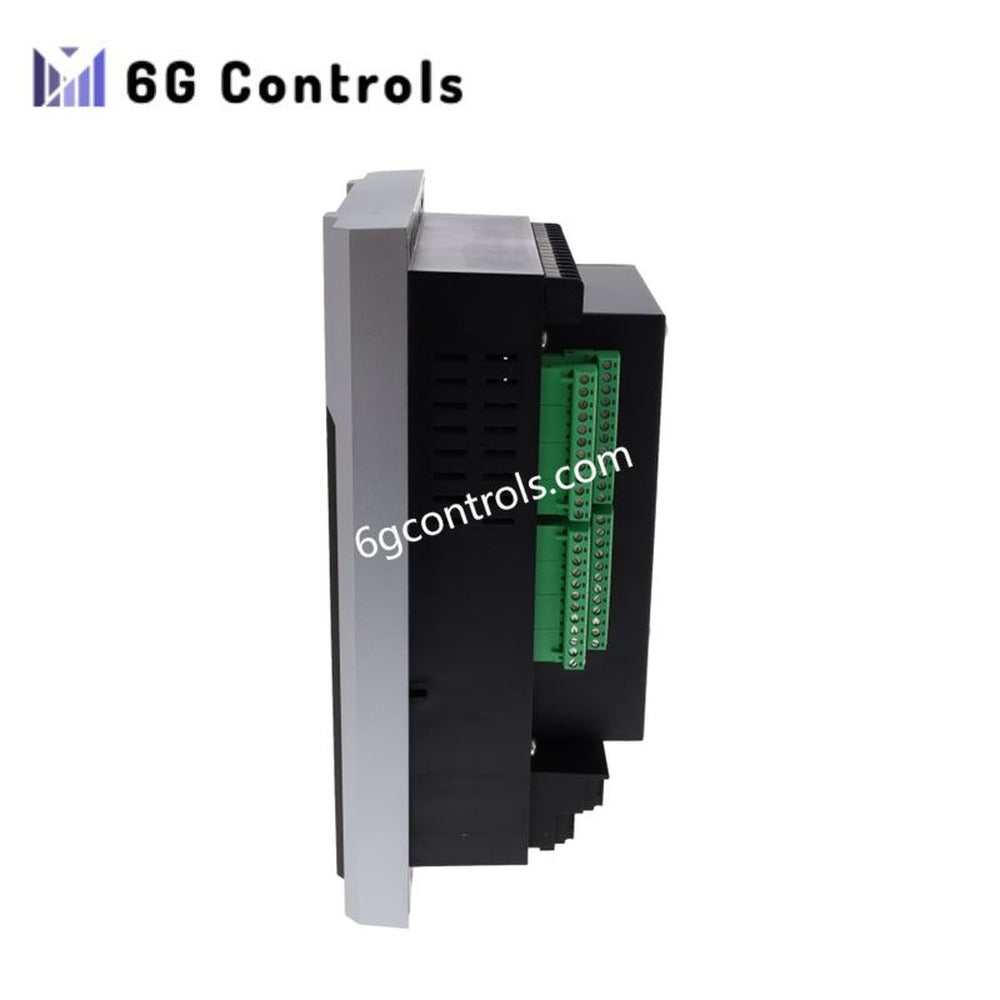

GE Multilin 369-HI-0-B-F-0 Motor Management Relay

11 in stock

Manufacturer: General Electric
Product No.: 369-HI-0-B-F-0
Product Type: Motor Management Relay
Condition: Brand New
Payment: T/T, Western Union
Weight: 3.629 kg
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The GE Multilin 369-HI-0-B-F-0 is a digital motor protection and management relay. It actively protects medium-voltage, three-phase AC motors. This model belongs to GE’s Multilin 369 series. It monitors motor operation, prevents faults, and controls performance. Therefore, it suits manufacturing, utilities, and process industries requiring reliable motor operation. It also adapts to motor behavior using learned inrush currents, cooling rates, and acceleration times.

Technical Specifications

Feature	Description
Model Code	369-HI-0-B-F-0
Control Power	HI: 50–300 VDC / 40–265 VAC
RTD Inputs	0: No optional RTD inputs
Metering Package	B: Includes optional backspin detection with metering
Fiber Optic Port	F: Includes optional fiber optic communication port
Protocol Interface	0: No optional Profibus or DeviceNet interface
Protection Functions	Overload, jam, stall, ground fault, unbalance, undercurrent, thermal protection
Motor Learning	Learns motor inrush current, cooling rates, and acceleration time
Event Recording	Logs up to 512 events with timestamps
Oscillography	Captures waveform data during faults for diagnostics
Communication Protocols	Modbus RTU (standard), optional fiber optic for remote access
User Interface	Front panel keypad/display; EnerVista software for monitoring and configuration
Mounting Options	Panel or rack mount; draw-out chassis available
Phase Current Input	Typically 1 A and 5 A secondary CT inputs
CT Primary Range	1 to 5000 A
Communication Ports	Front RS232, Rear RS485 (typically 3)
Output Relays	Typically 4 relays
Ambient Humidity	Up to 95% non-condensing
Maximum Altitude	2000 m
Ingress Protection	Typically IP50
Display Version	Enhanced
Fuse	3.15 A H 250 V
Input Power	110–250 VDC / 100–240 VAC
