Overview

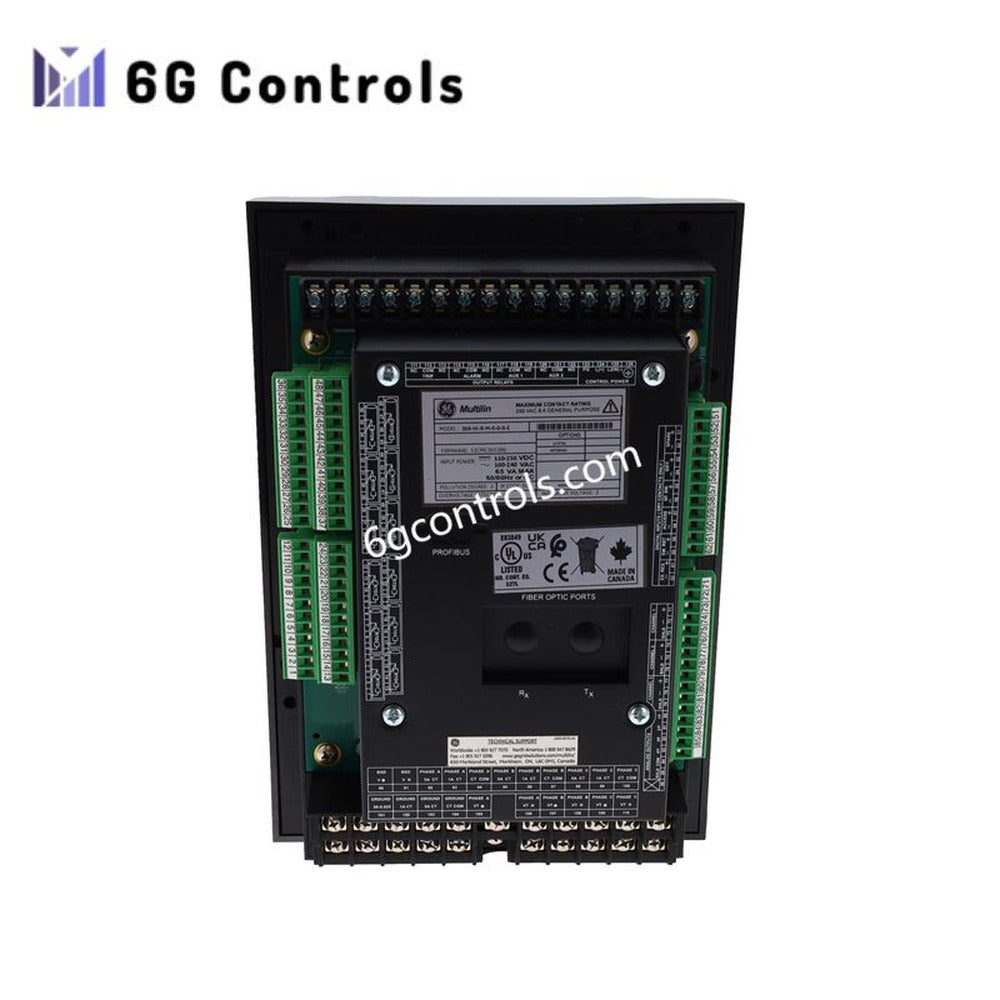

The GE Multilin 369-HI-R-M-0-P-0-E is a digital motor management relay. It actively protects and controls medium-sized AC motors. Additionally, it monitors motor health and integrates with industrial automation systems. It provides advanced diagnostics, real-time metering, and event logging for reliable motor operation.
Technical Specifications
- Model Series: Multilin 369
- Control Power (HI): 50–300 VDC / 60–264 VAC, 50–60 Hz
- RTD Inputs (R): 12 built-in RTD inputs for temperature monitoring
- Metering Package (M): Measures voltage, current, power, energy, and frequency in real-time
- Protection Functions: Overload, jam, stall, ground fault, unbalance, undercurrent, thermal model
- Motor Health Diagnostics (E): Enhanced diagnostics with faceplate reporting
- Communication (P): Profibus protocol for automation integration
- Oscillography: Captures waveform records during trip events (16 cycles, 3 records)
- Event Logging: Stores up to 512 events with timestamps and trip details
- Digital/Switch Inputs: 6 optically isolated inputs
- Ambient Humidity Maximum: Up to 95% non-condensing
- Dimensions: 11.5 in H × 5.5 in W × 8.5 in L
- Display Version: Enhanced
- Fuse: 3.15 A H 250 V
- Input Power: 110–250 VDC / 100–240 VAC
- Phase Current Input: 1 A and 5 A secondary
- Weight: 8 lbs
