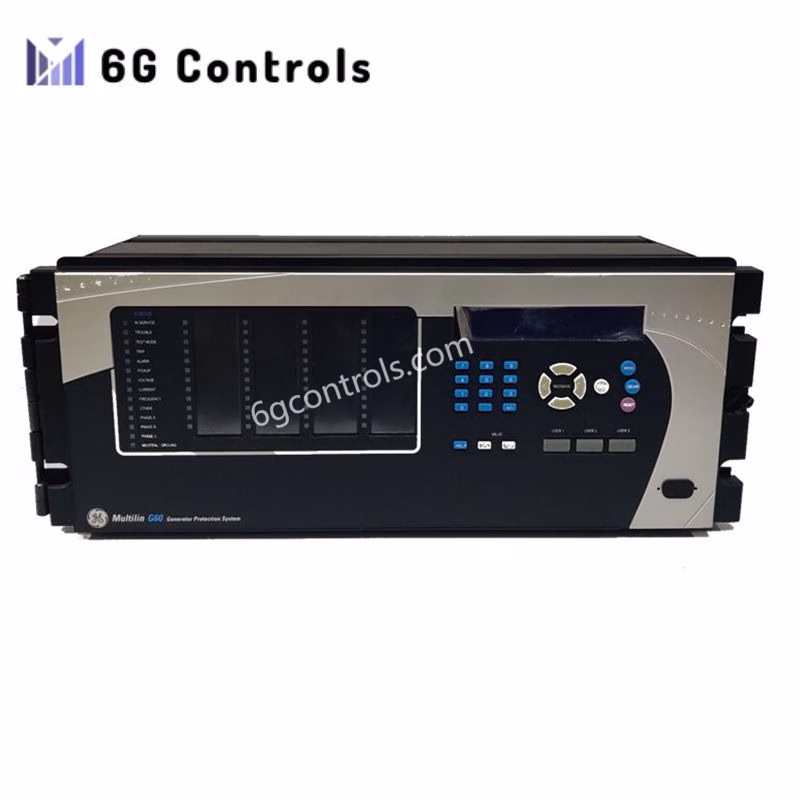

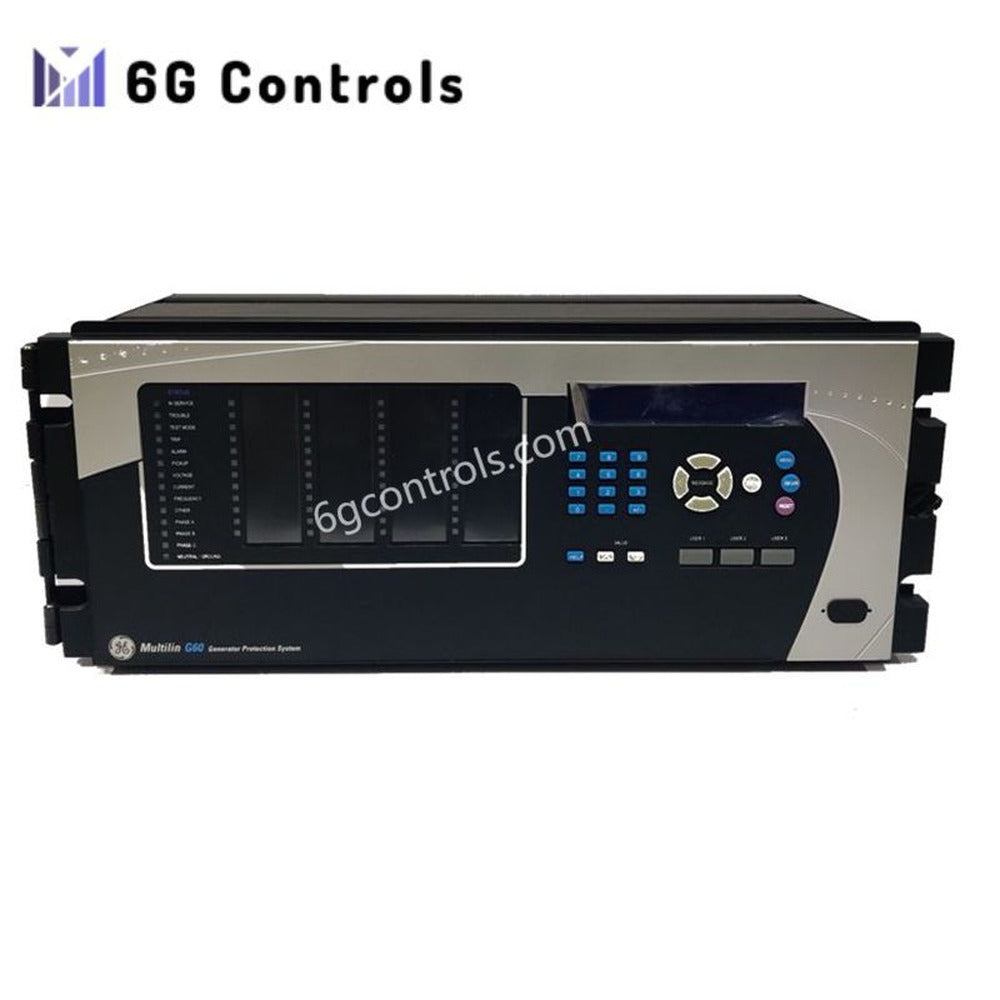

GE Multilin G60U04HCLF8LH6LM8NP6CU5CW5C Generator Protection Relay

Overview

The GE Multilin G60U04HCLF8LH6LM8NP6CU5CW5C is a generator protection relay for medium and large generators. It protects, monitors, and controls generators efficiently. GE designs it for steam, gas, and hydro turbines. The relay ensures safe and reliable generator operation.

Technical Specifications

• Model Number: G60U04HCLF8LH6LM8NP6CU5CW5C
• Type: Generator Protection Relay
• Manufacturer: General Electric (GE)
• Application: Steam, gas, and hydro turbines
• Power Supply: 24V DC or 110-240V AC
• Relay Outputs: Configurable for control applications
• Communication Protocols: Modbus, DNP3, IEC 61850
• Data Logging: Event recording and fault analysis
• HMI: LCD display for real-time monitoring
• Operating Temperature: -40°C to +70°C
• Humidity: 10% to 95% RH, non-condensing
• Shock & Vibration: IEC 60068 compliant
