Overview

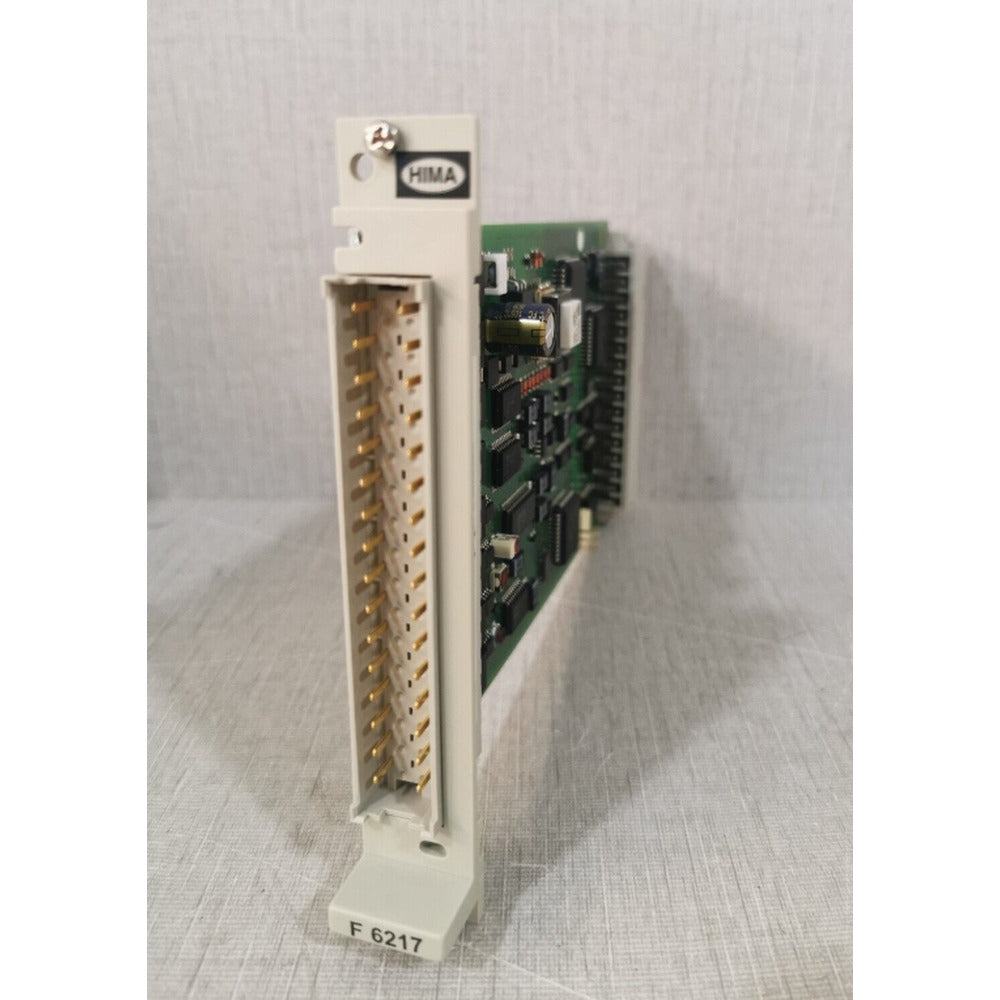

Equipped with a number of safety features including overvoltage protection, short-circuit protection, and undervoltage protection, the HIMA F6217 module is an ideal solution for measuring analog signals in industrial applications. Boasting a wide input range of 0 to 10 V or 4 to 20 mA, this reliable 8-channel analog input module ensures accurate measurements with its 12-bit resolution.
Features
- 8-channel analog input
- Wide input range of 0 to 10 V or 4 to 20 mA
- 12-bit resolution
- Safety features: overvoltage protection, undervoltage protection, short-circuit protection
- Compact and lightweight design
- DIN rail mounting
Technical Specifications
| Specification | Value |
|---|---|
| Number of channels | 8 |
| Input range | 0 to 10 V or 4 to 20 mA |
| Resolution | 12 bits |
| Accuracy | ±0.05% FS |
| Sampling rate | 100 Hz |
| Communication interface | PROFIBUS DP |
| Dimensions | 90 x 90 x 60 mm |
| Weight | 0.3 kg |
Benefits
- Safe and reliable operation
- Wide input range
- High resolution
- Compact and lightweight design
- DIN rail mounting
- PROFIBUS DP communication
Applications
- Process control
- Machine monitoring
- Safety systems
- Environmental monitoring
- Medical equipment
