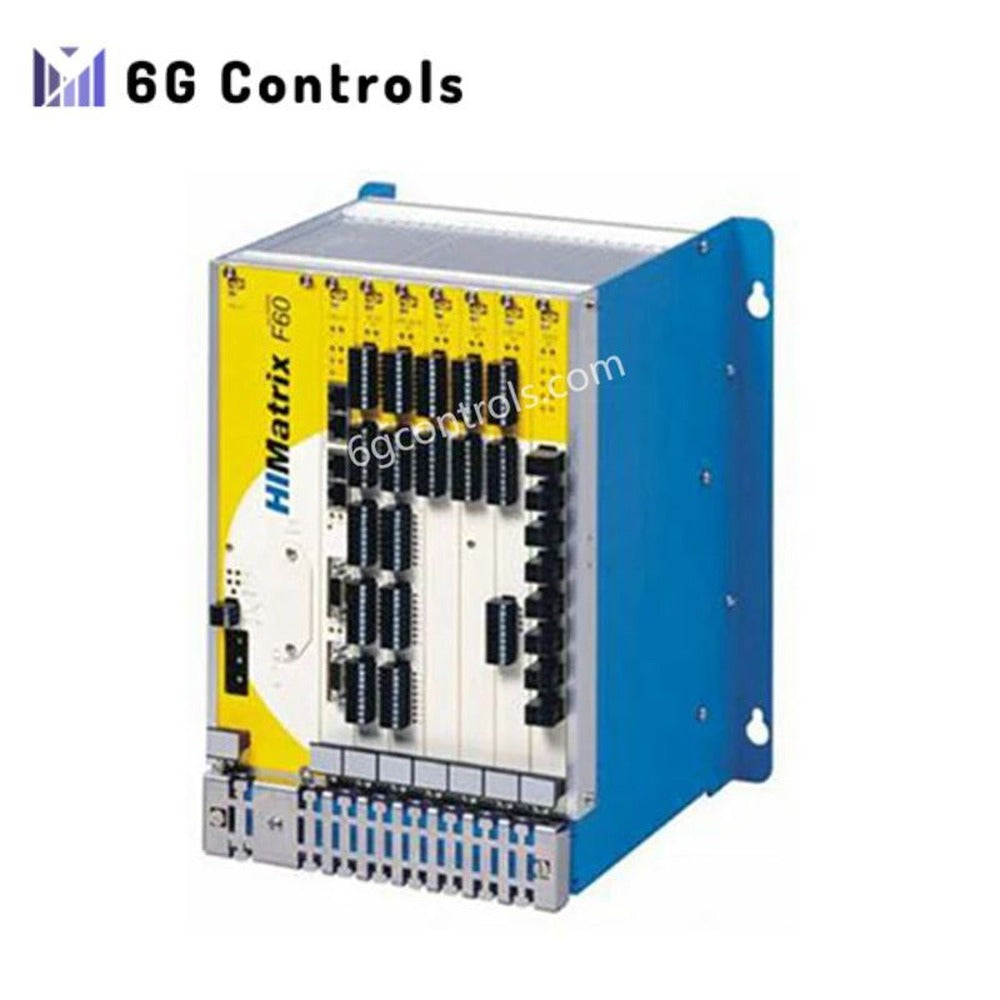

HIMA F60BUS Safety Bus Module for HIMatrix System

Overview

The HIMA F60BUS is essential for high-speed, reliable communication in the HIMatrix safety controller system. It ensures smooth data exchange between the safety controllers and I/O modules in safety-critical applications. Designed for industrial environments, it supports redundant configurations to enhance system stability and availability.

Technical Specifications

Electrical

• Supply Voltage: 24 V DC

• Power Consumption: Maximum 3 W

• Current Consumption: 125 mA at 24 V DC

Communication

• Bus Type: HIMA safety bus

• Data Rate: Up to 500 kbps

• Maximum Modules: Supports up to 16 I/O modules per bus

• Isolation: 500 V DC between bus and power

Physical

• Dimensions: 100 x 30 x 80 mm

• Weight: Approximately 0.15 kg to 0.5 kg (varies by source)

• Mounting: DIN rail or rack-mounted

Environmental Conditions

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 10–90% RH, non-condensing

Safety and Compliance

• Safety Integrity Level: SIL 3 per IEC 61508

• Diagnostic Coverage: >99%
