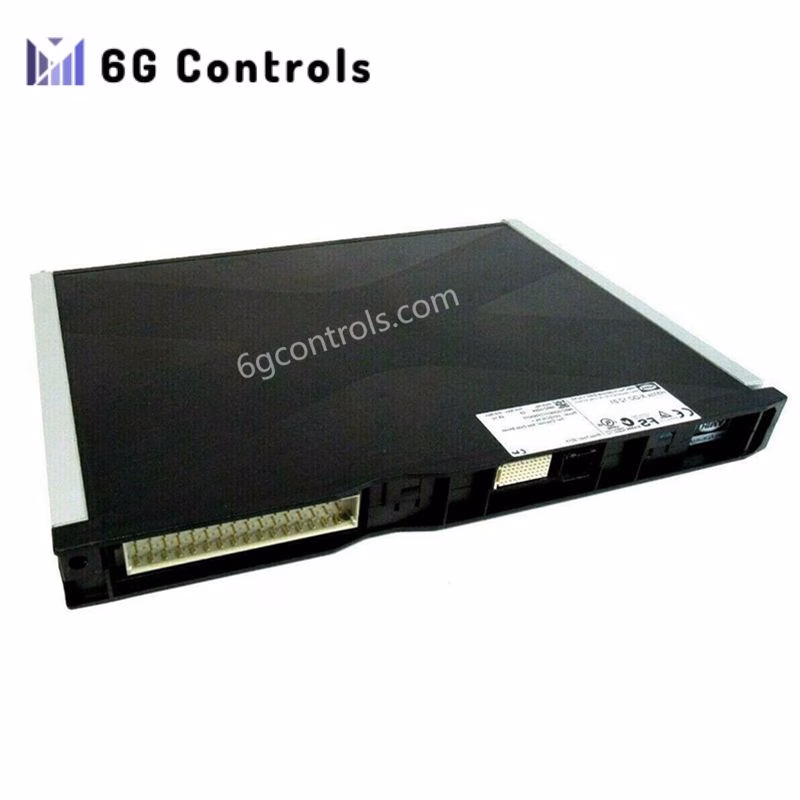

HIMA X-DO 24 01 Digital Output Module Most Favorable

Overview

The HIMA X-DO 24 01 is a digital output module designed for high-integrity automation systems. Engineers use it within the HIMax safety platform to control field devices reliably. It provides precise signal switching, robust output handling, and secure communication.

Technical Specifications

• Product Type: Digital Output Module
• Manufacturer: HIMA
• Model Number: X-DO 24 01
• Number of Channels: 24 digital outputs
• Output Voltage: 24V DC
• Output Current: Up to 500 mA per channel
• Communication Interface: Integrated with HIMax safety system
• Safety Certification: SIL 3 (IEC 61508)
• Operating Temperature: -20°C to +60°C
• Humidity: Up to 95%, non-condensing
