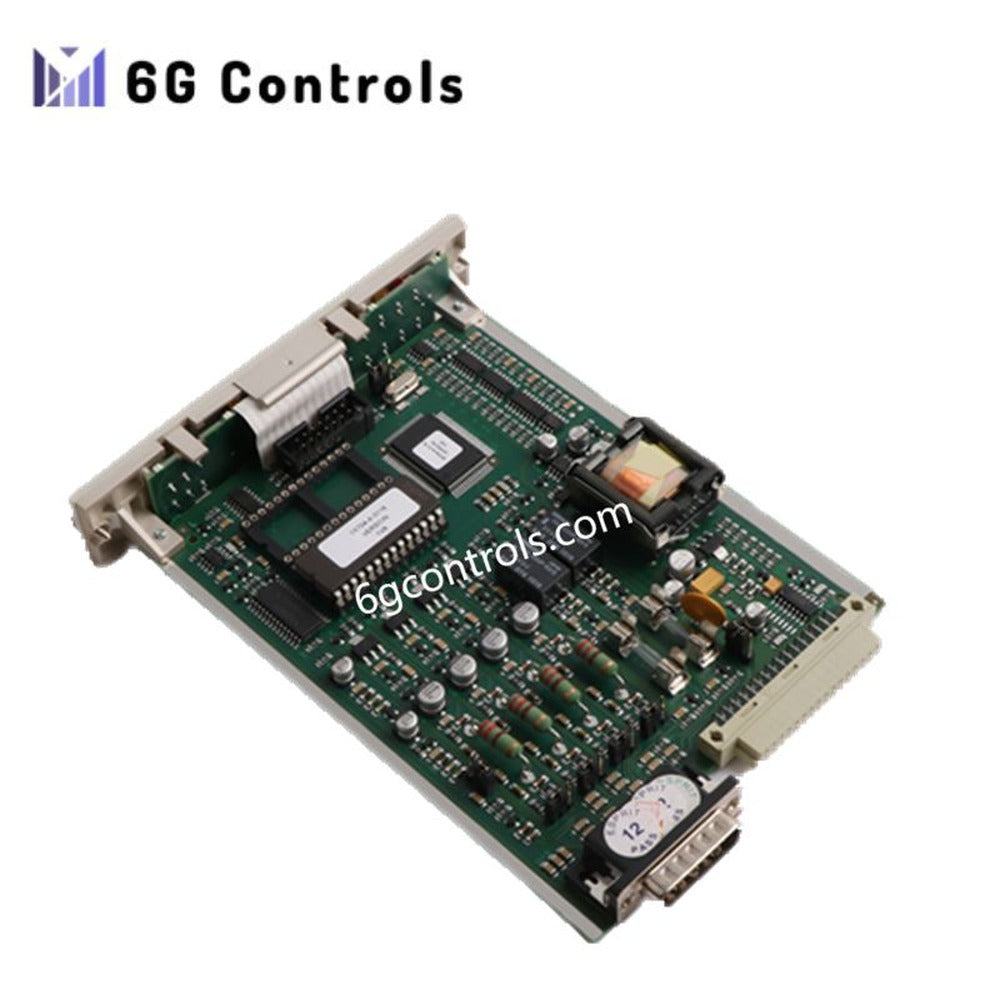

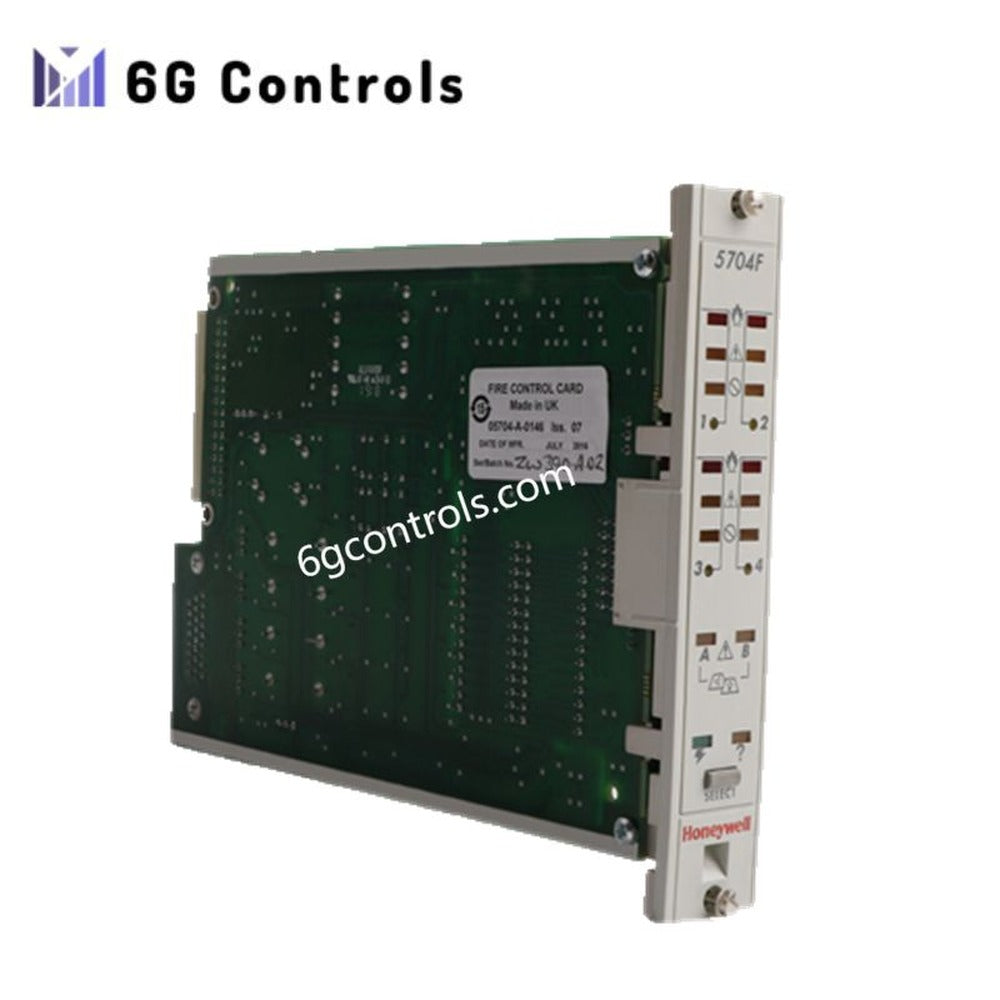

Honeywell 05704-A-0146 5704F Fire Control Card Brand New

13 in stock

Manufacturer: Honeywell
Product No.: 05704-A-0146
Country of origin: USA
Product Type: Industrial Automation
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.16 kg
Dimensions: 17.2 cm x 2.5 cm x 13.2 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Product Overview

The Honeywell 05704-A-0146 5704F Fire Control Card delivers reliable fire detection and alarm control within industrial safety systems. Designed for Honeywell System 57 platforms, it provides precise monitoring of multiple fire zones while supporting configurable relay outputs. Moreover, this module ensures seamless integration with hazardous area installations, enhancing safety and operational reliability. Its compact design and robust construction make it ideal for control room environments requiring high-performance fire protection.

Key Features & Benefits

Monitors 4 independent fire zones with high-resolution detection accuracy.
Provides 2 switched DC outputs for alarm signaling or process control.
Supports 1 single 3-function remote input for flexible control options.
Configurable 16 relay outputs allow tailored system responses.
Operates on a 24V DC nominal supply, compatible with standard system power.
Compact rack-mounted design simplifies installation in System 57 assemblies.
In addition, the module withstands typical indoor control room conditions, ensuring long-term reliability.

Technical Specifications

Feature	Specification
Fire Zone Inputs	4 independent fire zone inputs
Switched DC Outputs	2 outputs for alarms or control signaling
Remote Input	1 single 3-function remote input
Relay Outputs	Up to 16 configurable relay outputs
Power Supply	24V DC nominal
System Bus Voltage	+5V, ±15V DC regulated
AC Input	120/240V AC
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions (LxWxH)	17.2 cm x 2.5 cm x 13.2 cm
Weight	0.16 kg
Mounting	Rack-mounted in local control unit (LCU)

Typical Applications

Industrial fire and gas safety systems, including hazardous area monitoring.
Control rooms in manufacturing plants, oil & gas facilities, and chemical processing.
Integration with Honeywell System 57 for automated safety response and alarm management.
Retrofit or replacement in existing fire control racks to enhance system reliability.

FAQ

Q: Can this card be used outdoors? A: No, the 5704F is designed for indoor control room environments only.

Q: How many relay outputs can be configured? A: The module supports up to 16 configurable relay outputs.

Q: Is the power supply included? A: The card operates on 24V DC nominal; system AC power provides regulated output.

Q: Is the product new or refurbished? A: It is typically available as new or refurbished with a 12-month warranty.

Q: What systems are compatible with this card? A: Compatible with Honeywell System 57 fire and gas control platforms.
