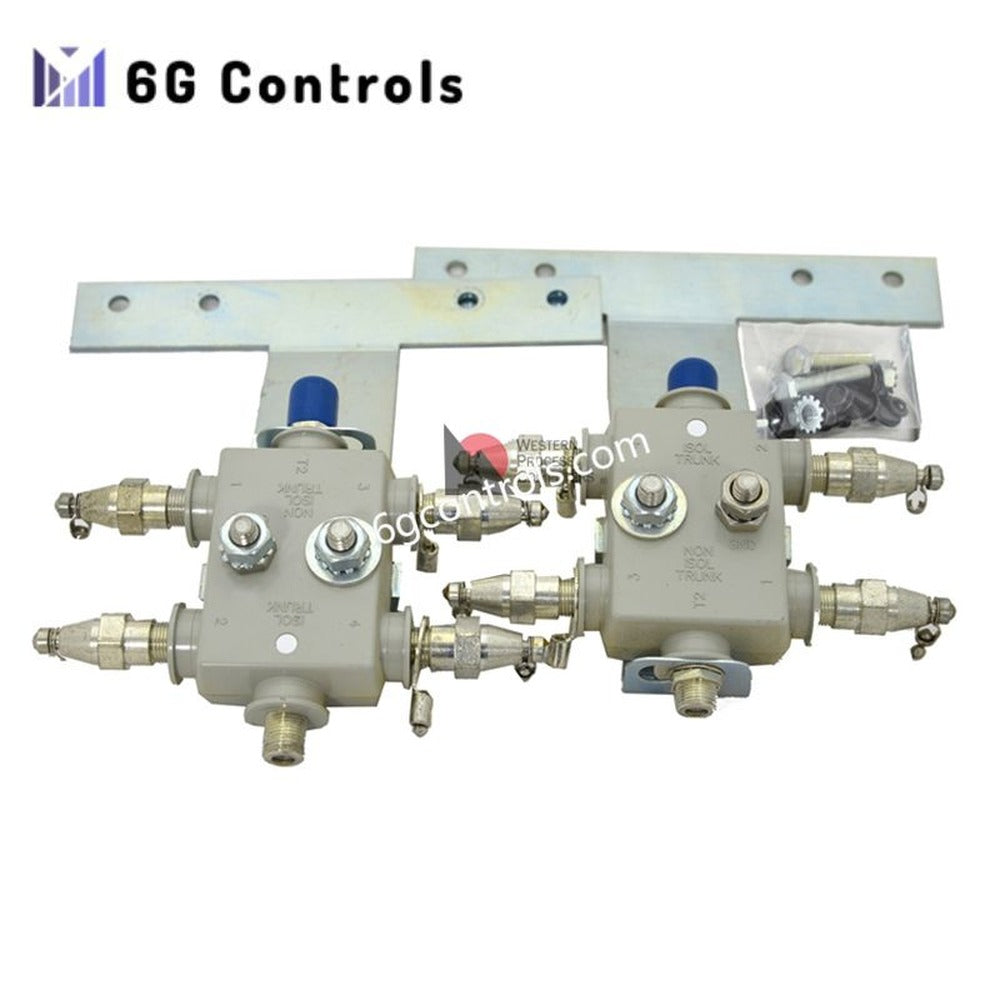

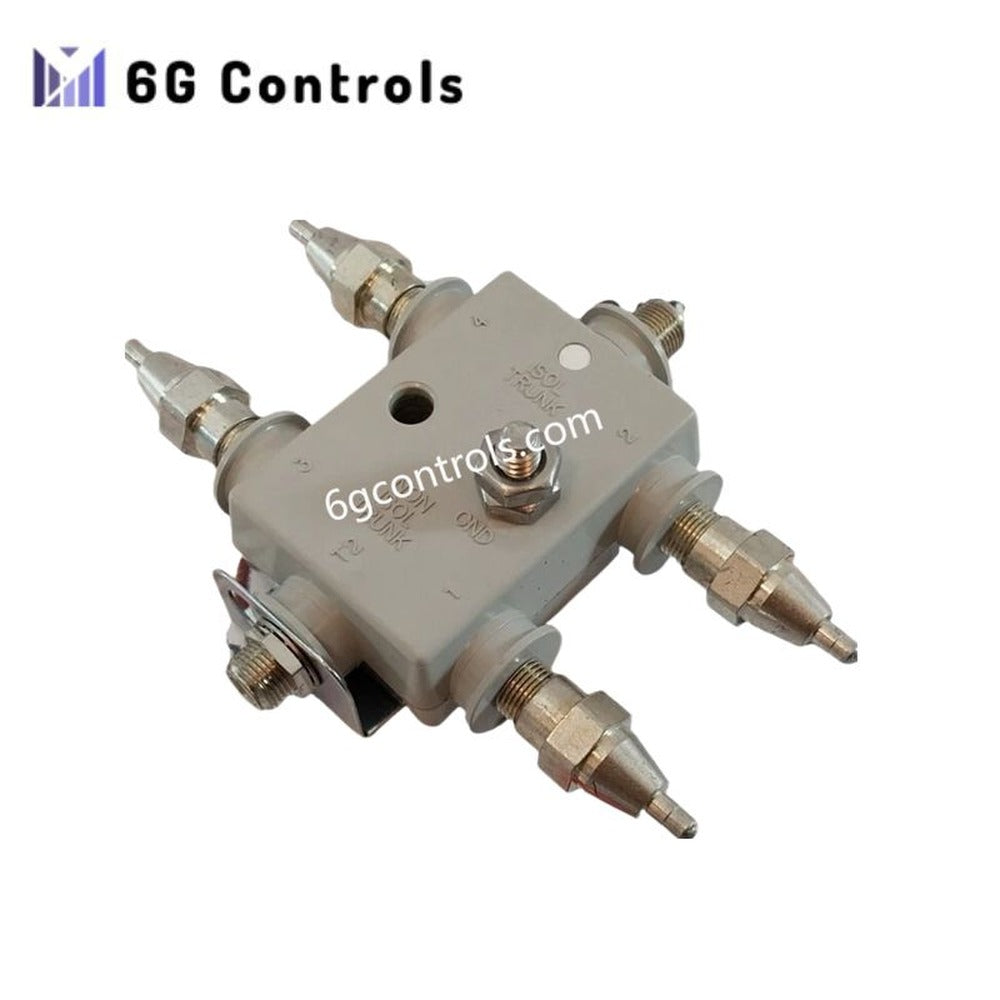

Honeywell 51201395-100 4-Port Tap DCS Module Brand New

Product Overview

The Honeywell 51201395-100 is a high-precision 4-port Tap DCS Module designed for seamless integration into Honeywell’s Universal Control Network (UCN). It reliably captures analog signals from various field instruments, enabling accurate and continuous process monitoring. Moreover, its rugged design ensures stable operation even in demanding industrial environments, such as petrochemical plants and power generation facilities. This module delivers reliable data acquisition while supporting flexible network communication, making it a trusted component for modern industrial automation systems.

Key Features & Functional Highlights

• High-Accuracy Data Acquisition: 16-bit resolution ensures precise signal capture from temperature, pressure, and flow sensors.
• Multi-Signal Support: Compatible with voltage, current, and temperature inputs for diverse process applications.
• Flexible Communication: Supports RS-485 and Ethernet interfaces for easy network integration and remote monitoring.
• Rugged Industrial Design: IP67 rating provides dust-tight, water-resistant protection, allowing safe use in harsh conditions.
• Versatile Mounting Options: Can be installed on panels or racks for optimized system architecture.

Technical Specifications

• Model: Honeywell 51201395-100
• Module Type: 4-Port Tap DCS Module
• System Compatibility: Universal Control Network (UCN)
• Input Channels: 4 analog ports
• Signal Types Supported: Voltage, current, temperature
• Resolution: 16-bit high-resolution data
• Communication Interface: RS-485, Ethernet
• Environmental Rating: IP67 (dust-tight, water-resistant)
• Operating Temperature: –40°C to +85°C
• Power Supply: AC input (exact voltage configurable)
• Dimensions: 100 × 50 × 20 cm
• Weight: 3.8kg
• Mounting: Panel or rack mountable

Typical Applications

• Petrochemical plants for accurate process monitoring and control.
• Power generation facilities for real-time sensor signal acquisition.
• Industrial automation systems requiring high reliability and precision.
• Integration with Honeywell UCN networks for centralized process control.

FAQ

Q: Which signals can the Honeywell 51201395-100 capture? A: It supports voltage, current, and temperature signals from industrial sensors.

Q: Can this module operate in extreme environments? A: Yes, its IP67 rating and –40°C to +85°C range ensure reliable operation.

Q: What communication options are available? A: The module supports RS-485 and Ethernet interfaces for flexible integration.

Q: How many input channels does it support? A: It has 4 analog input channels for diverse process measurements.

Q: Is the module suitable for rack installation? A: Yes, it can be mounted on panels or racks based on system design.
