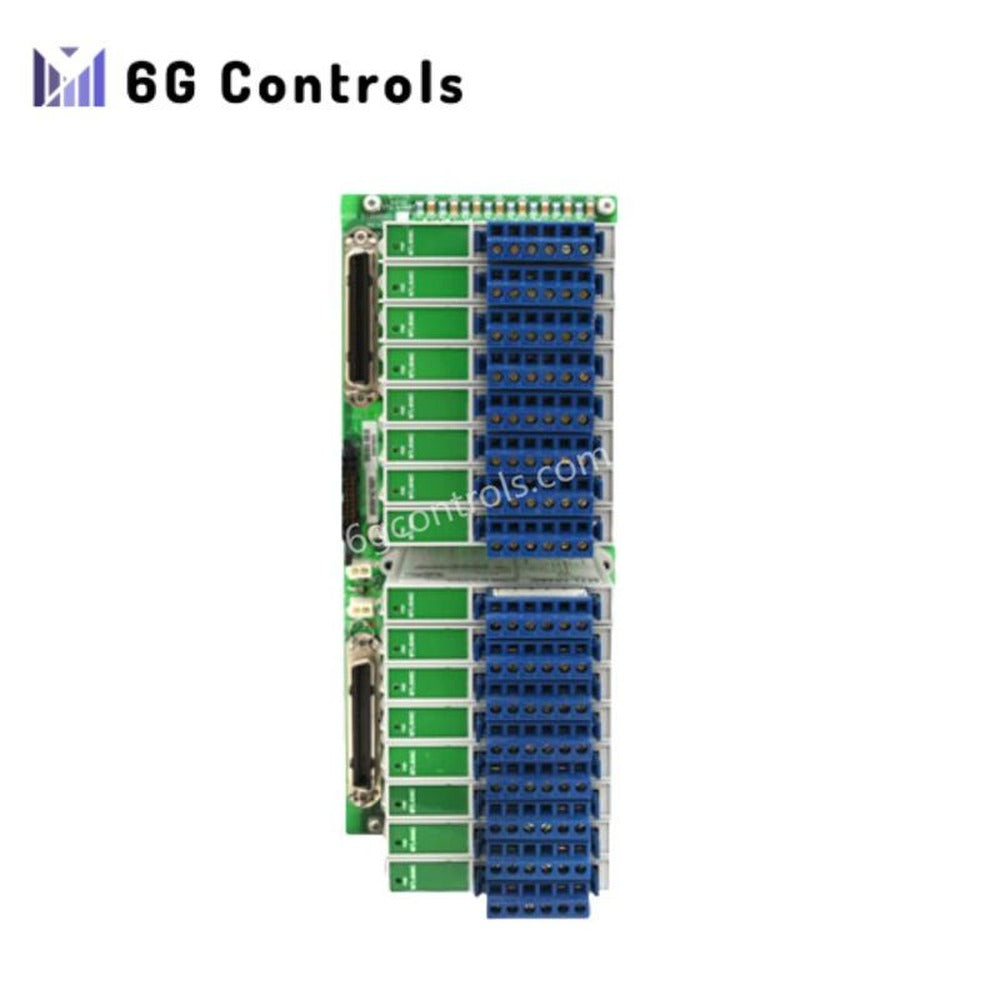

Honeywell 51309540-175 Analog Output Field Termination Assembly

Overview

The Honeywell 51309540-175 is a 16-channel analog output field termination assembly. It delivers accurate 4–20 mA signals to actuators in industrial automation. The unit supports HART devices through built-in filters and a dedicated connector for HART multiplexers. It provides galvanic isolation to protect signals from electrical noise. This rack-mounted assembly operates in harsh environments with temperatures from -10°C to +55°C.

Technical Specifications

• Type: Analog Output Field Termination Assembly
• Output Channels: 16
• Output Signal: 4–20 mA
• Load Support: ≤ 870 ohms
• HART Compatibility: Includes filters for HART devices
• Connectivity: Connector for HART multiplexer system
• Isolation: Galvanically isolated outputs
• Mounting: Rack-mounted
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +70°C
