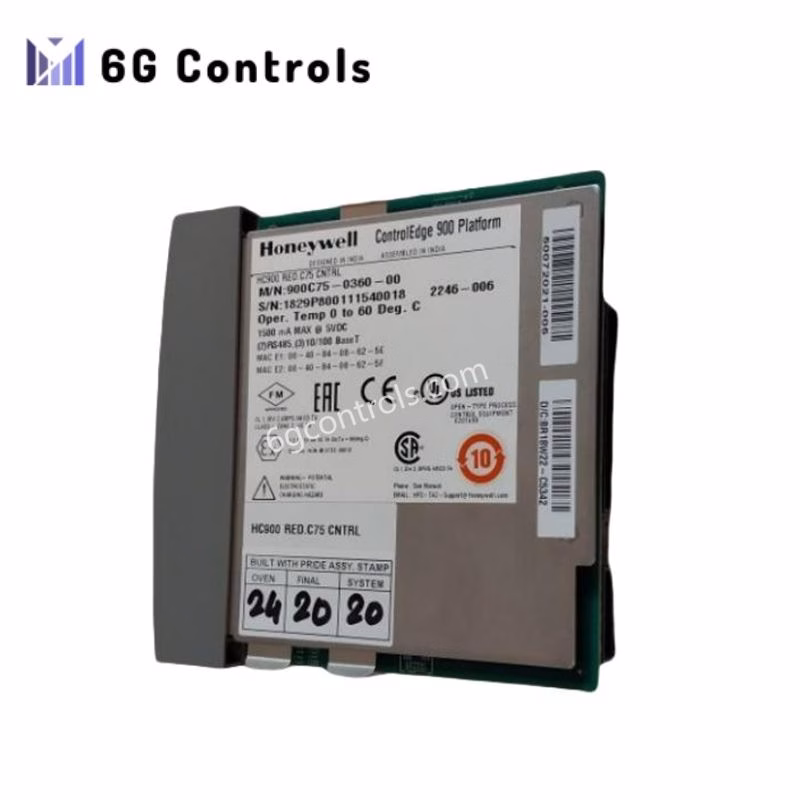

Honeywell 900C75-0560 CPU Module for ControlEdge HC900

Overview

The Honeywell 900C75-0560 CPU module powers the ControlEdge HC900 system. It provides advanced process and logic control for industrial automation. This module supports flexible communication protocols and scalable I/O configurations. It also performs reliably in harsh environments.

Technical Specifications

• Product Type: CPU Module
• Manufacturer: Honeywell
• Model Number: 900C75-0560
• System Compatibility: ControlEdge HC900
• Communication Protocols: Ethernet, Modbus
• I/O Capacity: Configurable with analog and digital I/O modules
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH, non-condensing
• Mounting: Standard 35mm wide DIN rail
• Vibration:
  • 5Hz to 15.77Hz: 2.03mm amplitude (peak to peak)
  • 15.77Hz to 250Hz: 1.0g acceleration
• Acceleration Sweep Rate: 0.33 octave per minute
• Tray and End Caps Material: Polyvinyl Chloride (PVC)
• Flammability Rating: UL94-V0
