Overview

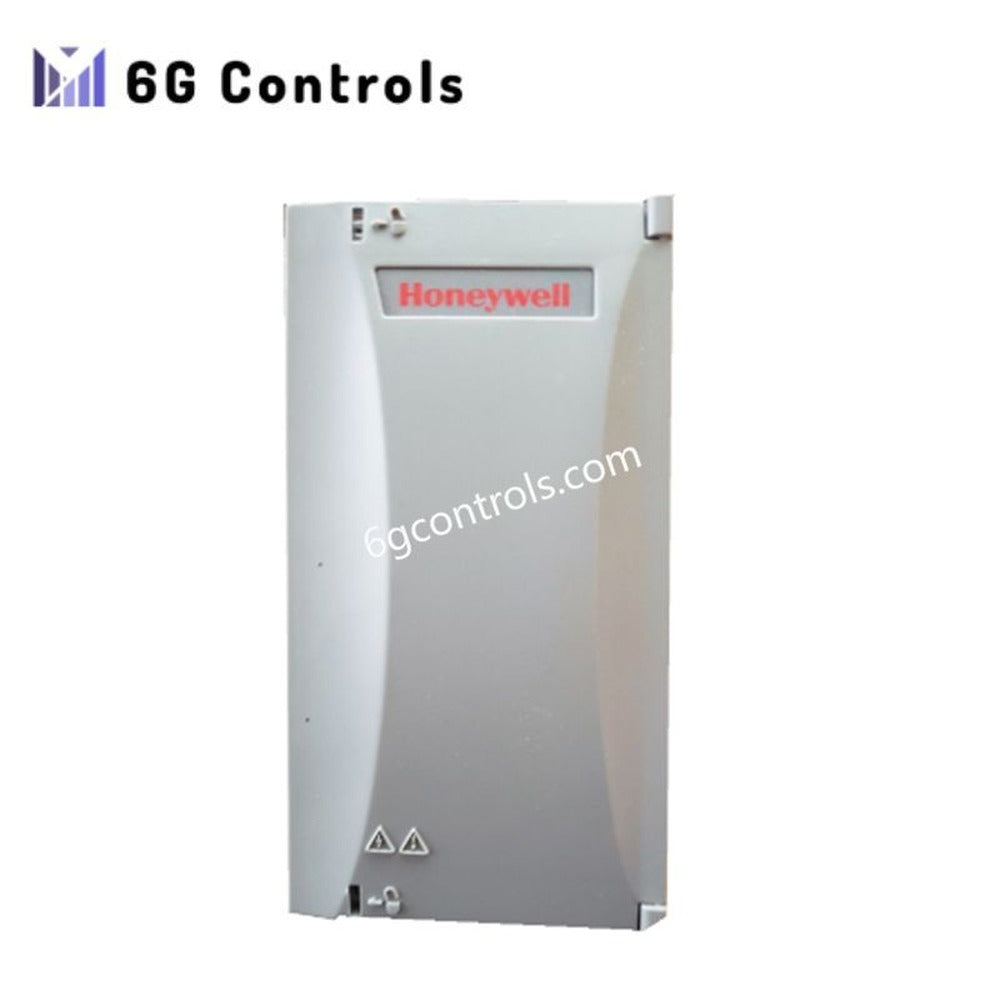

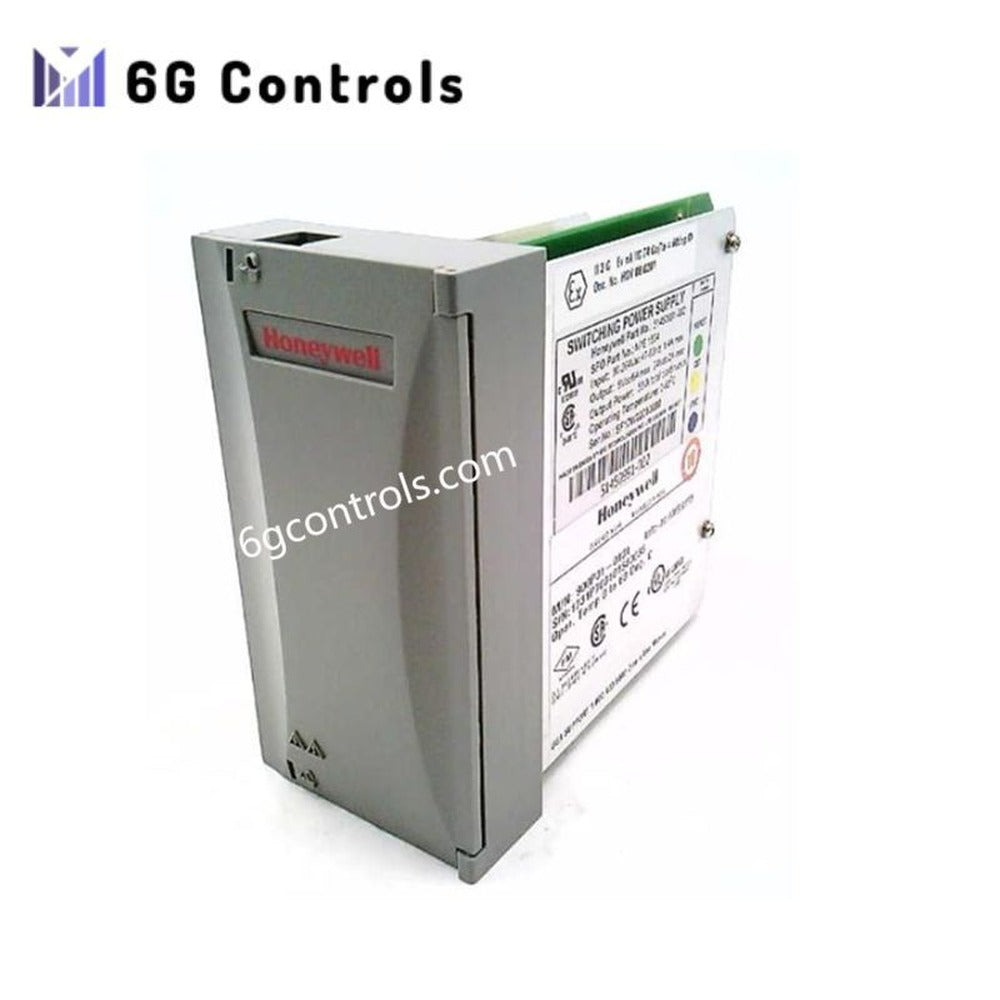

The Honeywell 900P01-0101 is a reliable power supply module designed for the ControlEdge HC900 automation platform. It delivers consistent and regulated DC power to controllers and I/O modules, ensuring uninterrupted operation in demanding industrial environments. Compact and rack-mountable, the module includes robust protection features to safeguard connected devices.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 100–240V AC, 47–63 Hz (Universal) |
| Output Voltage | 24V DC regulated, 5V DC |
| Output Current | Up to 5 A |
| Power Capacity | 60 W |
| Efficiency | >85% |
| Inrush Current | 7 A peak-to-peak for 150 ms @ 240V AC |
| Internal Fuse | Non-replaceable |
| Terminals | Screw type, Wire gauge #12–22 AWG |
| Test Jacks | 5V DC and 24V DC |
| Hold-Up Time | 20 ms @ 115V AC, full load |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 105 × 115 × 90 mm |
| Weight | 3.00 lbs |
| Mounting | Rack-mounted in HC900 system |
Key Features
- Stable Power Output: Ensures continuous 24V DC supply for HC900 controllers and I/O modules
- Universal AC Input: Supports 100–240V AC power sources
- Industrial-Grade Reliability: Designed for continuous operation in harsh environments
- Compact Rack Design: Fits directly into HC900 racks
- Built-In Protection: Safeguards against over-voltage, over-current, and short circuits
Typical Applications
Ideal for industrial process automation where reliable DC power is critical. Commonly used in:
- Oil & Gas systems
- Chemical processing plants
- Power generation facilities
- Manufacturing automation
Supports single or redundant controller racks with local or remote I/O modules.
FAQ
Q: Can the 900P01-0101 power a redundant controller rack?
A: Yes, it supplies 24V and 5V DC for redundant controllers and remote I/O configurations.
Q: Does it have a replaceable fuse?
A: No, the internal fuse is non-replaceable and designed to protect the power supply and connected loads.
Q: Does it require extra installation space?
A: No, the module is compact and designed to mount directly into the HC900 system rack.
