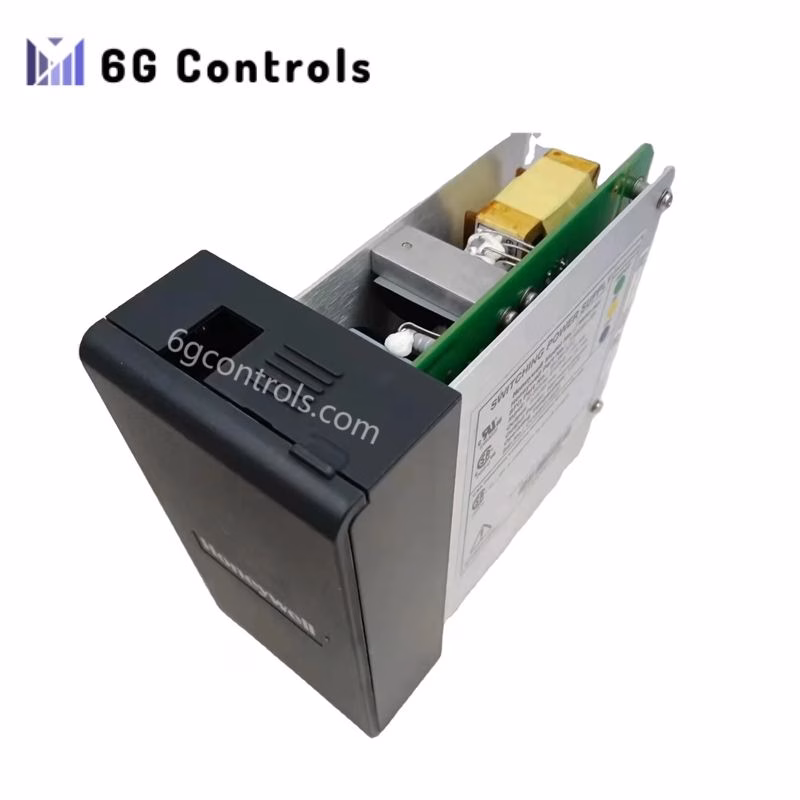

Honeywell 900P01-0401 51450991-006 AC Power Supply Module

Overview

The ​Honeywell 900P01-0401 51450991-006 is an industrial-grade switching power supply module. It provides regulated DC power to Honeywell’s ControlEdge HC900 controllers and Safety Manager systems. This compact, reliable unit supports demanding automation environments and ensures consistent system performance.

Technical Specifications

Manufacturer: Honeywell
Model: 900P01-0401 51450991-006
Alternate Part Number: 51450991-006
Type: AC Power Supply Module

Input

• Voltage Range: 90–264V AC
• Frequency: 47–63Hz
• Current: 1.4A maximum

Output

• Voltage:
  • 5V DC at 6A max
  • 24V DC at 2A max
• Total Continuous Output Power: 58W (sometimes listed as 60W)

Environmental

• Operating Temperature: 0°C to 60°C
• Mounting: DIN rail or panel mount
• Dimensions: 1.5 in x 5.5 in x 5.8 in (3.8 cm x 14.0 cm x 14.7 cm)
• Weight: 12 oz (0.3 kg)

Safety & Compliance

• Approval: SIL2 compliant
• Use Case: Designed for ControlEdge HC900 and Safety Manager systems
