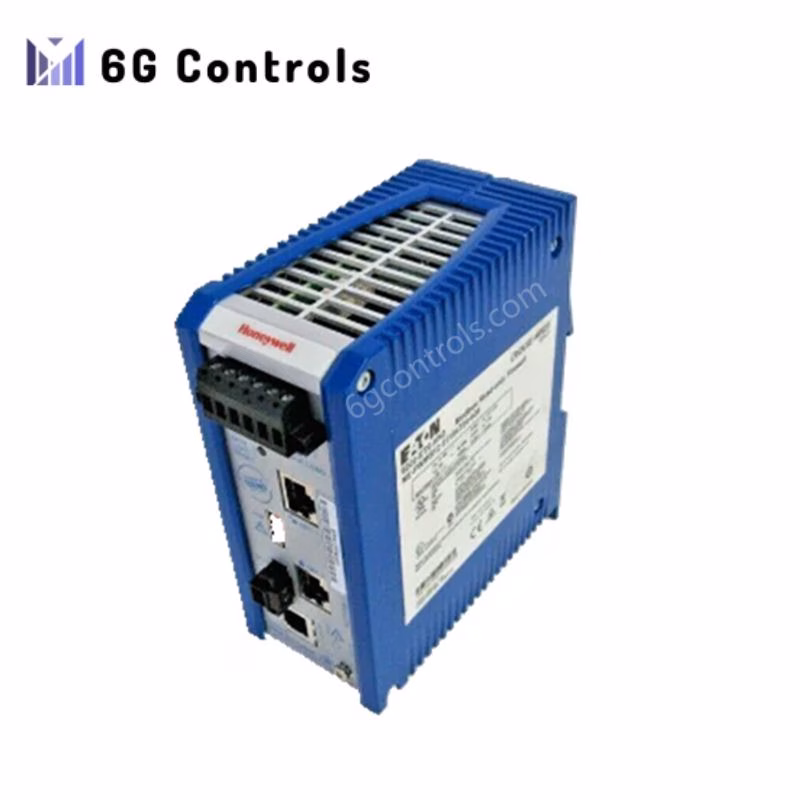

Honeywell 9202-ETS-MM-SC Industrial Security Appliance

Overview

The Honeywell 9202-ETS-MM-SC is an industrial security appliance built for SCADA and process control networks. It offers robust protection by combining firewall technology, protocol filtering, and secure communications. Engineers can use it to isolate critical assets, monitor network activity, and enforce cybersecurity policies. The device supports both multimode fiber interfaces and operates in extreme industrial conditions. Additionally, it integrates easily with Tofino software for centralized management and configuration.

Technical Specifications

• Model: 9202-ETS-MM-SC
• Manufacturer: Honeywell
• Function: Network security appliance for industrial automation systems

Ethernet Interfaces:

• Net 1: 100BASE-FX (Multimode Fiber)
• Net 2: 100BASE-FX (Multimode Fiber)

Additional Interfaces:

• USB: 1 x USB socket for configuration
• Digital Input: 1 x 2-pin terminal block
• Signaling Contact: Max. 60V DC / 30V AC (SELV), 1A max

Network Media Support:

• Twisted Pair (TP): Up to 100 meters
• Multimode Fiber (MM): 50/125 μm, up to 5000 meters
• Singlemode Fiber (SM): 9/125 μm, up to 30 km

Power Requirements:

• Voltage Input: 12–48V DC or 24V AC (redundant supported)
• Power Consumption: 5 Watts

Software and Security:

• Management Tool: MTL Tofino Configurator (TC)

Environmental:

• Operating Temperature: -40°C to +70°C
