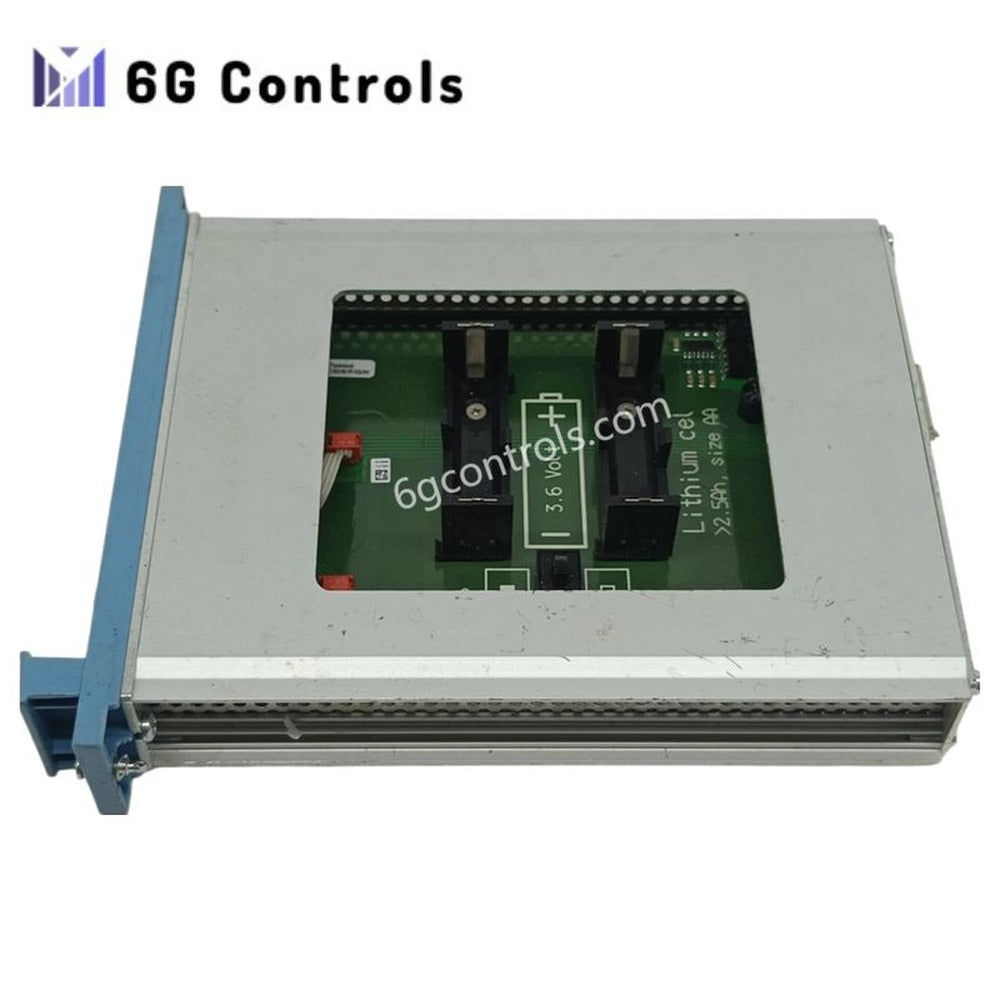

Honeywell BKM-001 Battery and Key Switch Module Brand New

Overview

The Honeywell BKM-001 is a Battery and Key Switch Module. It integrates with Honeywell’s Safety Manager SC architecture. This module provides reliable backup power and secure access control. It ensures continuous operation and protects critical control functions.

Technical Specifications

• Battery Type: Lithium-thionyl chloride (SAFT LS14500CFG)
• Battery Voltage: 3.6 V nominal
• Battery Capacity: Greater than 2 Ah
• Battery Backup Time: Approximately 3 months
• Recommended Battery Replacement: Every 5 years or after substantial discharge
• Operating Temperature: -5°C to +70°C (23°F to 158°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 10% to 95% (non-condensing)
• 24 V Supply Voltage: 24 VDC ±15% to +30%
• 24 V Supply Current: Maximum 20 mA, typically 7 mA
• 5 V Supply Voltage: 5 VDC ±10%
• 5 V Supply Current: Maximum 10 mA
• Output Voltage: 14 to 31 VDC
• Output Resistance: Approximately 2 × 1.1 kΩ (parallel)
• Short Circuit Proof: Continuous
• Dimensions (H × W × D): 176 × 35.2 × 212 mm
• Weight: 0.5 kg
