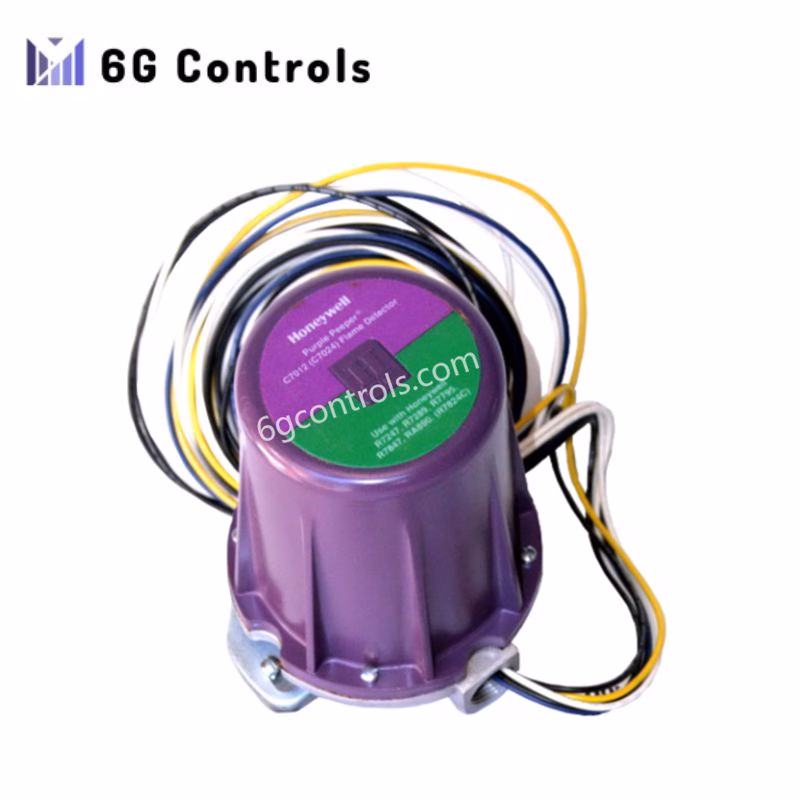

Honeywell C7012E1104 Ultraviolet Flame Detector Brand New

Overview

The Honeywell C7012E1104 is a self-checking ultraviolet flame detector. It continuously monitors flames in industrial burners. The detector enhances safety by sensing ultraviolet radiation from combustion. It fits gas, oil, or coal-fired burners and reduces false shutdowns with its reliable design.

Technical Specifications

Product Type: Ultraviolet Flame Detector
Manufacturer: Honeywell
Model Number: C7012E1104
Operating Voltage: 120 VAC
Power Consumption: 7.0 W
Temperature Range: -20°F to 175°F (-29°C to 79°C)
Mounting Orientation: Horizontal, vertical, or any angle
Housing: NEMA 4-rated enclosure for indoor/outdoor use
Viewing Window Pressure Rating: 20 psi
Self-Checking Mechanism: Dynamic self-checking with oscillating shutter
Compatible Burner Controls: Works with Honeywell Flame Safeguard controls and amplifiers
Explosion-Proof Rating: Available in C7012C/F models for hazardous locations
Mounting: 3/4 in. NPT threaded conduit fitting
Includes: Cast case and cover
Frequency: 50 Hz or 60 Hz
