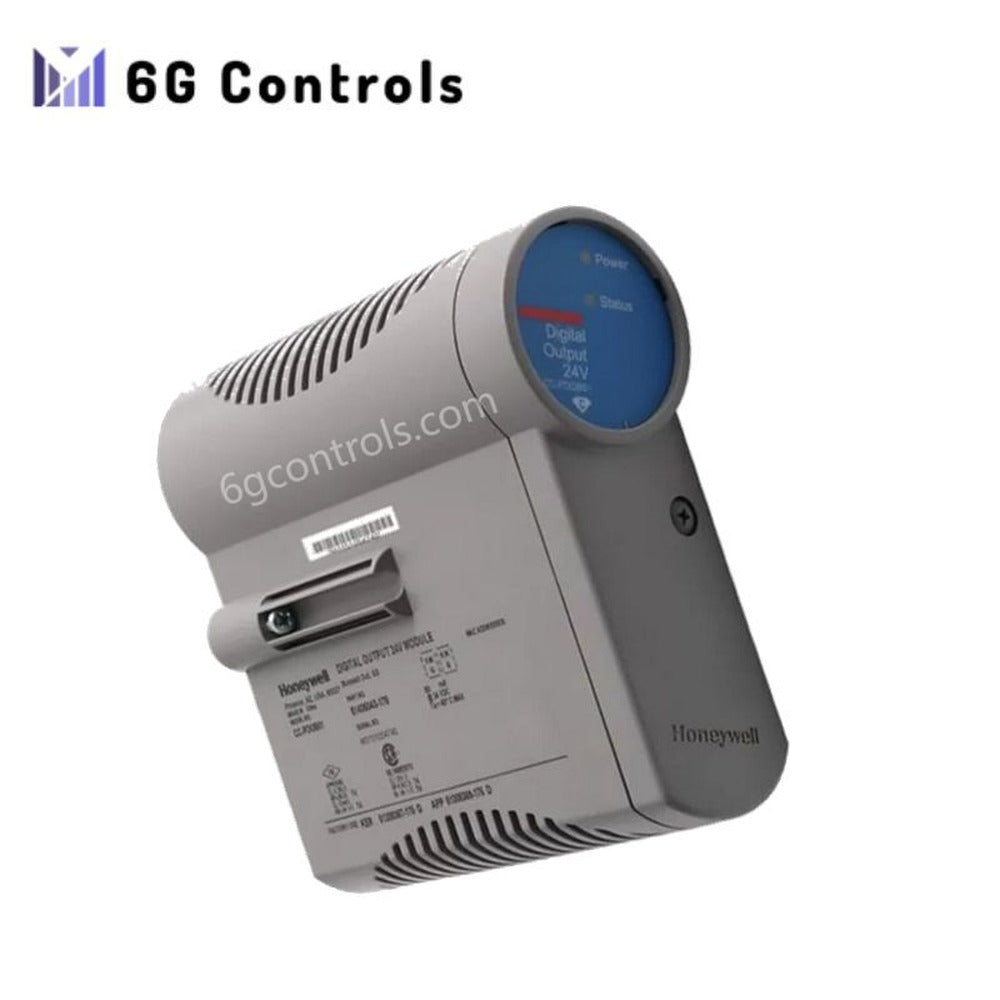

Honeywell CC-PAIX01 51405038-275 Analog Input Module

Overview

The CC-PAIX01 is a high-level analog input module for Honeywell’s Experion Process Knowledge System (PKS). It accurately reads voltage, current, temperature, and pressure signals from field devices. Engineers use this module to support intelligent device communication and improve system responsiveness. It suits hazardous and harsh industrial environments, offering both durability and precision.

Technical Specifications

• Model: CC-PAIX01
• Part Number: 51405038-275
• Module Type: High-Level Analog Input
• Number of Channels: 16
• Supported Signal Types: Voltage, current, temperature, pressure
• Input Ranges: 0–20 mA, 4–20 mA, and others based on signal type
• Accuracy: ±0.1% of full scale
• Resolution: 16 bits
• Input Scan Rate: 50 ms
• Input Impedance (Voltage): >10 MΩ
• Maximum Normal Mode Input: Up to 30 VDC (differential)
• Crosstalk: -60 dB (DC to 60 Hz)
• CMRR: 70 dB (DC to 60 Hz)
• NMRR: 19 dB at 60 Hz
• Communication Protocol: HART
• Power Supply: 24 VDC (±10%)
• Operating Temperature: -40°C to +85°C
• Mounting: DIN rail
