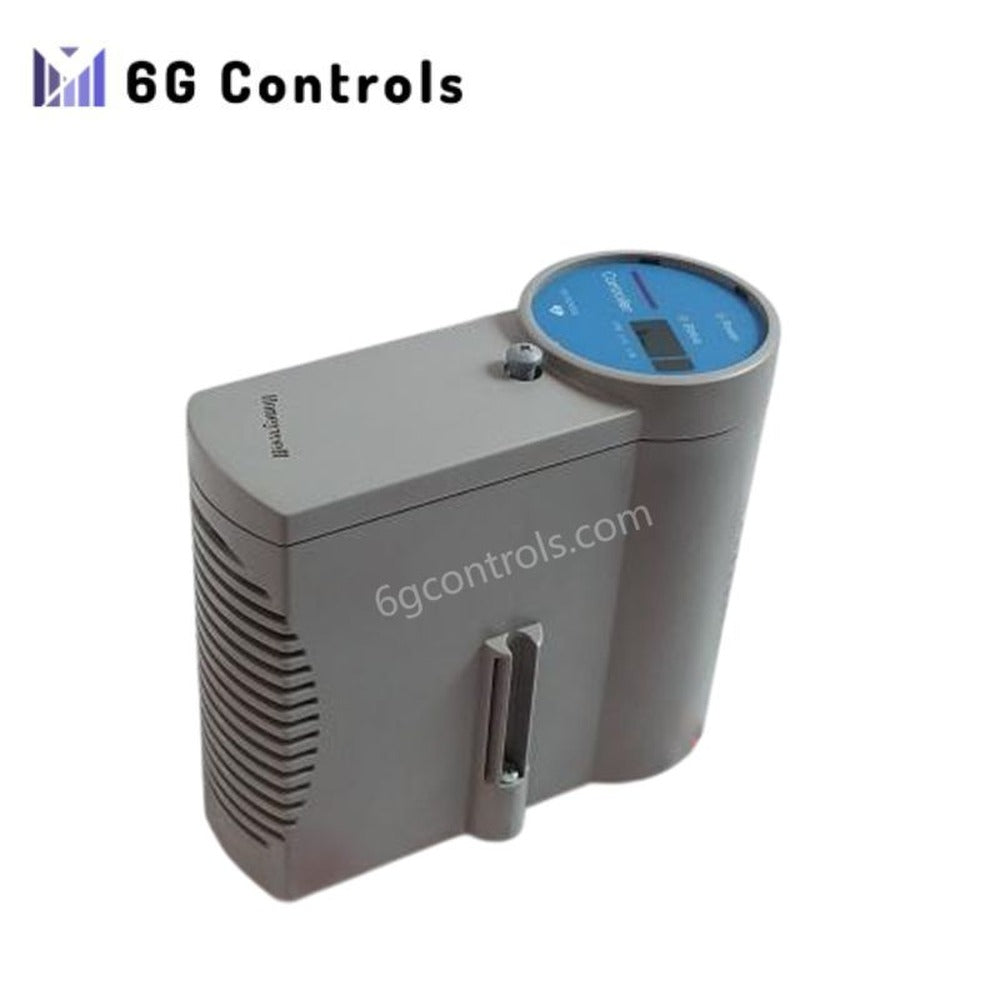

Honeywell CC-PCNT02 51454551-275 C300 Controller Module

Overview

The Honeywell CC-PCNT02 51454551-275 is a C300 Controller Module built for industrial automation. It offers fast, reliable control performance in demanding environments. Honeywell designed this model to replace the older CC-PCNT01 in both new systems and upgrades. It supports extended functionality firmware, enabling advanced features like EIM and Profit Controller integration. The module connects through the Control Firewall (CF9), which allows up to four C300 controllers to communicate over Ethernet.

Technical Specifications

• Product Type: C300 Controller Module
• Model Number: CC-PCNT02 51454551-275
• Manufacturer: Honeywell

Electrical Specifications

• Input Voltage: 24V DC
• Output Voltage: 0–10V DC

Memory

• SRAM: 128KB
• Flash Memory: 2MB

I/O Capabilities

• Digital I/O Points: 64
• Analog I/O Points: 16

Environmental Ratings

• Operating Temperature: 0°C to 55°C
• Extended Operating Range: -40°C to +85°C (hardware capable)
• Storage Temperature: -40°C to 70°C
• Humidity: 10% to 95%, non-condensing
• Protection Grade: IP65

Networking

• C300 Connectivity: Ethernet via Control Firewall (CF9)
• Max C300 Connections: 4 units

Physical Characteristics

• Dimensions: 19.1 cm × 18.8 cm × 6.5 cm
• Weight: 0.35 kg
