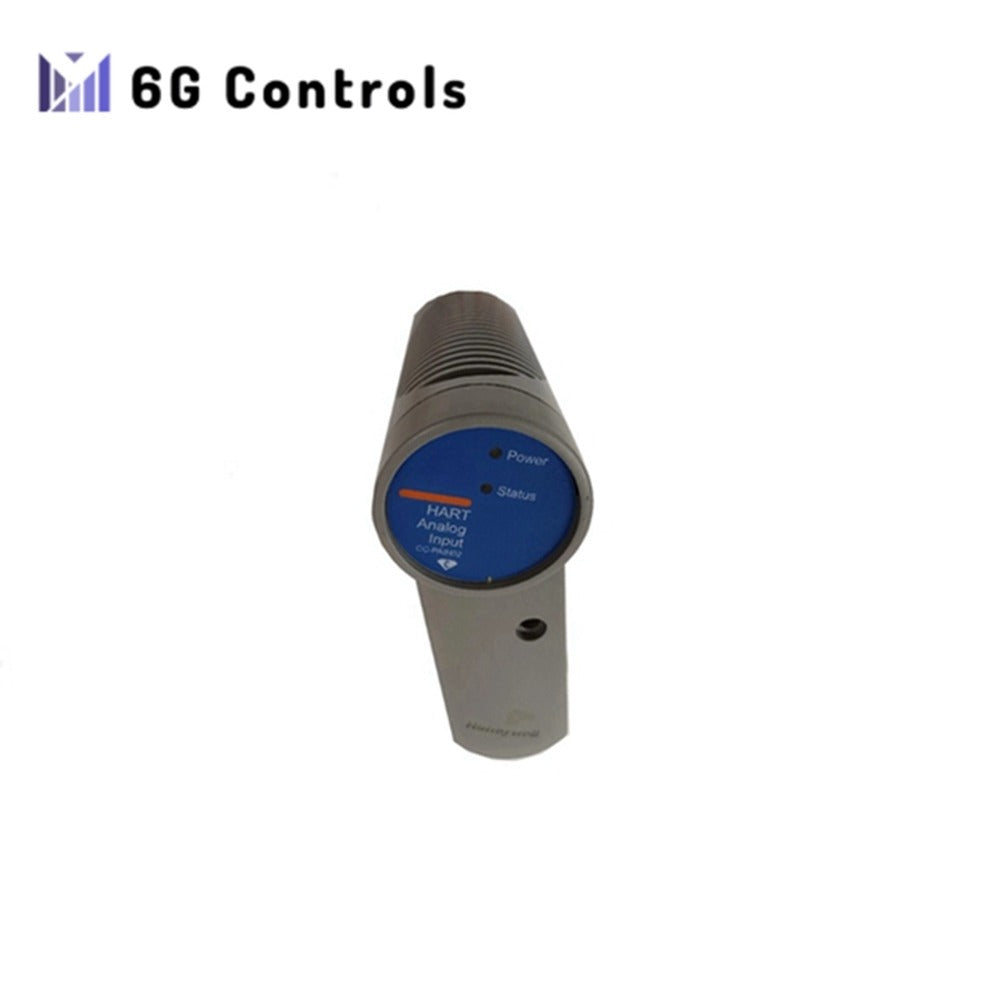

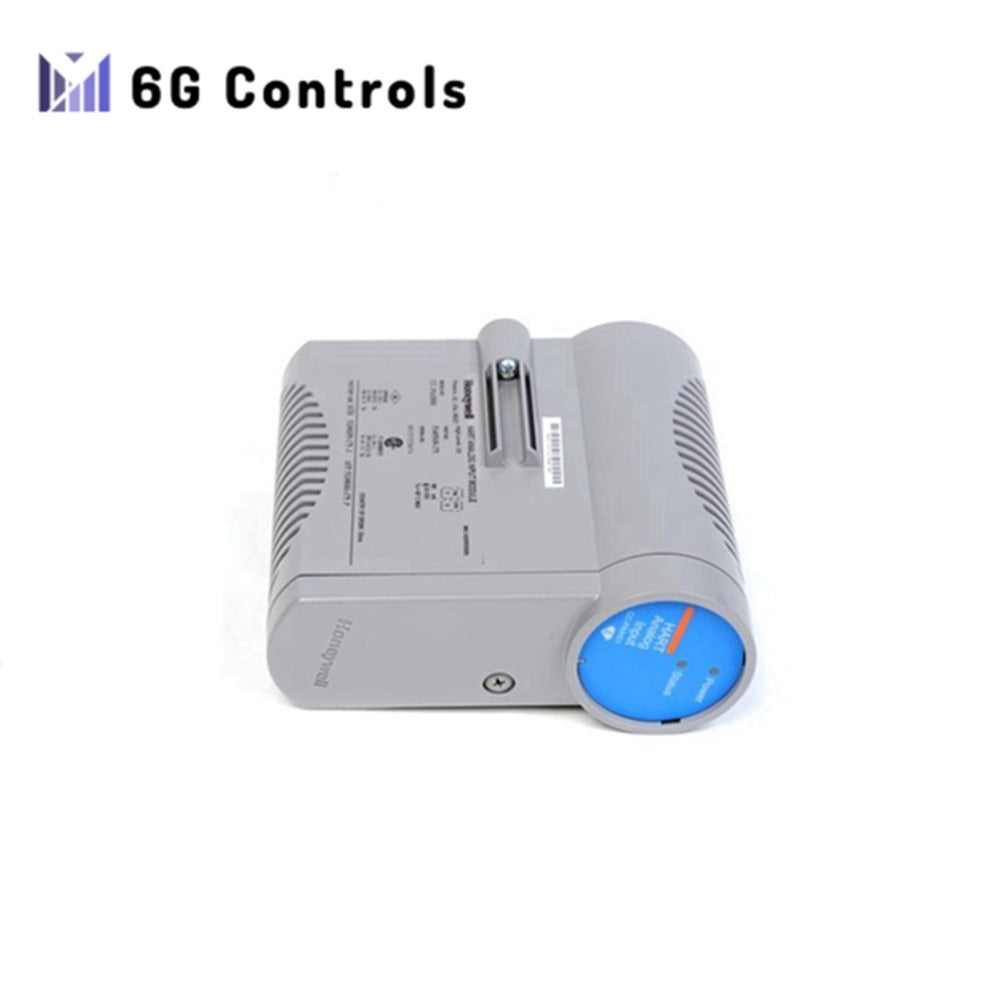

Honeywell CC-PUIO01 51454205-175 Universal I/O Module

Overview

The Honeywell CC-PUIO01 51454205-175 operates as a Universal I/O Module for Honeywell’s C300 system. It supports high-accuracy analog input functions and HART communication. Users can configure channels flexibly, making it ideal for diverse industrial automation tasks. The module ensures reliable performance across a wide temperature range.

Technical Specifications

• Product Type: Universal I/O Module
• Manufacturer: Honeywell
• Model Number: CC-PUIO01 51454205-175

Input Configuration

• Input Type: Current (2, 3, or 4-wire devices)
• Channels: Up to 32 per module
• Open Wire Detection: Available for selected channels

Signal Conversion and Range

• A/D Resolution: 16-bit for precise readings
• Input Range: 0–20 mA or 4–20 mA
• Input Impedance: 250 Ω nominal
• Maximum Input Voltage: +36 VDC to -1.1 VDC

Performance and Filtering

• Scan Rate: 50 ms per channel
• Normal Mode Rejection: 12 dB at 60 Hz
• Filter Type: First-order low-pass, 16 Hz cutoff
• Crosstalk: 60 dB isolation between channels

Accuracy and Reliability

• Standard Accuracy: 0.1% of full scale (at 23.5 ± 2°C)
• Wide Temp Accuracy: 0.17% (-40 to +70°C)
• Transmitter Power Limit: 24 mA max current limit
