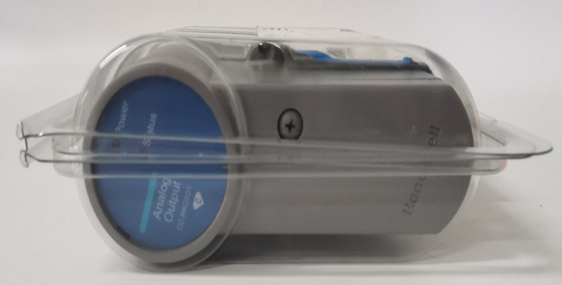

Honeywell CC-TAON11 51308353-175 Analog Output Module

Honeywell CC-TAON11 modules and gateways serve as the physical connection between an automation system and the process when used with the C300 Controller. Input/Output Modules and field terminations are combined in the same area. The Input/Output Modules are plugged into Input/Output Termination Assemblies to eliminate the need for a separate chassis to hold the electronics assemblies.

C300 Controller

The C300 Controller is constructed using the Series C form factor, employing an Input Output Termination Assembly (IOTA) and an electronics module that mounts and connects to the IOTA. One C300 Controller contains all of the control functionality and the communications functions with plug-in modules. The C300 Controller can operate in both non-redundant and redundant configurations. Redundant operation typically involves a second identical controller and connecting cables. The C300 Controller is connected to the associated I/O hardware by a pair of I/O Link Interface cables. The table below identifies the C300 Controller components and its associated components. The C300 Controller supports non-redundant and fully redundant operation. Redundancy is built into the controller, so adding another controller and a redundancy cable creates a redundant controller pair. Note: The 'CC' designation on the model number indicates that the printed wiring boards are conformally coated for additional protection from the environment (CU = uncoated).

Analog Output/HART Output Module (16pt):

• Supports both standard 4-20mA DC outputs and HART transmitter outputs.
• Supply Rating: 0.46A @ 24VDC

Manufacturer’s Declared Parameters

Input/Output Models:

• CC-PAOH01 - High-Level Analog Output with HART
• CU-PAOH01 - High-Level Analog Output with HART

IOTA Models:

• CC-TAOX01 (Non-Redundant 6")
• CU-TAOX01 (Non-Redundant 6")
• CC-TAOX11 (Redundant 12")
• CU-TAOX11 (Redundant 12")

Output Type:

• 4-20 mA
• Output Channels: 16
• Output Ripple: < 100 mV peak-to-peak at power line frequency, across 250 Ω load
• Output Temperature Drift: 0.005% of Full Scale/°C
• Output Readback Accuracy: ±4% of Full Scale
• Output Current Linearity: ± 0.05% of Full Scale nominal
• Resolution
• Calibrated Accuracy: ± 0.05% of Full Scale
• ± 0.35% of Full Scale (25oC) including linearity
• Directly Settable Output Current Range: 0 mA, 2.9 mA to 21.1 mA
• Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC): 800 ohms
• Maximum Output Compliant Voltage (24 V supply = 22 VDC through 28 VDC): 16 V
• Maximum Open Circuit Voltage
• Response Time (DAC input code to output)
• Gap (0 mA) of Output to Field on Switchover: 22 V
• Settles to within 1% of final value within 80 ms
• 10 ms maximum (applies to Redundancy only)

For more information, please refer to the PDF：CC-TAOX11
