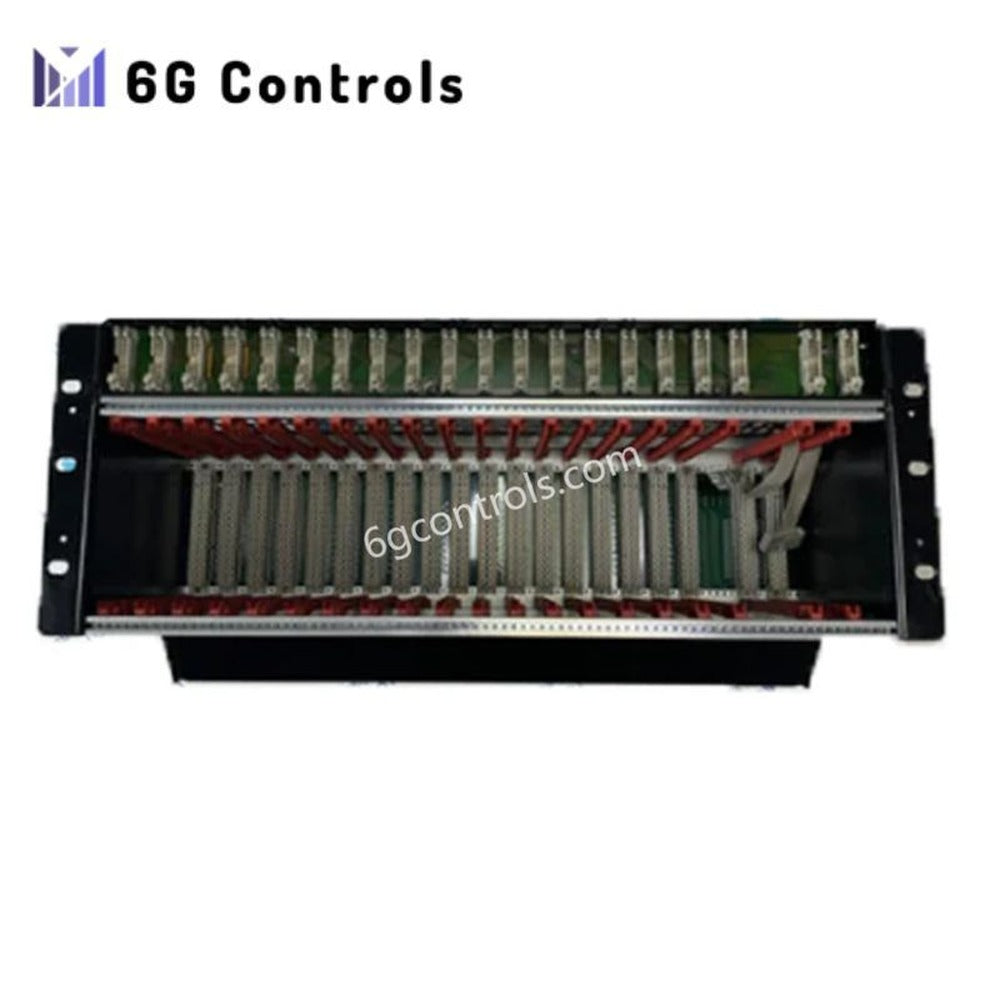

Honeywell FC-CPCHAS-0002 Industrial Control Chassis

Overview

The Honeywell FC-CPCHAS-0002 is a high-reliability industrial control chassis. It supports redundant configurations in Safety Manager systems. Honeywell designed it to provide structural integrity, secure access, and integrated communication.

Technical Specifications

• Product Type: Industrial Control Chassis
• Manufacturer: Honeywell
• Model Number: FC-CPCHAS-0002
• Supported Controllers: Up to four FS-CP controller modules
• Construction: Rugged steel housing
• Integrated Features: Built-in power supply and backplane
• Security: Lockable front door prevents unauthorized access
• Power Consumption:
  • 5V-1: 0.05 A
  • 5V-2: 0.05 A
• Dimensions:
  • Height: 177 mm (7 in)
  • Width: 482.6 mm (19 in)
  • Depth: 280 mm (11 in)
• Weight: 5.8 kg
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
