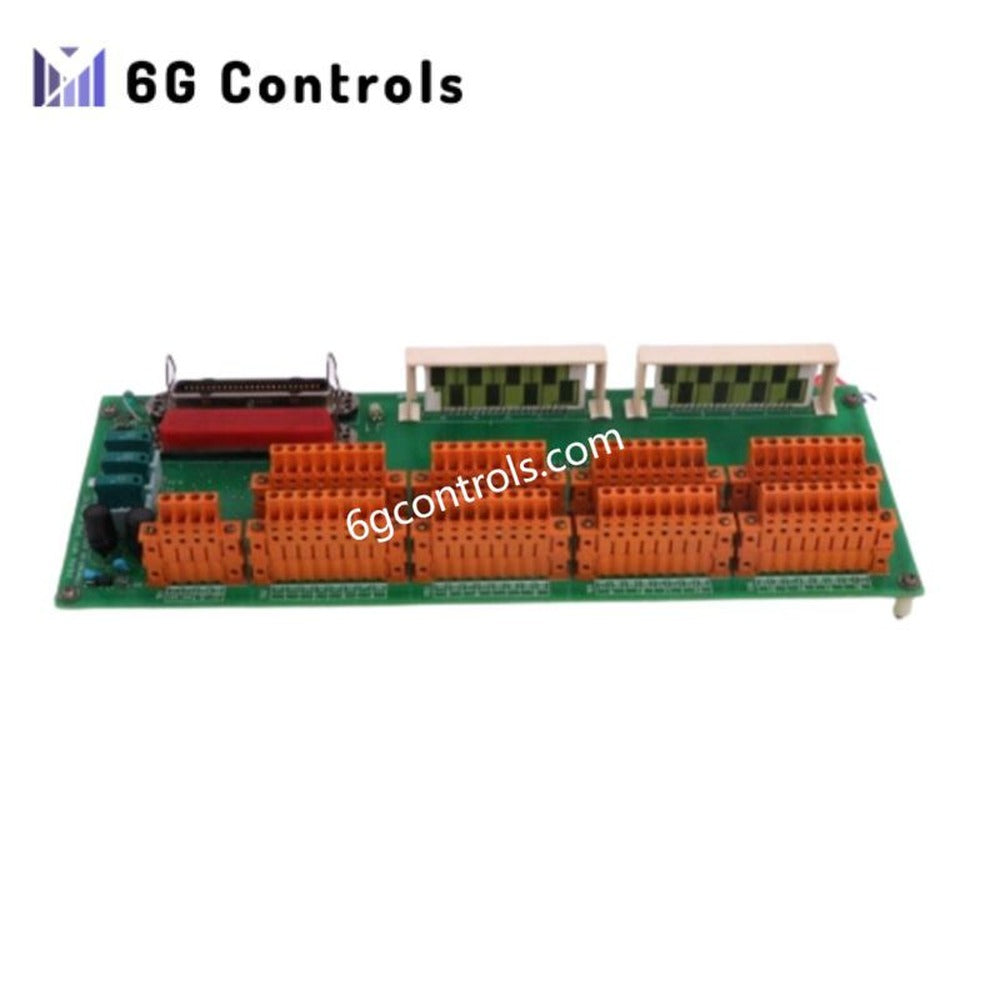

Honeywell FC-PDB-IOX05 Power Distribution Board

Overview

The Honeywell FC-PDB-IOX05 is a Power Distribution Board designed for extension I/O cabinets. It distributes 5V DC power and watchdog signals from the controller cabinet to I/O chassis. It ensures reliable communication, stable operation, and system integrity in Honeywell distributed control systems.

Technical Specifications

• Model Number: FC-PDB-IOX05
• Product Type: Power Distribution Board Extension
• Function: Distributes 5V DC and watchdog signals to I/O extension chassis
• System Compatibility: Honeywell TDC 3000 and other DCS platforms
• Voltage Distribution: 5V DC via connector 5V-1 (includes 0V ground and watchdog signal from CP1)
• Connectors:
  • Three 4-pole connectors for power and signal routing
  • WdPx: 8-pole pin header
• Mounting: Rack-mounted chassis slot, DIN rails (TS32 / TS35 × 7.5)
• Dimensions: 170 × 70 × 46 mm
• Weight: 0.8 kg
• Environmental Suitability: Designed for reliable operation in industrial environments
• Applications: I/O extension cabinets, power distribution, watchdog monitoring, and signal integrity in DCS systems
