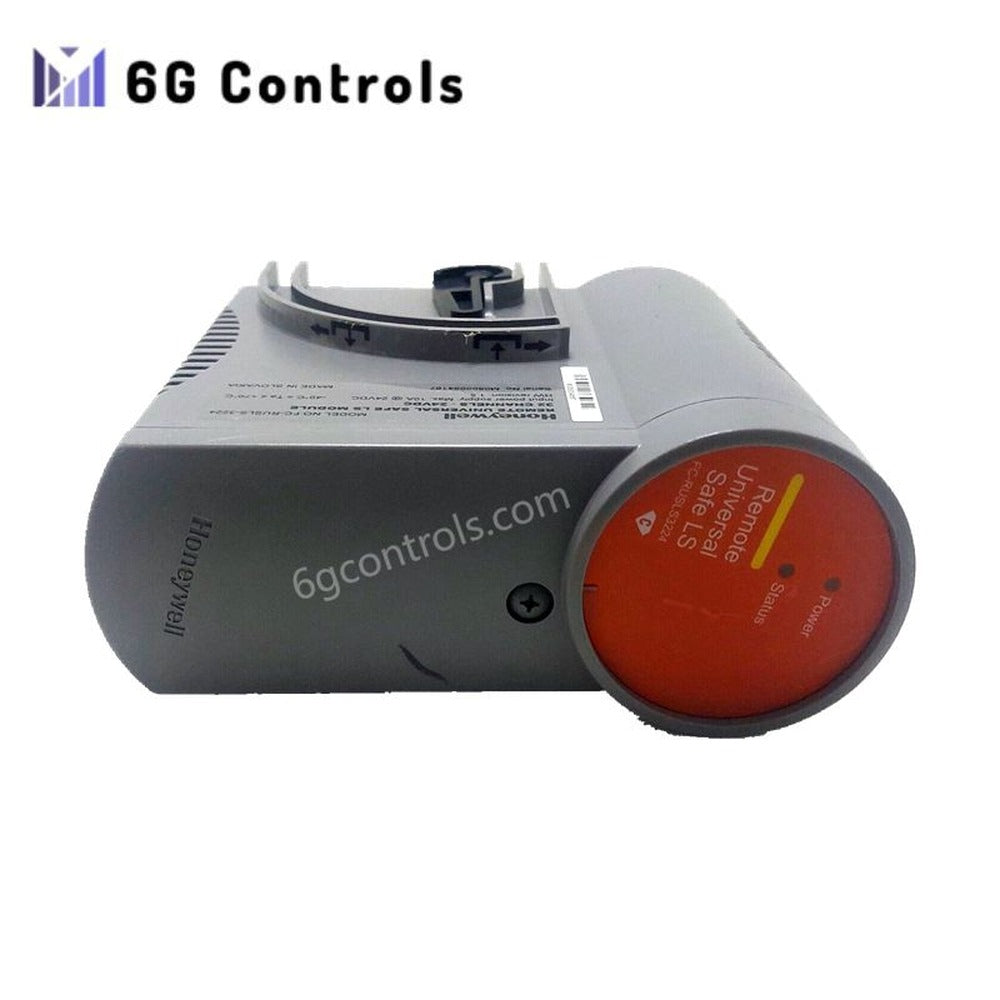

Honeywell FC-RUSLS-3224 Safety Remote Universal I/O Module

Overview

The Honeywell FC-RUSLS-3224 is a versatile Safety Remote Universal I/O module designed for industrial automation applications. It offers 32 channels of input and output, operating at 24V DC, and meets rigorous safety standards. This module ensures secure and reliable operation in critical environments, making it suitable for applications requiring high safety levels.

Technical Specifications

• Model Number: FC-RUSLS-3224

• Type: Safety Remote Universal I/O Module

• Manufacturer: Honeywell

• Channels: 32 channels (24V DC)

Operating Conditions

• External Module Temperature: -40°C to +70°C

• Internal Module Temperature: -40°C to +90°C

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 10% to 95% (non-condensing)

• Pollution Degree: Level 2 or better

Certifications

• Certifications: CE, UL, TUV (pending)

Power Supply

• Voltage: 24V DC (-15% to +30%)

• Current: Max 300mA (without field load)

• Reverse Polarity Protection: Parallel diode (blows the fuse)

Dimensions and Weight

• Dimensions: 7.24 cm x 16.51 cm x 14.5 cm

• Weight: 0.2 kg
