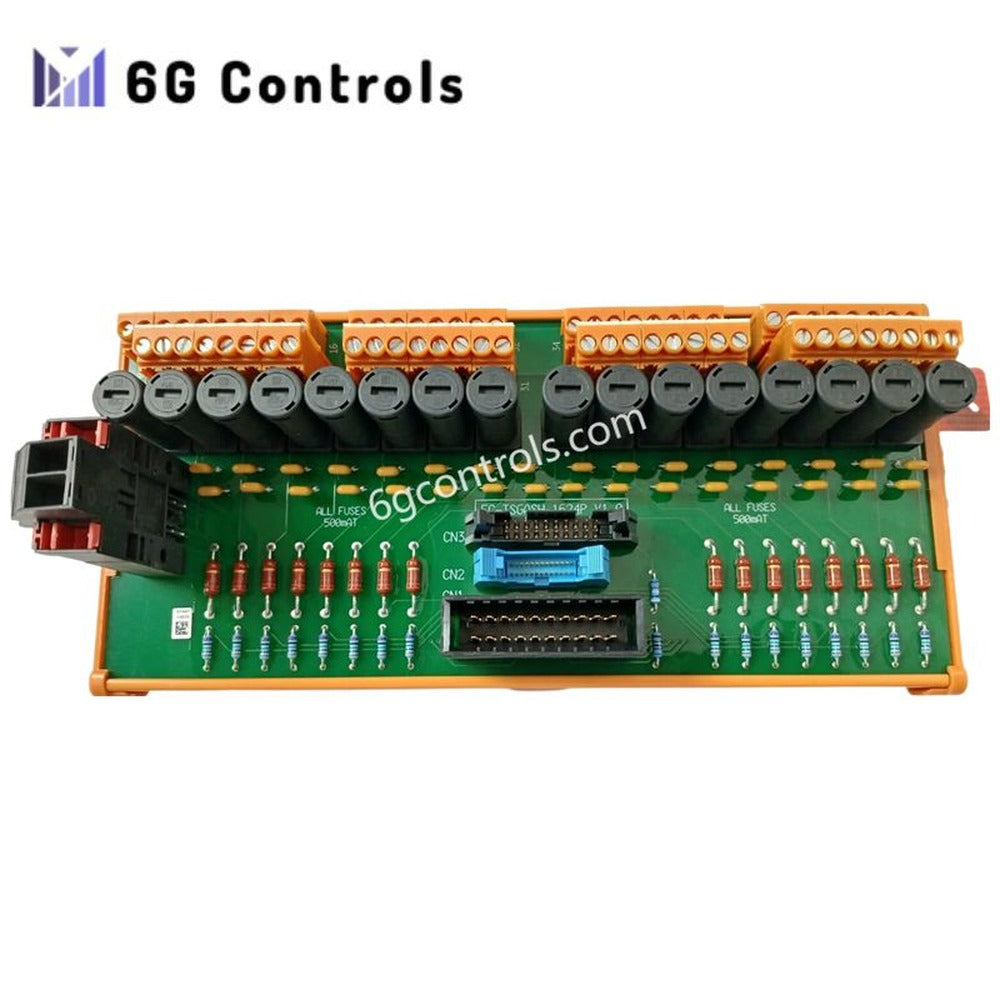

Honeywell FC-TSGASH-1624P Digital Input Field Termination Assembly

Overview

The Honeywell FC-TSGASH-1624P is a Digital Input Field Termination Assembly module. It connects gas and flame detectors with HART communication to Honeywell’s Safety Manager system. The module supports 16 analog input channels, each handling 0–20 mA signals. It enables seamless communication with SAI-1620m high-density analog input modules. Its design ensures reliable signal processing and field termination for safety-critical applications.

Technical Specifications

• Model: FC-TSGASH-1624P
• Type: Digital Input Field Termination Assembly Module
• Input Channels: 16 analog inputs (0–20 mA)
• HART Interface: Supported on all 16 channels
• Power Supply: 24 VDC external
• Current Range: 0–25 mA per channel
• Power Consumption: 2.5 mA (without field loads)
• Channel Protection: 500 mA fuse per channel
• Grounding: One ground terminal per channel
• Signal Conversion: Linear via precision resistors
• Mounting: DIN EN rail snap-in provision
• Cable Interface: SICC-0001/Lx system interconnection cable
• Compatible Modules: SAI-1620m (redundant pair)
• Multiplexer Support: MTL4842, KFD0-HMS-16, KFD2-HMM-16
• Dimensions: 22.5 cm × 10.8 cm × 8.5 cm
• Weight: 0.52 kg
