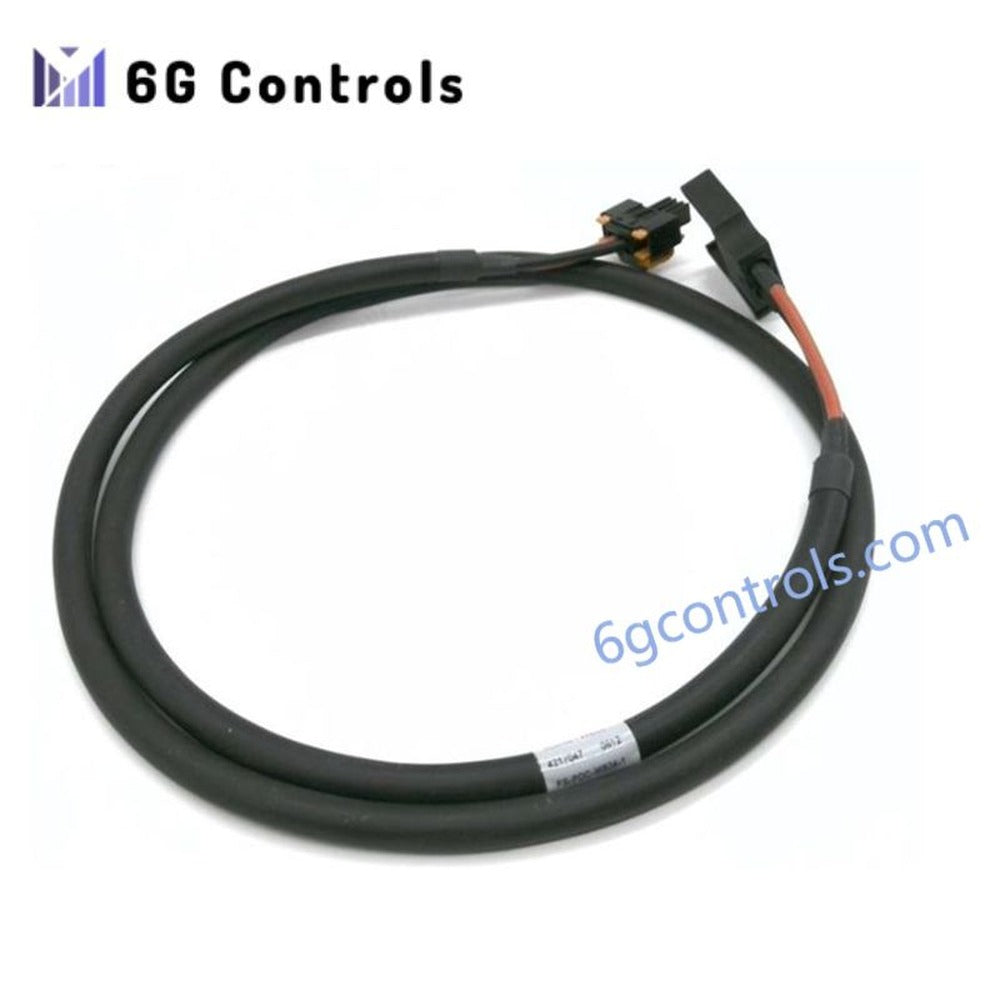

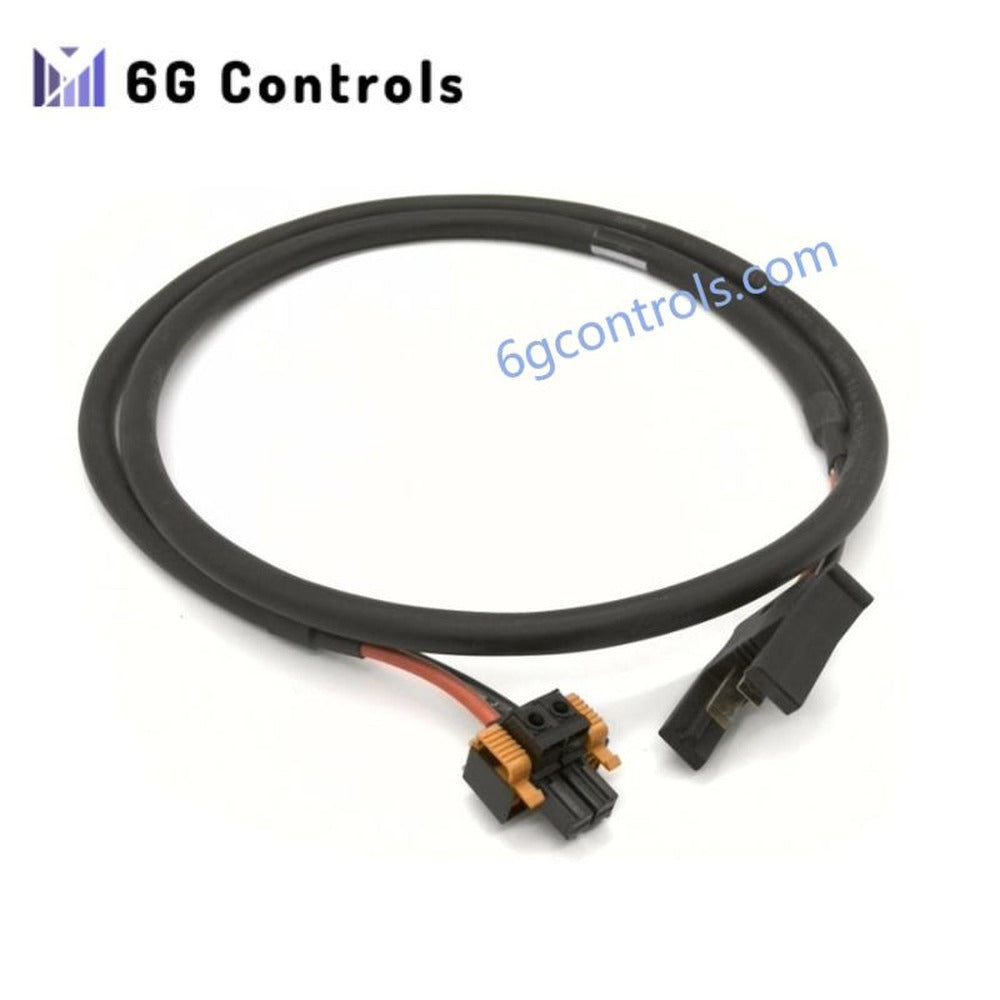

Honeywell FS-PDC-MB24-1 Power Distribution Cable Assembly

11 in stock

Manufacturer: Honeywell
Product No.: FS-PDC-MB24-1
Country of origin: USA
Product Type: Power Distribution Cable Assembly
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.322 kg
Dimensions: 137 mm × 35.6 mm × 151.7 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The FS-PDC-MB24-1 power distribution cable from Honeywell is engineered to provide reliable 24 VDC power transmission within Honeywell Safety Manager and Experion PKS control architectures. This cable assembly connects the main power rail (MB-0001) to downstream power distribution boards such as PDB-0824, ensuring uninterrupted and stable power delivery to safety and control system components.

Designed for continuous-duty industrial environments, this cable features robust insulation and integrated shielding to reduce electromagnetic interference, supporting long-term system stability in safety-critical installations.

Key Functions

This cable assembly serves as a dedicated DC power path between Honeywell system power modules and I/O or power distribution hardware. Its primary role is to maintain a clean and consistent 24 VDC supply to controllers, field termination assemblies, and related system modules.

Technical Specifications

Model: FS-PDC-MB24-1
Manufacturer: Honeywell
Cable Type: Shielded DC power distribution assembly
Rated Voltage: 24 VDC
Nominal Length: 145 cm
Weight: 0.71 lbs
Shielding: Integrated EMI noise suppression
Operating Duty: Continuous industrial operation
System Compatibility: Honeywell Safety Manager, Experion PKS
Typical Connection: MB-0001 to PDB-0824

Design and Reliability Characteristics

The FS-PDC-MB24-1 is constructed to meet the demands of high-availability control and safety systems. Its shielding design minimizes electrical noise in environments with dense wiring, high current loads, or vibration. The cable jacket and internal conductors are selected to support stable voltage delivery over extended service life.

Application Scenarios

This power distribution cable is commonly deployed in:

Process safety systems for oil and gas facilities
Chemical and petrochemical plants
Power generation and energy infrastructure
Industrial plants requiring SIL-rated safety systems

It is a critical component where power integrity directly affects system availability and safety performance.

Related Variants

Honeywell offers length variants such as FS-PDC-MB24-1P, which differ slightly in physical dimensions while maintaining identical electrical and functional characteristics. Selection depends on cabinet layout and installation requirements.

FAQ

Q: What systems is this cable compatible with? A: The FS-PDC-MB24-1 is designed specifically for Honeywell Safety Manager and Experion PKS platforms.

Q: Does the cable include EMI shielding? A: Yes, the assembly incorporates shielding to reduce electromagnetic interference and improve power stability.

Q: Is this cable used for signal transmission? A: No, this product is dedicated to 24 VDC power distribution and is not intended for data or signal communication.
