Product Description

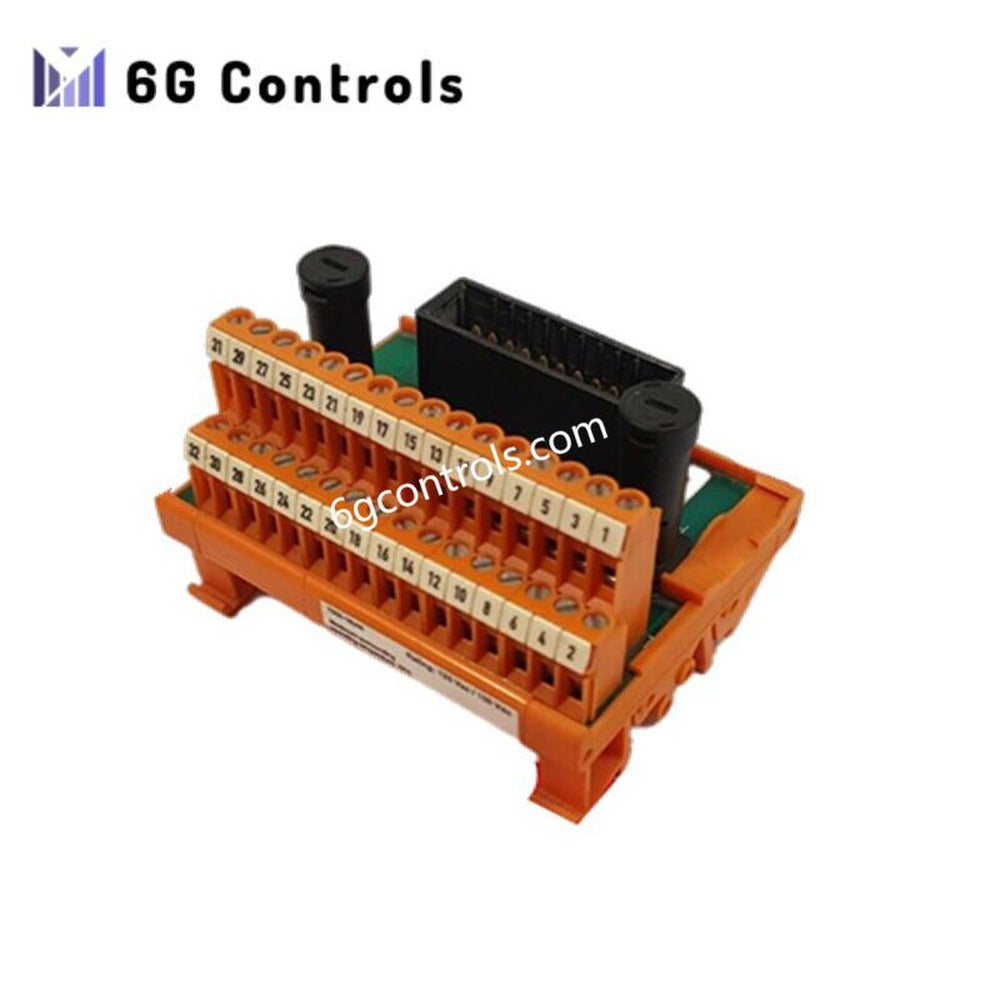

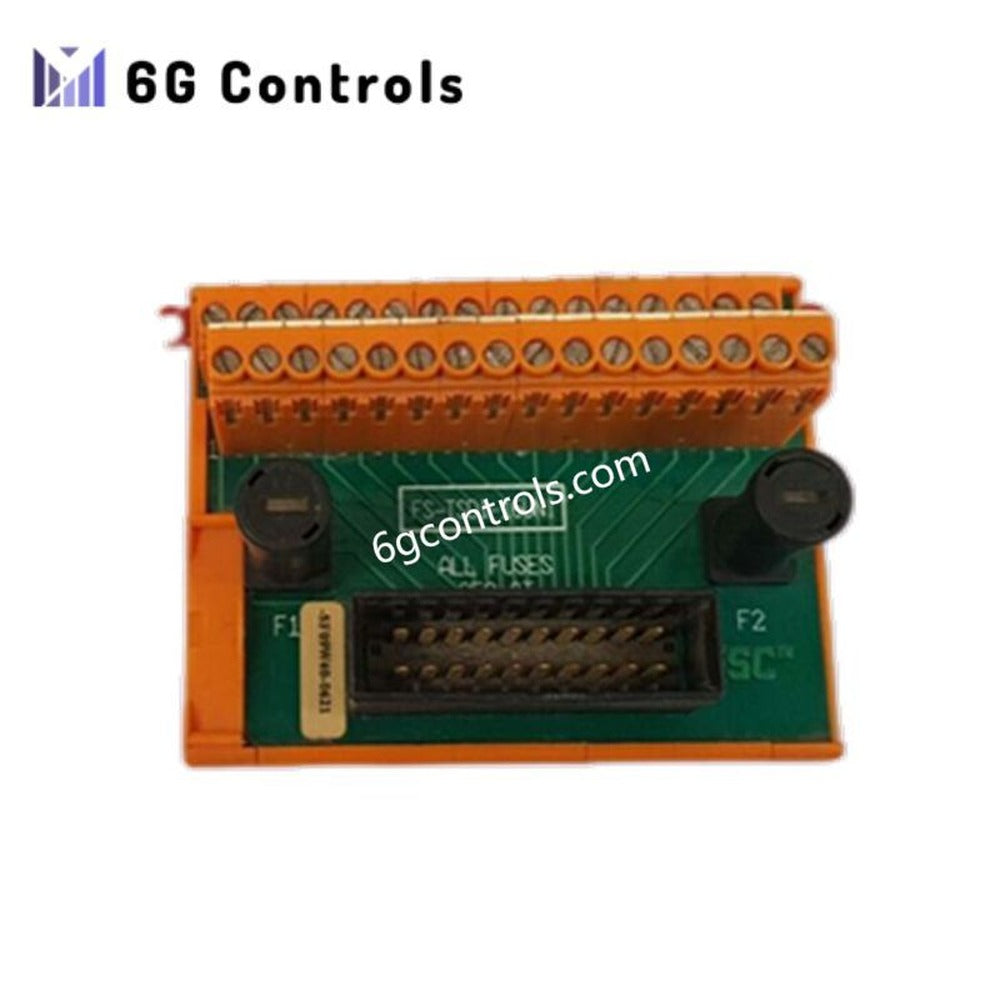

The Honeywell FS-TSDI-16UNI is a 16-channel digital input module designed for high-integrity Safety Instrumented Systems (SIS). It enables seamless connection between field devices, such as sensors and switches, and the Safety Manager or Experion PKS controller. Moreover, its universal design supports both 24 VDC and 48 VDC, as well as NAMUR standard signals, ensuring reliable signal acquisition in critical process automation applications.
This module is engineered for SIL 3 safety compliance, making it ideal for industries requiring stringent safety measures, including chemical, oil & gas, and power generation. In addition, it integrates easily into redundant configurations, enhancing system reliability and minimizing downtime. Its compact DIN rail mount ensures easy installation and maintenance while maintaining high operational integrity.
Key Features
- 16 universal digital input channels supporting 24/48 VDC and NAMUR
- SIL 3 certified for fail-safe operations in safety-critical environments
- Redundant configurations supported with SDIL-1608 modules for higher reliability
- DIN EN rail snap-in mounting for secure and easy installation
- Interfaces with Safety Manager / Experion PKS via SICC-0001/Lx cable
- High-integrity signal acquisition for precise and consistent field monitoring
- Rugged design suitable for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | FS-TSDI-16UNI |
| Type | Digital Input Module for Safety Systems |
| Channels | 16 digital input channels |
| Signal Types Supported | 24 VDC / 48 VDC, NAMUR standard |
| Connection | Via SICC-0001/Lx cable to Field Termination Assembly (FTA) |
| Redundancy | Supports redundant SDIL-1608 modules |
| Mounting | DIN EN rail snap-in provision |
| Safety Certification | SIL 3 compliant (IEC 61508) |
| Maximum Voltage | 125 VAC / 150 VDC |
| Module Function | Fail-safe digital input |
Typical Applications
- Process safety systems in chemical and petrochemical plants
- Critical monitoring in oil & gas production facilities
- Redundant SIS systems in power generation plants
- Integration into Experion PKS Safety System for automated control
- Any environment requiring fail-safe digital input monitoring and SIL 3 compliance
Support & Reliability
Honeywell provides comprehensive documentation, training, and technical support for FS-TSDI-16UNI users. Moreover, its robust design reduces maintenance frequency and ensures reliable operation even under extreme conditions. For instance, redundant setups prevent system failure and enhance operational continuity.
FAQ
Q: What voltage types does the FS-TSDI-16UNI support?
A: It supports 24 VDC, 48 VDC, and NAMUR standard inputs for versatile field connections.
Q: Is this module suitable for SIL 3 safety applications?
A: Yes, it is SIL 3 certified according to IEC 61508 standards.
Q: Can this module be used in redundant systems?
A: Absolutely, it integrates with redundant SDIL-1608 modules to enhance system reliability.
Q: How is the module installed?
A: It mounts easily on DIN EN rails with a snap-in mechanism for secure installation.
Q: Which systems is it compatible with?
A: The module works with Honeywell Safety Manager and Experion PKS Safety Systems.
