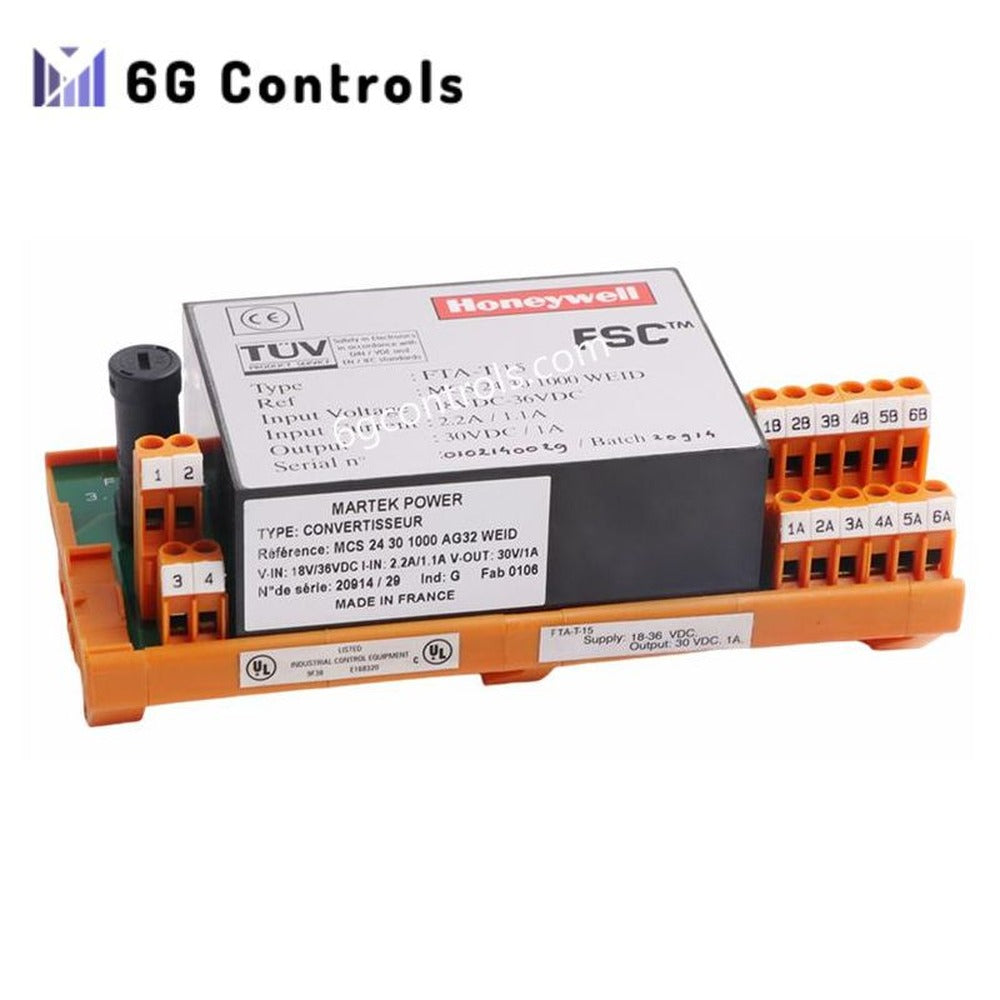

Honeywell FTA-T-15 Field Termination Assembly Brand New

Overview

The Honeywell FTA-T-15 is a Field Termination Assembly (FTA) for distributed control systems (DCS). It creates a secure connection between field devices and control modules. Engineers use it mainly for analog input terminations. Its rugged build and diagnostic features enhance reliability and simplify maintenance. Additionally, it supports fast response and safe signal handling.

Technical Specifications

• Model Number: FTA-T-15
• Product Type: Field Termination Assembly (FTA)
• Operating Voltage: 24 VDC to 30 VDC
• Output Current: Max 1 A
• Load Capacity: Up to 5 A
• Isolation Voltage: 2000 VAC (input to output)
• Response Time: ≤ 1 second
• Communication Interface: Multi-point screw terminal blocks
• Protection Features:
  • Overvoltage detection
  • Undervoltage detection
  • LED status indication
• Operating Temperature: –40°C to +70°C
• Storage Temperature: –40°C to +85°C
• Humidity Tolerance: 5% to 95% RH, non-condensing
• Mounting Options: DIN rail and panel mount
• Dimensions: 15 x 7 x 5.8 cm
• Weight: 0.46 kg
