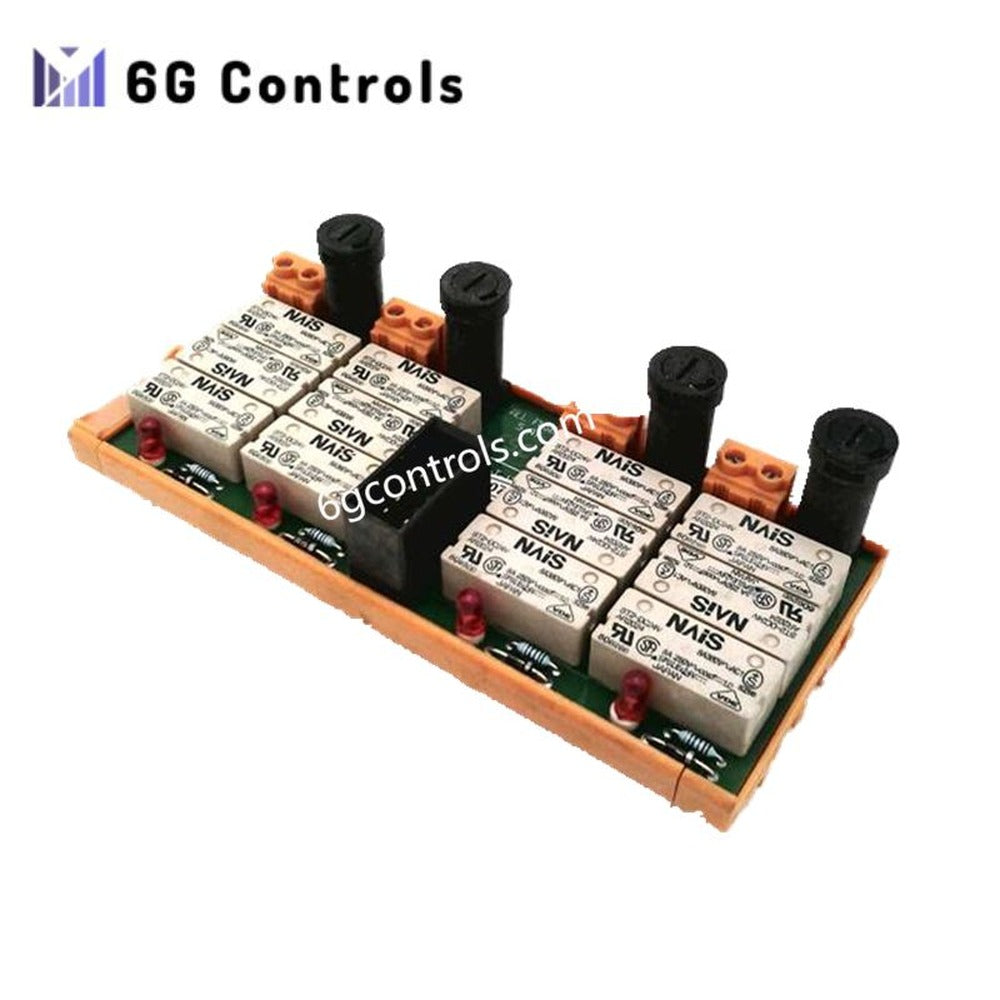

Honeywell FTA-T-17 Digital Output Relay Card Brand New

11 in stock

Manufacturer: Honeywell
Product No.: FTA-T-17
Country of origin: USA
Product Type: Industrial Automation
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.249 kg
Dimensions: 160 × 70 × 60 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Honeywell FTA-T-17 is a digital output relay card designed for AK5/AK6 safety applications within Honeywell’s Fail Safe Control (FSC) system. It interfaces system interconnection cables (SICs) with external field wiring. The device provides four independent relay output channels with redundant relays for enhanced safety. It mounts easily on a DIN rail and supports robust electrical isolation. The module holds CE and UL approvals, ensuring compliance with safety and quality standards.

Technical Specifications

Model: FTA-T-17
Function: Digital Output Relay Card
Channels: 4 relay output channels
Relay Configuration: 3 relays per channel (redundant)
Output Type: Potential-free NO contact with fuse
Contact Rating: 8 A (gold flash over silver alloy)
Max Output Voltage: 250 VAC / 250 VDC
Max Output Current: 5 A
Max Switched Load: 1250 VA / 150 W
Input Voltage: Nominal 24 VDC; Max 36 VDC
Relay Pickup Voltage: Typically 19.2 VDC
Input Current: 35 mA @ 24 VDC
Switching Frequency: Max 20 Hz
Fuses: 5 AT slow-blow (5 × 20 mm)
Isolation: Coil-to-contact 3750 VAC; Contact-to-contact 1200 VAC
Mounting: DIN EN rail (TS32 / TS35 × 7.5)
Wiring Termination: Screw terminals, max 2.5 mm² (AWG 14), strip length 7 mm, torque 0.5 Nm
Operating Temperature: –5°C to +60°C
Dimensions: 160 × 70 × 60 mm
Weight: 0.55 lbs

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
