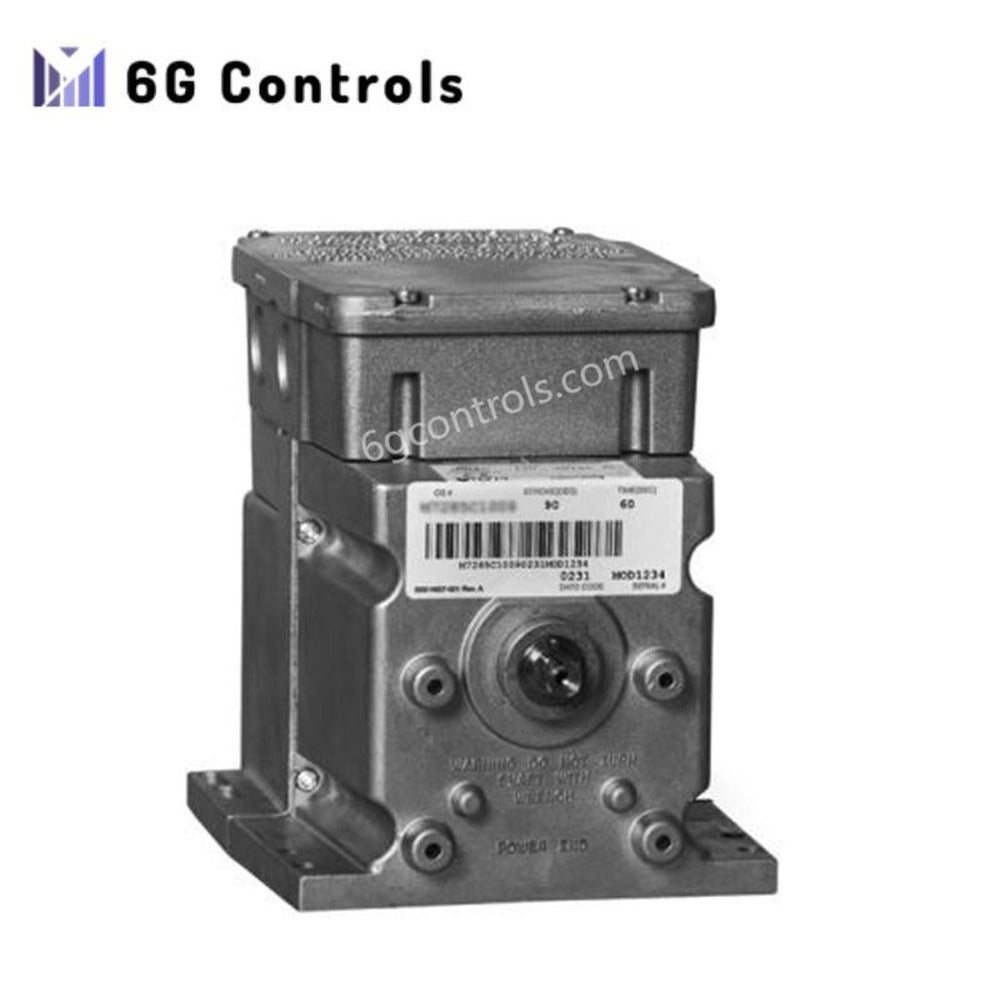

Honeywell M9484F1057 Modutrol IV Proportional Motor

Overview

The Honeywell M9484F1057 is a proportional, non-spring return Modutrol IV motor. It controls burner firing rate valves, dampers, and auxiliary equipment in oil or gas burner systems. This actuator uses a 135-ohm proportional input signal for precise shaft positioning. Its stroke adjusts between 90° and 160°, and it includes two internal auxiliary switches for feedback and safety. The motor features a vibration-resistant electronic drive and a weather-resistant NEMA 3 enclosure.

Technical Specifications

Model: M9484F1057
Motor Type: Modutrol IV proportional motor
Power Supply: 24 VAC, 50/60 Hz
Power Consumption: 15 W
Control Signal: 135-ohm proportional input
Control Type: Series 90, 135-ohm proportional controller
Stroke Range: Field adjustable from 90° to 160°
Torque Rating:
- Running torque: 150 lb-in (17 Nm)
- Breakaway torque: 300 lb-in (34 Nm)
Shaft: Double-ended, 3/8-inch (9.5 mm) square
Auxiliary Switches: Two internal SPDT switches
Ambient Temperature Range: -40°F to +150°F (-40°C to +66°C)
Enclosure Rating: NEMA 3 (weather-resistant wiring box)
Dimensions: 164 × 140 × 185 mm
Weight: 3.63 kg
