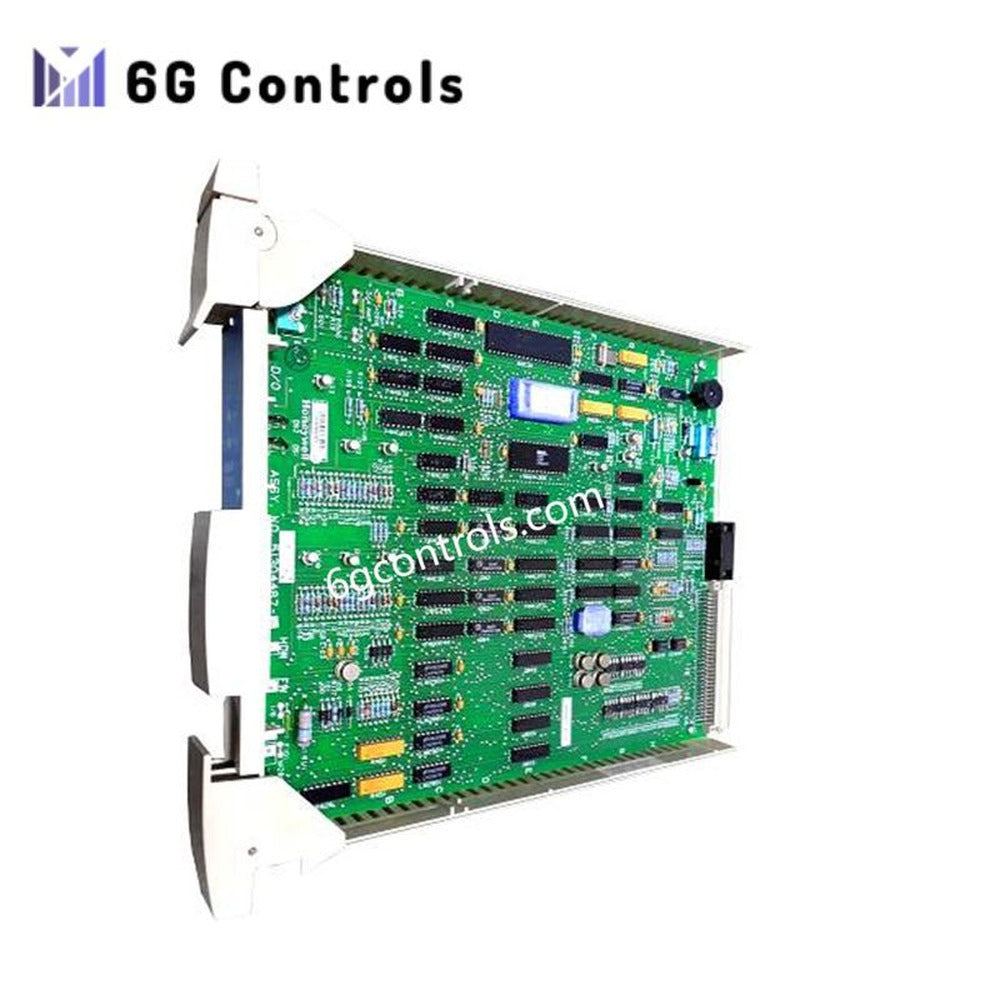

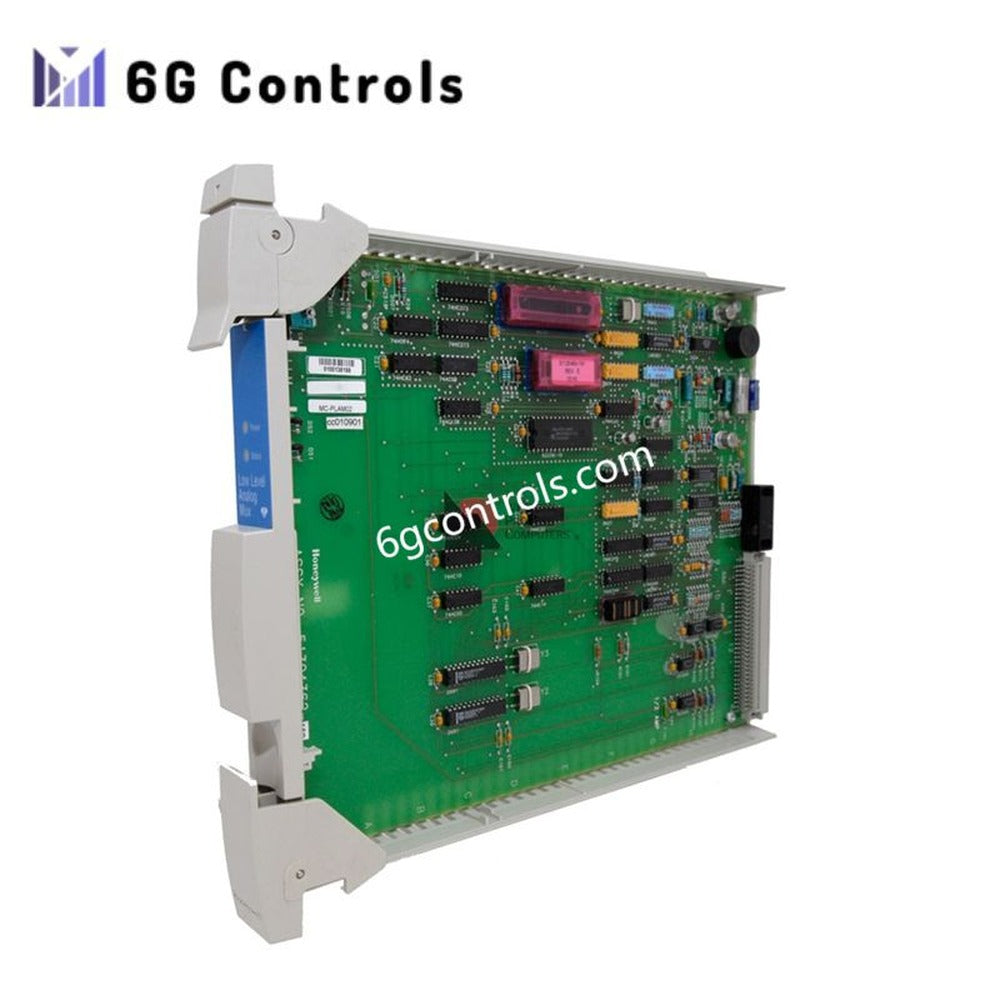

Honeywell MU-PLAM02 51304362-150 Analog Multiplexer Processor

Product Description

The Honeywell MU-PLAM02 51304362-150 is a high-performance Low-Level Analog Multiplexer Processor designed for Honeywell TDC 3000 distributed control systems. It aggregates multiple low-level analog signals into a single digital stream, ensuring precise and reliable input processing. Moreover, its robust design supports high-density analog channel management, making it ideal for complex industrial control environments.

This module provides seamless integration with Honeywell’s Universal Control Network (UCN), offering real-time signal processing and enhanced system responsiveness. Engineers appreciate its conformal coating for long-term durability in harsh industrial conditions. Therefore, it reliably handles thermocouples, millivolt signals, and other low-level analog inputs with minimal noise interference.

Key Features

• High-density analog input processing with 32 channels
• Supports low-level signals such as thermocouples and millivolts
• Rack-mounted design for streamlined system integration
• Low power consumption of approximately 1.5 Watts
• Wide operating temperature range from -40°C to +85°C
• Compatible with Honeywell TDC 3000 and Universal Control Network (UCN)
• Conformal coating ensures long-term reliability in industrial environments
• Efficient signal aggregation into digital streams for centralized processing

Technical Specifications

Typical Applications

• Industrial automation requiring precise analog signal monitoring
• Process control systems with high-density analog input requirements
• Integration with Honeywell TDC 3000 distributed control networks
• Centralized signal processing for thermocouples and low-level voltage sensors
• Critical systems requiring reliable long-term operation in harsh environments

FAQ

Q1: How many analog input channels does the MU-PLAM02 support? A1: It supports 32 low-level analog input channels for high-density monitoring.

Q2: Which signals are compatible with this module? A2: It supports thermocouples, millivolt signals, and other low-level analog inputs.

Q3: Is the MU-PLAM02 CE compliant? A3: Yes, the CE-compliant part number is 51304362-150.

Q4: What is the operating temperature range? A4: The module operates reliably between -40°C and +85°C.

Q5: How is the module mounted? A5: It is a rack-mounted module for easy integration into industrial control systems.
