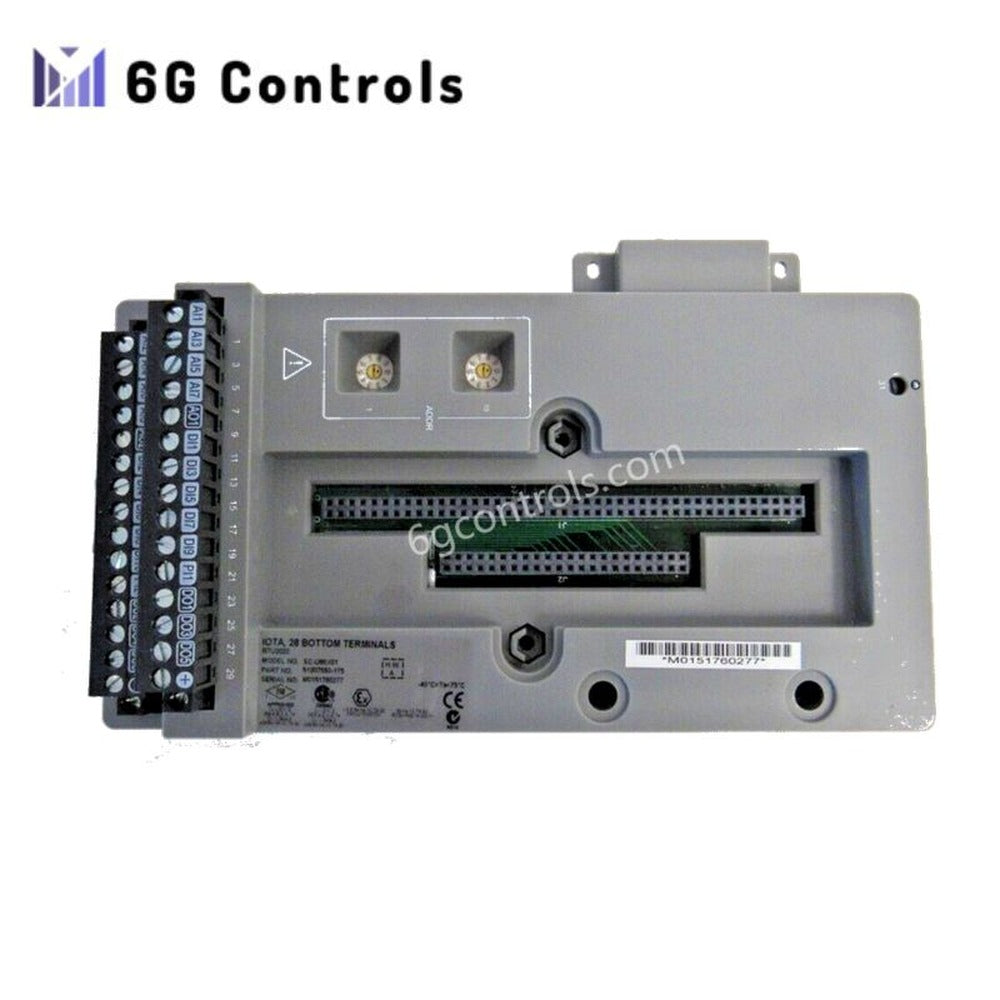

Honeywell SC-UMIX01 51307550-175 Mixed I/O Module

Overview

The Honeywell SC-UMIX01 51307550-175 is a mixed I/O module designed for Honeywell ControlEdge RTU systems. It offers reliable input and output capabilities for various industrial automation applications.

Technical Specifications

• Model Number: SC-UMIX01 51307550-175

• Type: Mixed I/O Module

• Manufacturer: Honeywell

• Channels: 28

Electrical and Mechanical Characteristics

• Rated Input Voltage: 24 VDC ± 25%

• Input Voltage Range: 18 to 30 VDC

• Power Consumption: 2.0 W

• Dimensions (HxWxD): 190 x 99 x 141 mm

• Weight: 680 g

Environmental and Protection Features

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95% RH, non-condensing

• Protection: Surge and ESD protection on inputs/outputs

Input and Output Capabilities

• Analog Inputs: Configurable for 0-10 VDC or 4-20 mA

• Digital Inputs: 24 VDC with configurable pull-up/pull-down

• Output Channels: Supports multiple industrial control applications
