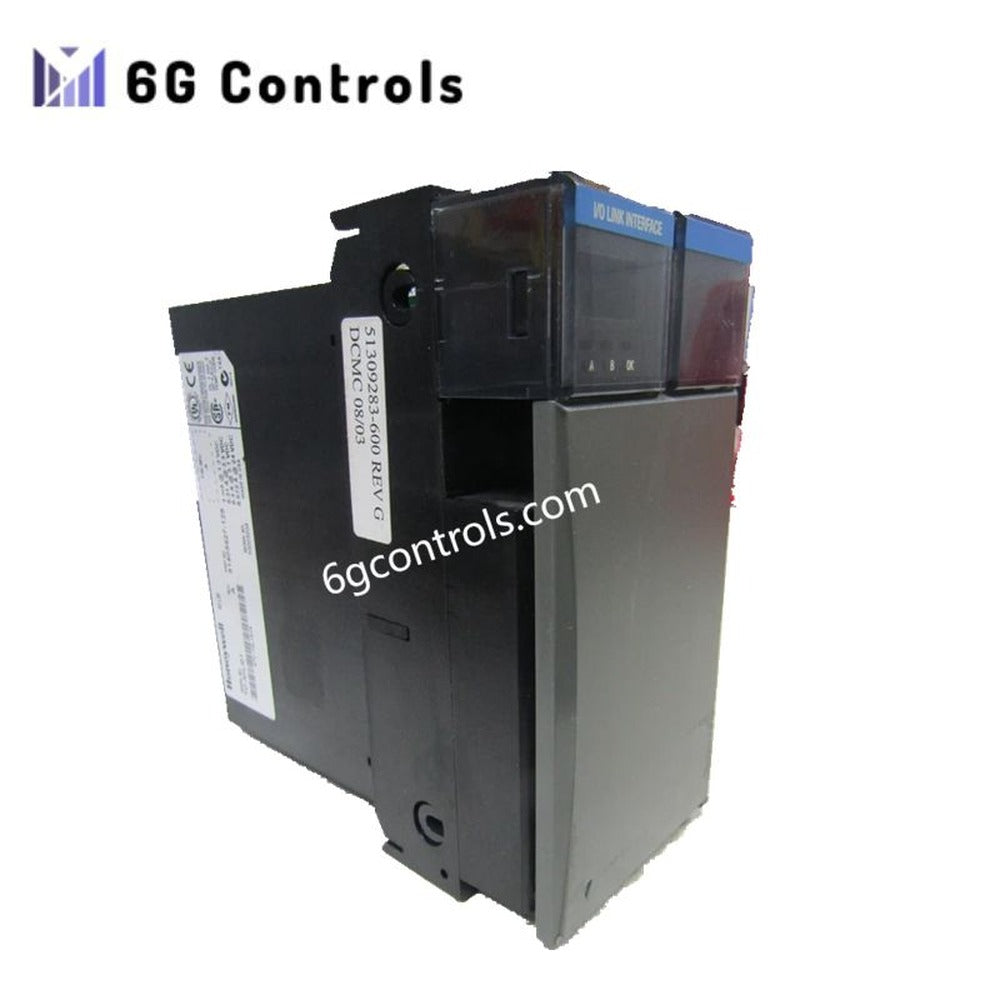

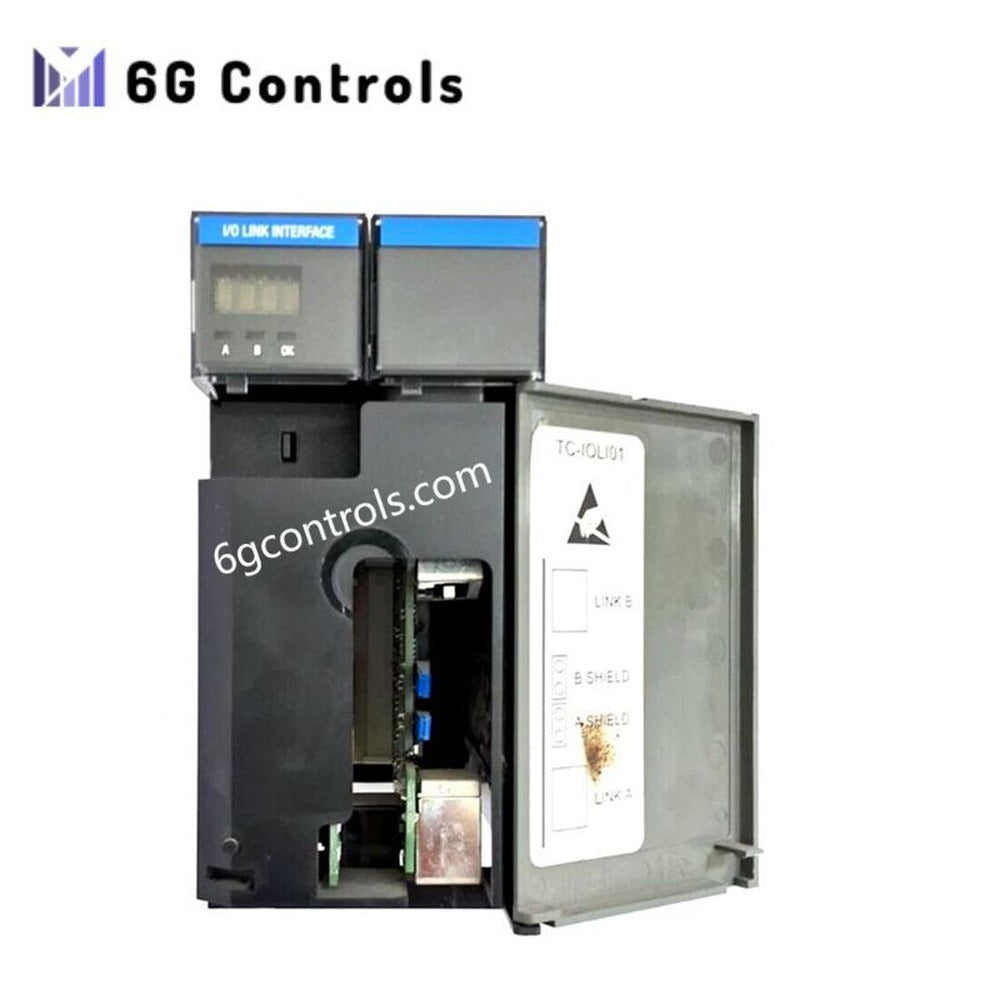

Honeywell TC-IOLI01 51403427-125 I/O Link Interface Module

Product Description

The Honeywell TC-IOLI01 is a high-performance I/O Link Interface Module designed for Experion LS distributed control systems. It enables reliable communication between the controller and field I/O devices, ensuring fast, secure, and accurate data exchange. Moreover, its compact design and DIN rail mounting capability make it ideal for space-constrained industrial panels.

This module supports RS-485 serial communication, achieving data transfer rates up to 1 Mbps. It provides eight I/O channels, allowing modular expansion and flexible system integration. In addition, the TC-IOLI01 operates reliably across a wide temperature range, making it suitable for harsh industrial environments.

Key Features and Benefits

• Provides seamless digital I/O interfacing for Experion LS control systems.
• Supports RS-485 communication for robust and noise-resistant data transfer.
• Compact design enables standard 19-inch rack or DIN rail mounting.
• Eight I/O channels allow flexible system expansion and modular setups.
• Operates reliably between -20°C to +60°C, ensuring stability in industrial environments.
• IP20 protection rating safeguards against dust ingress, improving long-term reliability.
• Ideal for process automation in chemical, oil & gas, and manufacturing industries.

Technical Specifications

• Model: TC-IOLI01
• Part Number: 51403427-125
• Function: I/O Link Interface Module
• System Compatibility: Honeywell Experion LS
• Communication Protocol: RS-485
• Data Rate: Up to 1 Mbps
• Supply Voltage: 24 VDC
• Number of Channels: 8
• Mounting: Standard 19-inch rack or DIN rail
• Dimensions: 180 × 160 × 30 mm
• Weight: 0.5 kg
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +70°C
• IP Rating: IP20

Typical Applications

• Industrial process automation requiring high-speed digital I/O communication.
• Chemical plants, oil & gas facilities, and manufacturing environments.
• Systems requiring modular expansion and compact DIN rail mounting.
• Integration with Experion LS distributed control systems for monitoring and control.

FAQ

Q1: What communication protocol does the TC-IOLI01 support? A1: The TC-IOLI01 supports RS-485 serial communication, providing reliable and noise-resistant data exchange.

Q2: How many I/O channels are available on this module? A2: This module provides eight digital input/output channels for flexible system integration.

Q3: Can this module be mounted on a DIN rail? A3: Yes, it supports standard DIN rail or 19-inch rack mounting for compact installations.

Q4: What is the operating temperature range? A4: The TC-IOLI01 operates reliably from -20°C to +60°C, suitable for industrial environments.
