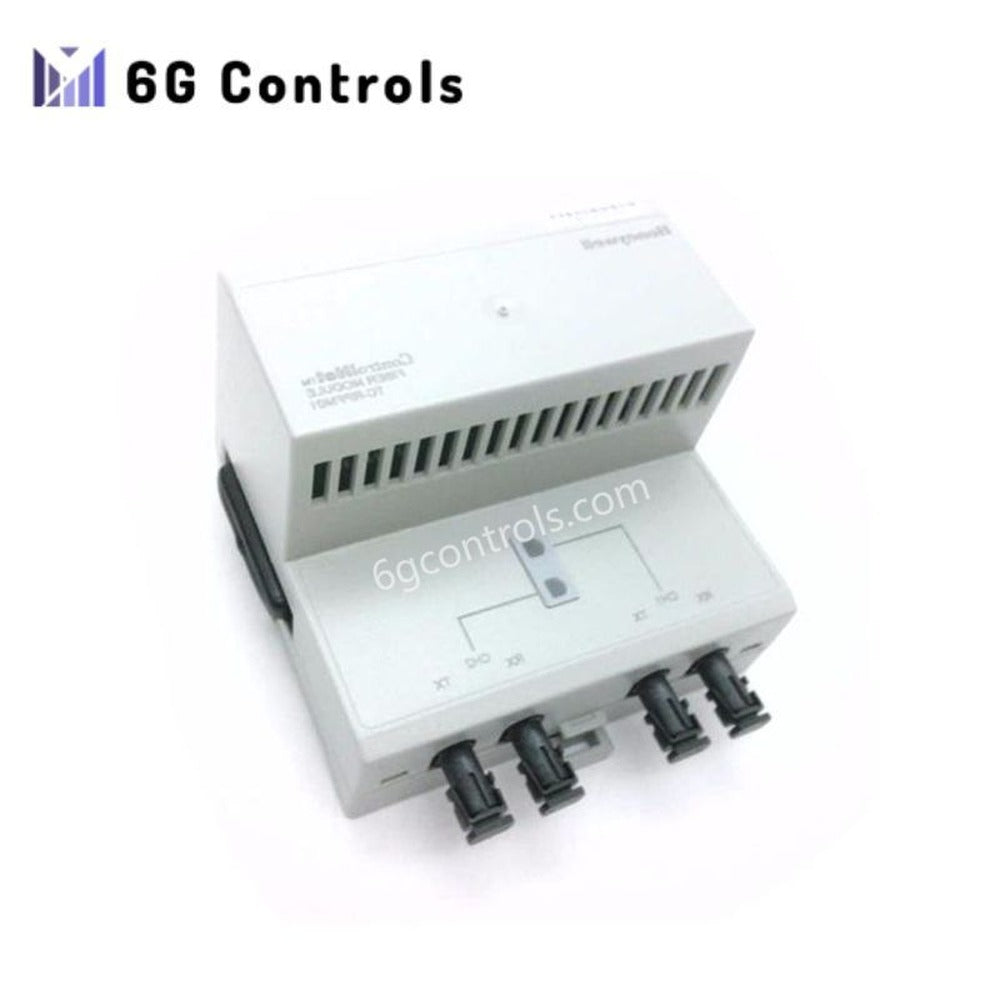

Honeywell TC-RPFM01 ControlNet Fiber Optic Repeater Module

Overview

The Honeywell TC-RPFM01 is a rugged ControlNet Fiber Optic Repeater Module. It extends ControlNet coaxial networks using single-mode fiber. Designed for industrial automation, it supports long-distance, high-speed data transmission in harsh environments. With easy connector options and reliable 24 VDC operation, it delivers stable and secure network extension across up to 3000 meters.

Technical Specifications

• Type: ControlNet Fiber Optic Repeater Module
• Application: Extends ControlNet coaxial segments
• Transmission Distance: Up to 3000 meters
• Fiber Type: Single-mode
• Wavelength: 1310 nm
• Connector Type: ST or SC
• Data Rate: 5 Mbps
• Power Supply: 24 VDC
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Dimensions: 4.3 in x 4.3 in x 2.8 in (10.9 cm x 10.9 cm x 7.1 cm)
• Weight: 0.5 kg
