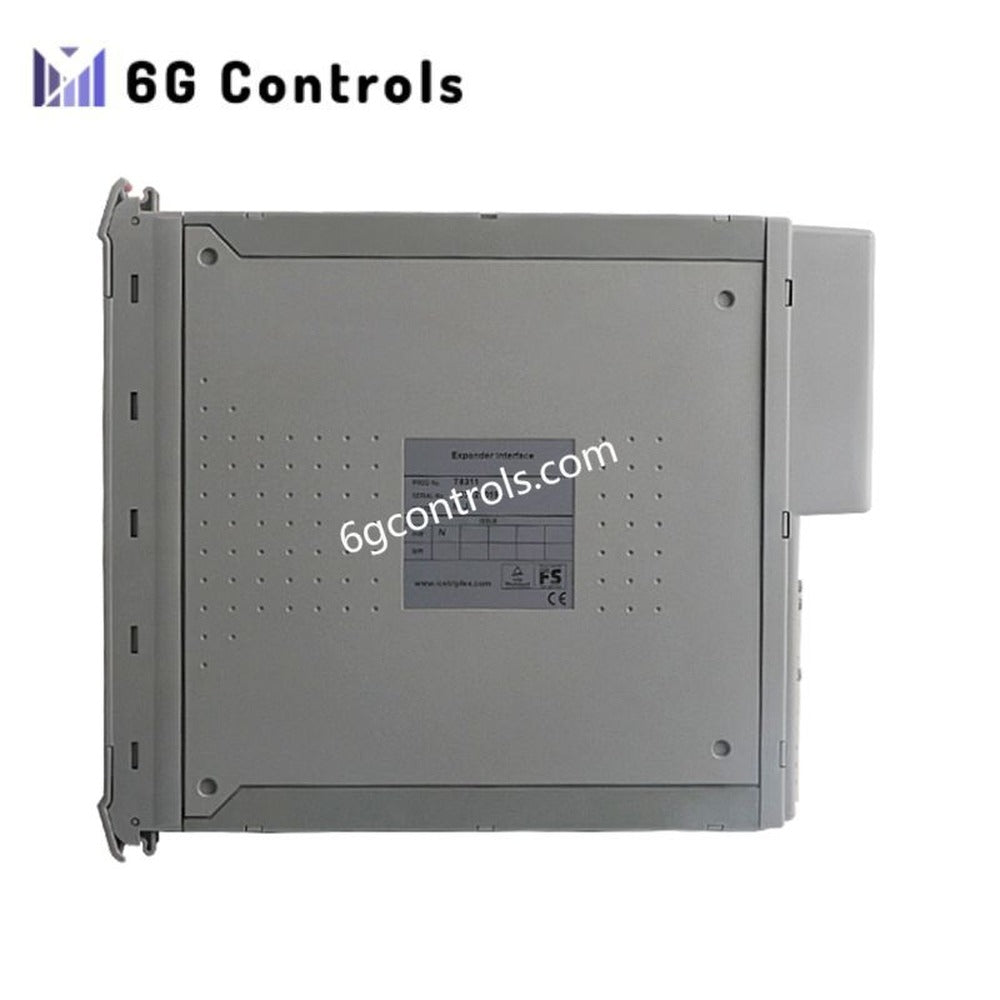

ICS Triplex T8311 Trusted TMR Expander Interface Module

ICS Triplex T8311 Trusted TMR Expander Interface Module

Configured for redundant chassis communication in the Trusted Safety Instrumented System (SIS), the ICS Triplex T8311 (T8311 Expander Interface Module) provides direct physical/electrical execution for high-speed TMR data transfer between Trusted controllers and expansion chassis.

Suffix Breakdown & Model Matrix

The provided model information identifies T8311 as a fixed Trusted TMR Expander Interface Module. No documented suffix structure or ordering matrix is specified in the supplied technical data.

Model Variant	Description
T8311	Trusted TMR Expander Interface Module
T8311C	Conformal coated environmental variant referenced in the Trusted module range

Hardware Specifications

Parameter	Specification
Model	T8311
Brand	ICS Triplex
Weight	1.14 kg
Dimensions	266 mm x 31 mm x 303 mm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	40-54 W maximum
Module Type	Trusted TMR Expander Interface Module
Operating Voltage	20-32 VDC dual redundant backplane supply
Module Clock Speed	50 MHz
Expander Bus Speed	250 Mbps
Isolation	1500 VDC channel-to-channel and channel-to-chassis
Redundancy	TMR architecture with hot standby and module sparing
Form Factor	Plug-in single slot module for T8300 expander chassis
Humidity	5%-95% RH non-condensing
Storage Temperature	-40 deg C to +85 deg C
Protection Rating	IP20 front panel
Shock Resistance	30 g, 11 ms according to IEC 60068-2-27
Vibration Resistance	5 g, 10-150 Hz according to IEC 60068-2-6
Coating	CCoat conformal coating, MIL-I-46058C and IPC-CC-830 compliant
Certification	IEC 61508 SIL3, UL 61010-1, CSA C22.2 No. 61010-1, CE, ATEX, IECEx

Triple Modular Redundant Expander Communication Architecture

The T8311 uses Triple Modular Redundant (TMR) processing to provide fault-tolerant communication between Trusted controller assemblies and expansion chassis. The module operates with a 250 Mbps expander bus interface and supports redundant communication paths within the Trusted architecture. The HIFT TMR structure applies majority voting within the module processing path to contain single-point faults. Built-in monitoring functions evaluate communication status, module health, and operating state through front panel indicators.

Frequently Asked Questions (FAQ)

Q: What communication function does the T8311 provide within the Trusted system? A: The T8311 provides expander bus communication between Trusted controllers and expansion chassis using a 250 Mbps data transfer interface. Q: What type of redundancy architecture is implemented in the T8311? A: The module uses Triple Modular Redundant (TMR) architecture with majority voting, hot standby operation, and module sparing support. Q: What environmental protection features are included in the T8311 design? A: The T8311 includes conformal coating compliant with MIL-I-46058C and IPC-CC-830, supporting operation in industrial environments with specified temperature, humidity, shock, and vibration limits.

Field Installation Guidelines

Install the T8311 module in the designated T8300 expander chassis slot according to the approved Trusted system configuration. Verify chassis power isolation and module position before insertion or removal. Maintain proper separation between communication wiring, power conductors, and high-noise switching circuits. Use shielded communication cables where required by the installation design and terminate shields according to the site grounding standard. Confirm redundant power connections, chassis communication paths, and module status indicators after installation. Check front panel health, active/standby, and data activity LEDs to verify normal operating conditions.
