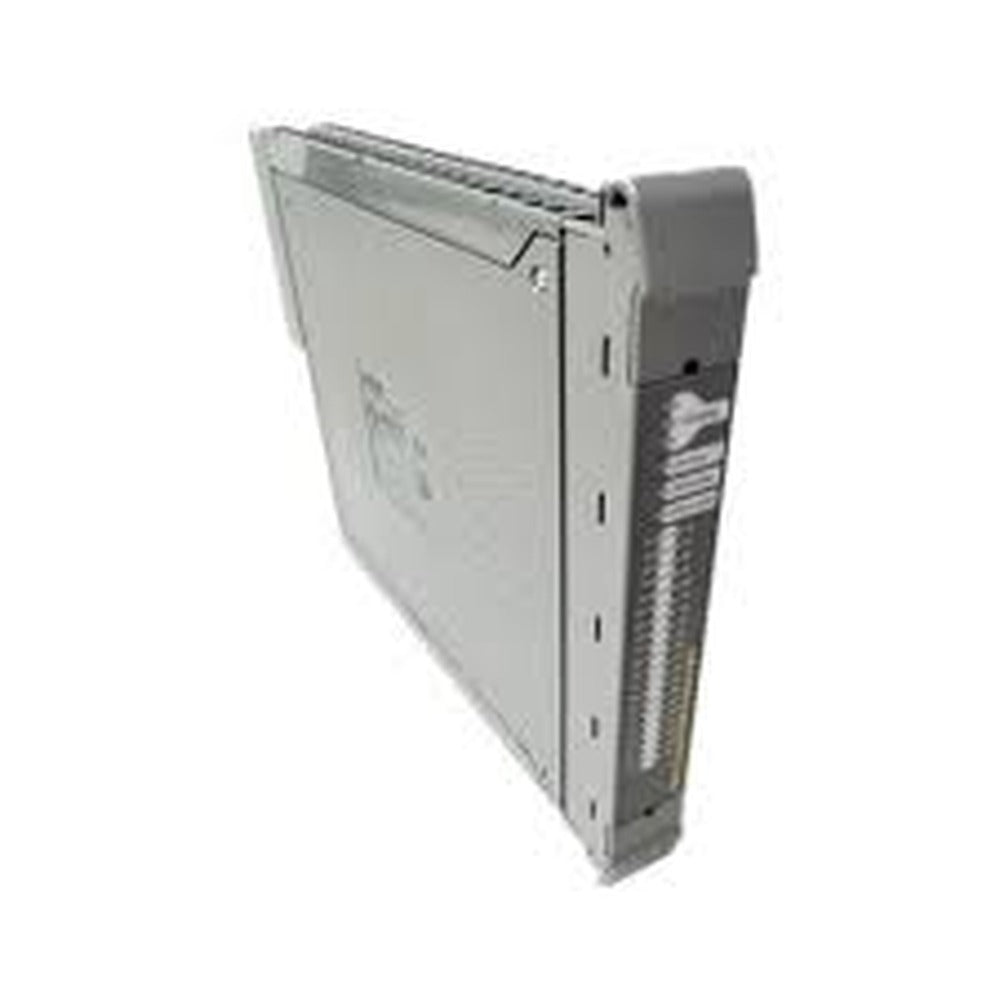

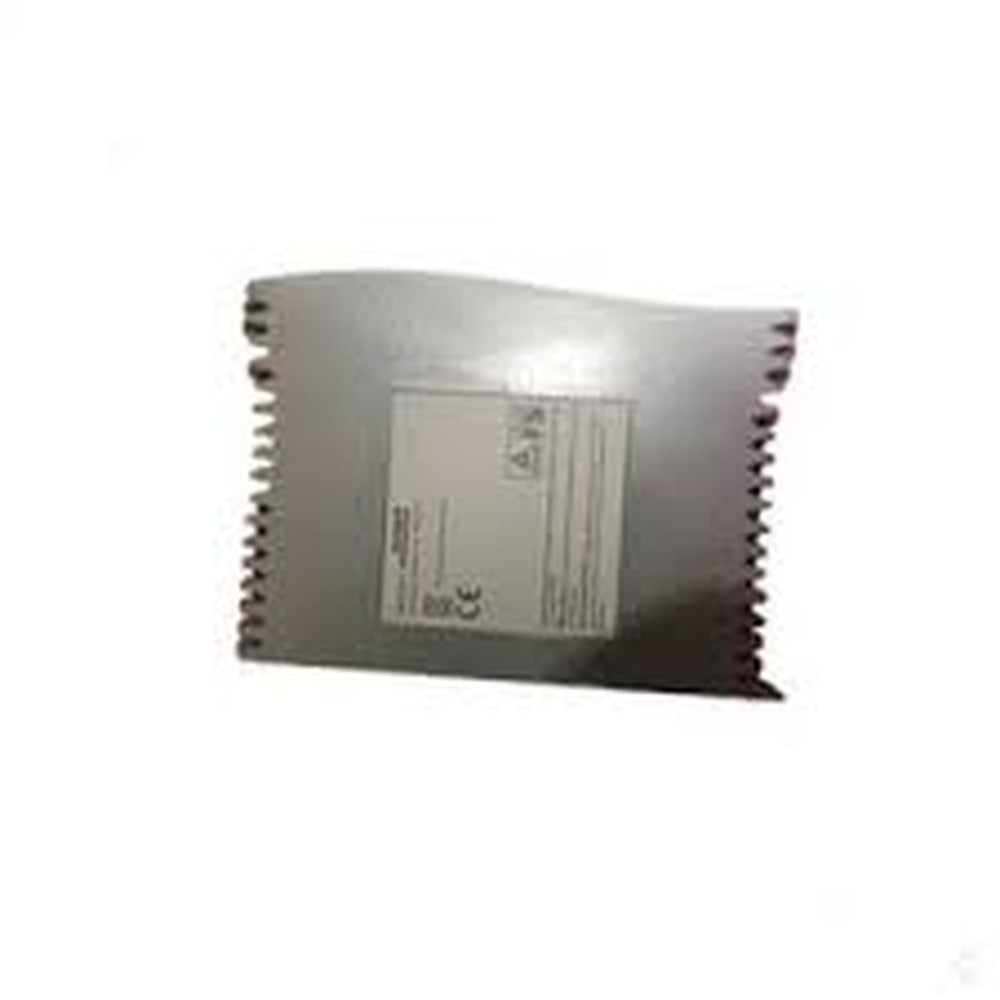

ICS Triplex T8461 Digital Output Module Brand new in Stock

13 in stock

Manufacturer: ICS Triplex
Product No.: T8461
Country of origin: USA
Product Type: Digital Output Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 1.285 kg
Dimensions: 266mm x 31mm x 303mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The ICS Triplex T8461 is a TMR (triple modular redundancy) digital output module that provides high availability and reliability for critical applications. It has 16 channels of 24/48 VDC output with automatic overcurrent protection, and is isolated from the PLC by a 2500 V impulse withstand opto/galvanic barrier. The module is also equipped with a watchdog timer to prevent errors due to communication loss or power failure.

Features

TMR (triple modular redundancy) for high availability and reliability
16 channels of 24/48 VDC output
Automatic overcurrent protection
2500 V impulse withstand opto/galvanic isolation barrier
Watchdog timer to prevent errors due to communication loss or power failure

Specifications:

System Supply Voltage Range: 20 to 32Vdc
Circuit Type: Fault-tolerant, fully triplicated with optional line monitoring
Number of Outputs: 40 Channels
Independent Power Groups: 5 groups, each with 8 outputs
Operational Output/Field Voltage Range: 18 to 60V dc
Output Voltage Measurement Range: 0 to 60V dc
Maximum Withstanding Voltage: -1 to 60V dc
Output Current Rating (Continuous): 0.75A per channel, 6A per power group
Minimum On-State Load Current: 25mA
Output Off-State Resistance (Effective Leakage): 33kΩ
Maximum Capacitance Pre-release 3.5: 30-55uF
Release 3.5: at least 3500uF at 0.75A
Flashing/Pulsing Current Loads: Release 3.5 is recommended
Output On-State Resistance: 0.6Ω
Output Short Circuit Protection: Electronic (latching)
Channel to Channel Crosstalk: >-40dB
Power Consumption:
- Field Supply at 24V (0.75A per channel): 18W
- System Supply (24V): 22W
Field Common Isolation:
- Sustained Working: ±250V dc
- Maximum Withstanding: ±2.5kV dc
Output Turn-On/Off Delay: 0.5ms
Sample Update Time: 0.5ms
Sequence of Events:
- Event Resolution: 1ms
- Time-stamp Accuracy: ±0.5 ms
- Self-Test Interval: 2 minutes
Intrinsic Safety: External barrier
Operating Temperature: -5°C to 60°C (23°F to 140°F)
Non-operating Temperature: -25°C to 70°C (-13°F to 158°F)
Temperature Change: 0.5ºC/min
Operating Humidity: 5 – 95% RH non-condensing
Environmental Specifications: Refer to Document 552517

Dimensions:

Height: 266mm (10.5ins)
Width: 31mm (1.2ins)
Depth: 303mm (12ins)

Weight:

Module Weight: 1.285kg (2.8lbs)
Shipping Weight: 2 Kg
