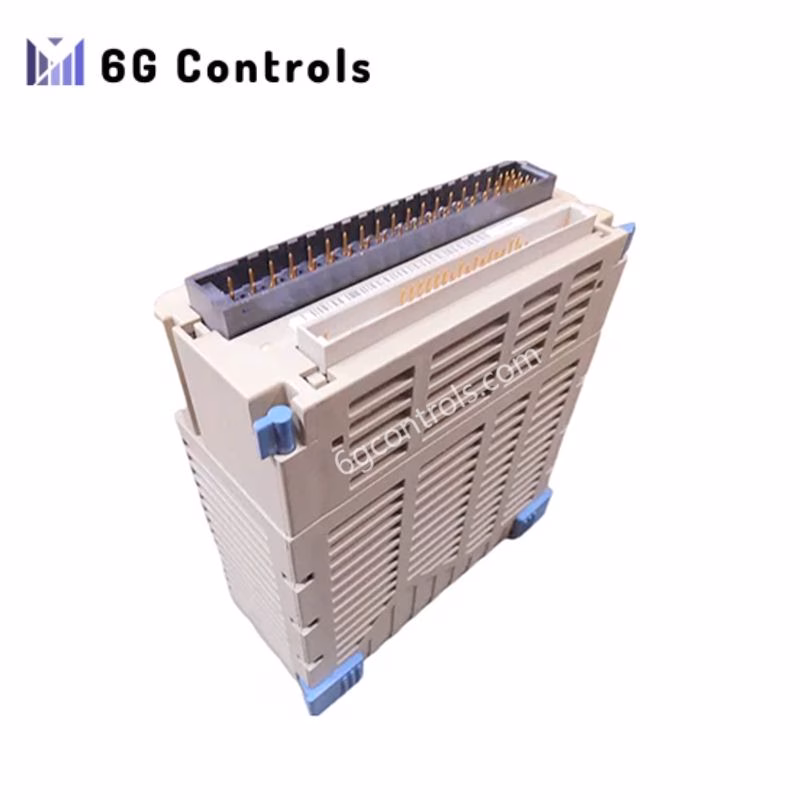

Ovation 1C31197G04 High-Speed Analog Input Module

Overview

The Emerson Ovation 1C31197G04 is a high-speed analog input module. It delivers accurate voltage signal acquisition in control systems. Engineers use it for precise data processing in industrial automation. With high resolution and fast sampling, it ensures reliable performance under demanding conditions. This module supports both ±5V and ±10V input ranges. Additionally, it offers temperature measurement with excellent accuracy and stability. Its power flexibility and environmental resilience make it ideal for robust process control applications.

Technical Specifications

Product Type: High-Speed Analog Input Module
Manufacturer: Emerson
Model Number: 1C31197G04

Input

• Input Type: Voltage
• Input Range: ±5V, ±10V
• Resolution: 14-bit
• Sampling Rate: 50 or 60 samples/second

Temperature Measurement

• Sampling Rate: Max 600 ms, typical 300 ms
• Accuracy: ±0.5°C (0°C to 70°C range)

Power Supply

• Power Source: 24VDC main and auxiliary supply
• Auxiliary Power: Internal backplane for current modules
• Field Power: Supports field-powered current loops (specific setups)

Environmental Conditions

• Operating Temperature: 0°C to 70°C
• Humidity: 95% RH, non-condensing
