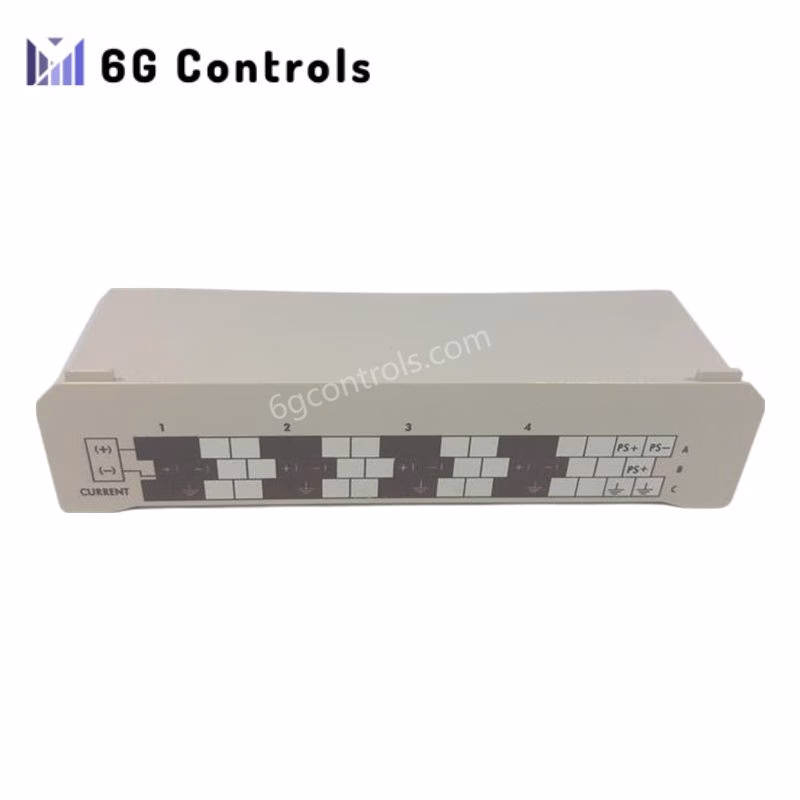

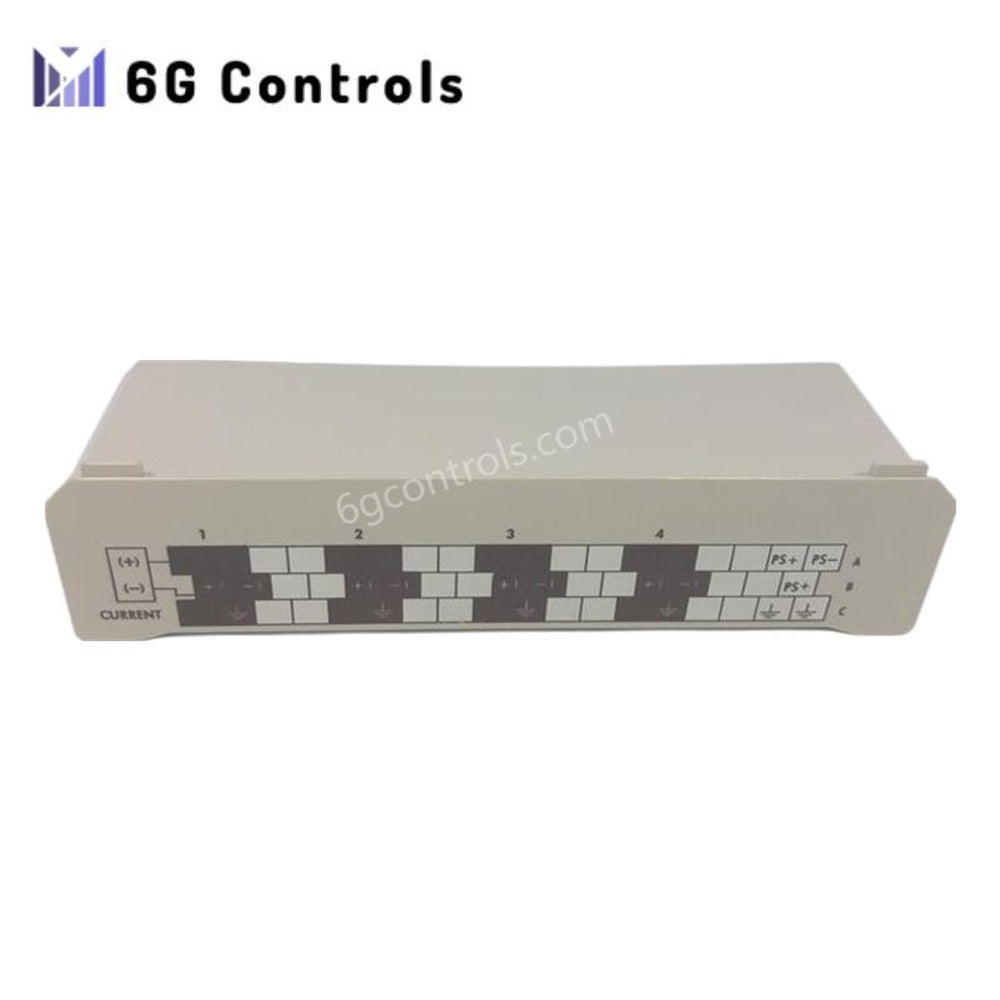

Ovation 1X00188H01 Analog Output Module High Quality

Overview

The Ovation 1X00188H01 is a high-performance analog output module. Emerson designed it for the Ovation distributed control system (DCS). It delivers precise current outputs for critical industrial automation processes. The module includes built-in HART support, enhancing smart device integration. Its robust microcontroller ensures fast, stable signal conversion. Additionally, the design offers strong electrical isolation for reliable long-term operation.

Technical Specifications

• Product Type: Analog Output Module
• Manufacturer: Emerson
• Model Number: 1X00188H01
• Output Channels: 8 multiplexed analog outputs
• Output Signal Type: 4–20mA
• Resolution: 14-bit A/D converter
• Microcontroller Speed: 16 MHz
• Electrical Isolation: 1000 VDC/RMS between field and logic circuits
• Power Supply: Standard Ovation power source
• Operating Temperature: -5°C to 55°C
• Humidity: Up to 95% RH, non-condensing
• Dimensions: 12.1 cm x 2.5 cm x 7.0 cm
• Weight: 0.6 kg
• Additional Feature: HART high-performance analog output
