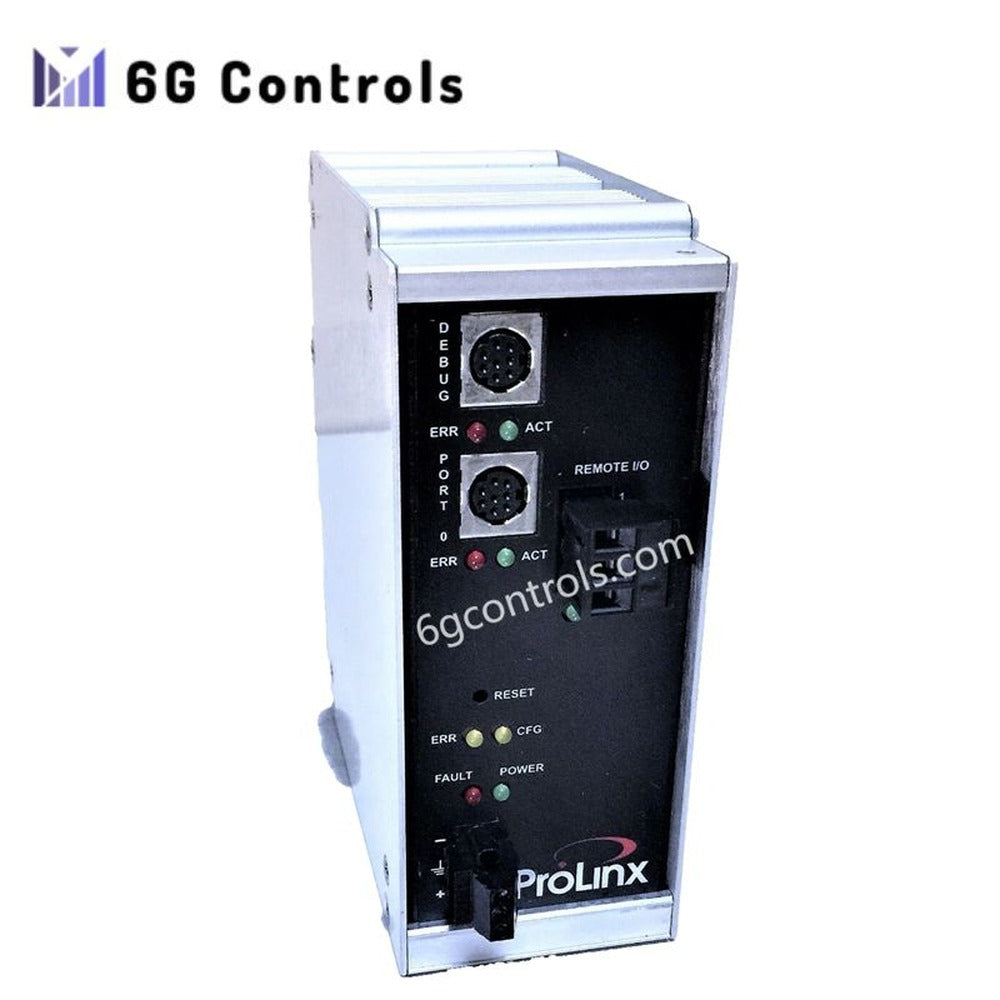

PROSOFT 5601-RIO-MCM Communication Gateway Brand New

17 in stock

Manufacturer: Prosoft
Product No.: 5601-RIO-MCM
Country of origin: USA
Product Type: Communication Gateway
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.5 kg
Dimensions: 132 mm × 52.5 mm × 114.8 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The ProSoft 5601-RIO-MCM is a high-performance communication gateway for industrial automation. It connects Rockwell Automation Remote I/O networks with Modbus Master or Slave devices. This stand-alone, DIN-rail-mounted module ensures seamless integration between legacy Remote I/O systems and Modbus-compatible equipment. Therefore, it is widely used in manufacturing, energy, and process control industries.

Technical Specifications

Remote I/O Port

Acts as adapter (slave)
Connects to scanner (master)
Baud rates: 57.6K, 115K, 230K
Rack addressing: 0–63
Rack sizes: ¼, ½, ¾, full
Block transfers: BTR up to 63 words, BTW up to 64 words

Modbus Serial Ports

Up to 4 configurable ports
Protocols: Modbus RTU (CRC-16), Modbus ASCII (LRC)
Baud rate: 110 to 115,200 baud
Data size: 7 or 8 bits
Stop bits: 1 or 2
Parity: None, Even, Odd
RTS delay: 0 to 65,535 ms

Modbus Master Features

Up to 100 commands per port
Polling modes: continuous, on data change, triggered
Optimized error handling in polling
Maintains slave status list per port
Provides error codes per command

Environmental & Power

Operating temperature: –20°C to +50°C (–4°F to +122°F)
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Humidity: 5% to 95% RH, non-condensing
Power supply: 24 VDC nominal (18–32 VDC)
Current load: Max 500 mA @ 32 VDC

Physical Characteristics

Mounting: DIN rail
Housing: Extruded aluminum
Dimensions: 132 mm (H) × 52.5 mm (W) × 114.8 mm (D)
Weight: 0.5 kg
