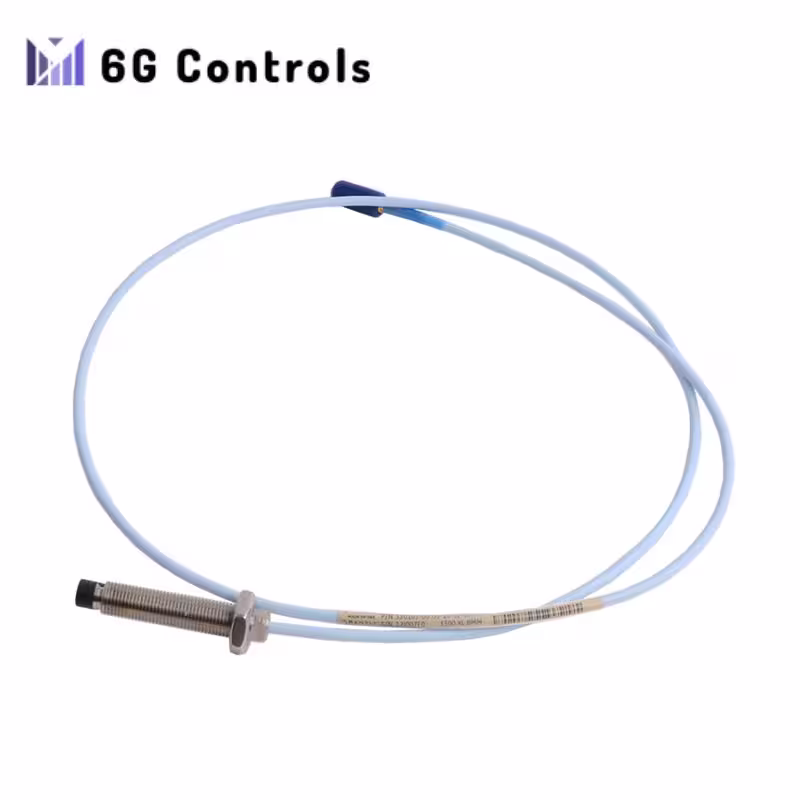

PROVIBTECH TM0180-A05-B05-C03-D05 Proximity Probe System

Overview

The PROVIBTECH TM0180-A05-B05-C03-D05 is an 8mm proximity probe system. It is engineered for industrial vibration and condition monitoring. It meets API 670 standards, ensuring precision and long-term reliability in demanding environments. This system effectively monitors radial vibration, shaft position, and axial thrust. Its rugged build, flexible cable options, and wide temperature tolerance make it ideal for harsh industrial settings.

Technical Specifications

• Product Type: Proximity Probe System

• Probe Tip Size: 8mm

• Measurement Functions:

  • Measures static and dynamic distances

  • Supports radial vibration and axial thrust monitoring

  • Tracks shaft radial position

• Cable Configuration:

  • Probe Cable Lengths: 0.5m or 1.0m

  • Extension Cable Lengths: 5.0m or 9.0m

  • Total System Length: 5m or 9m (probe + extension)

• Connector Type: API 670 standard connectors (system-compatible)

• Jacket Material: FEP (resistant to 200°C, durable, chemically stable)

• Operating Temperature Range: -25°C to +60°C

• Storage Temperature Range: -40°C to +70°C
