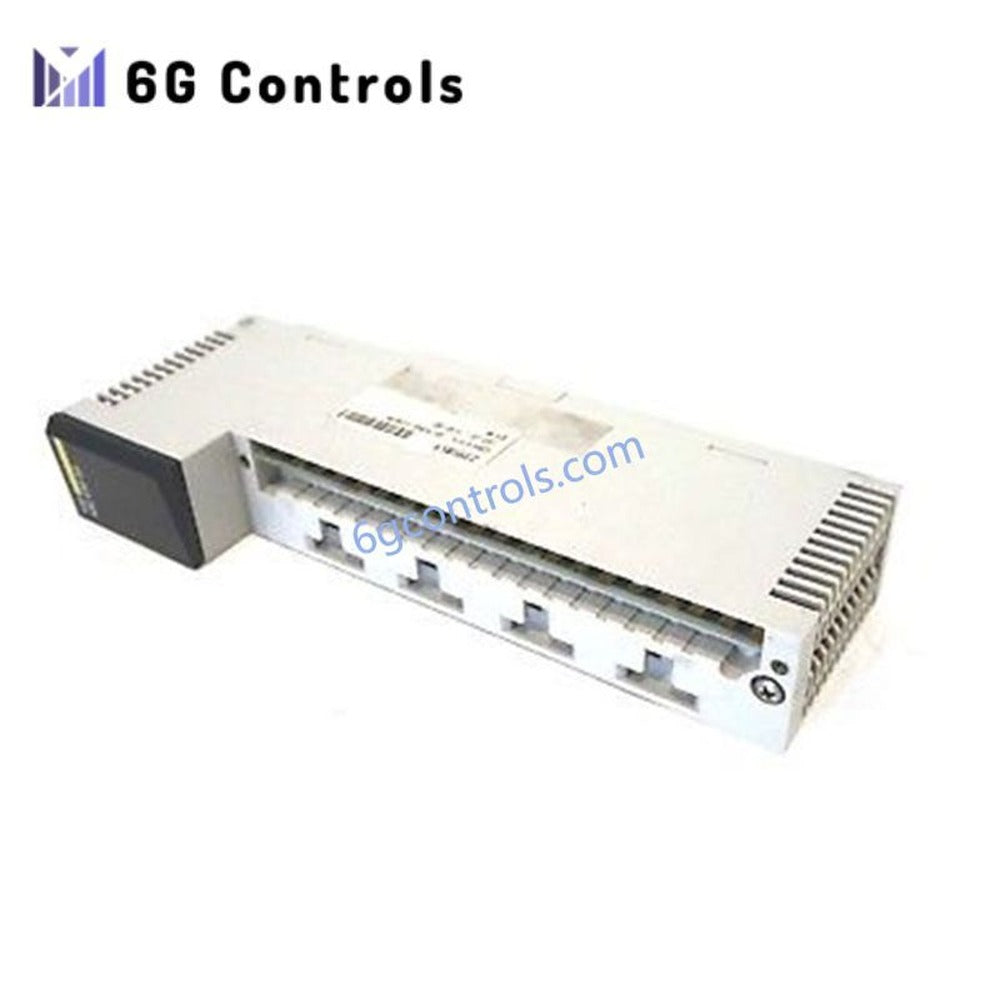

Schneider Electric 140ARI03000 RTD Input Module Quantum PLC

Product Description

The 140ARI03000 by Schneider Electric is an 8-channel RTD input module developed for the Modicon Quantum automation platform. It is engineered to acquire precise temperature data from resistance temperature detectors and convert it into digital values for PLC processing. The module integrates signal isolation and filtering to ensure stable measurements in electrically noisy industrial environments.

Although the 140ARI03000 has been phased out since September 2022, it remains in use across many legacy Quantum installations. Schneider Electric recommends migration to the BMXART0814 module from the Modicon X80 series for new deployments or system upgrades.

Technical Specifications

• Model: 140ARI03000
• Product Type: Analog RTD Input Module
• PLC Platform: Modicon Quantum
• Number of Inputs: 8 isolated RTD channels
• Supported Sensors: Pt100, Pt1000, and other standard RTD types
• Measurement Type: Resistance-based temperature acquisition
• Conversion: Analog resistance to digital data
• Input Isolation: Channel-to-channel and channel-to-backplane isolation
• Accuracy: High-resolution temperature measurement suitable for process control
• Noise Protection: Integrated filtering and isolation against EMI/RFI interference
• Mounting: Quantum backplane (rack-mounted)
• Front Access: Terminal interface for field wiring
• Operating Mode: Continuous temperature monitoring

Key Features

• Supports simultaneous acquisition from up to eight RTD sensors
• Electrical isolation enhances reliability in harsh industrial environments
• Designed for stable and repeatable temperature measurement
• Seamless integration with Modicon Quantum PLC architecture
• Suitable for both continuous and batch process applications

Application Areas

• Process industries such as oil & gas, chemical, and power generation
• Temperature monitoring in manufacturing lines
• HVAC and environmental control systems
• Batch processing systems requiring precise thermal feedback

Replacement & Compatibility

The 140ARI03000 is superseded by the BMXART0814 module:

• Compatible with Modicon X80 platform
• Maintains 8-channel RTD input capability
• Offers improved diagnostics and system integration features
• Requires migration from Quantum to X80 architecture

FAQ

Is the 140ARI03000 still available for purchase? This model is discontinued. It may still be sourced through surplus or third-party suppliers, but availability is limited.

Can this module be directly replaced with BMXART0814? No. The BMXART0814 belongs to the Modicon X80 series and is not directly interchangeable with Quantum modules. System migration or adaptation is required.

What types of RTD sensors are supported? The module is compatible with common RTD elements such as Pt100 and Pt1000, depending on configuration.
