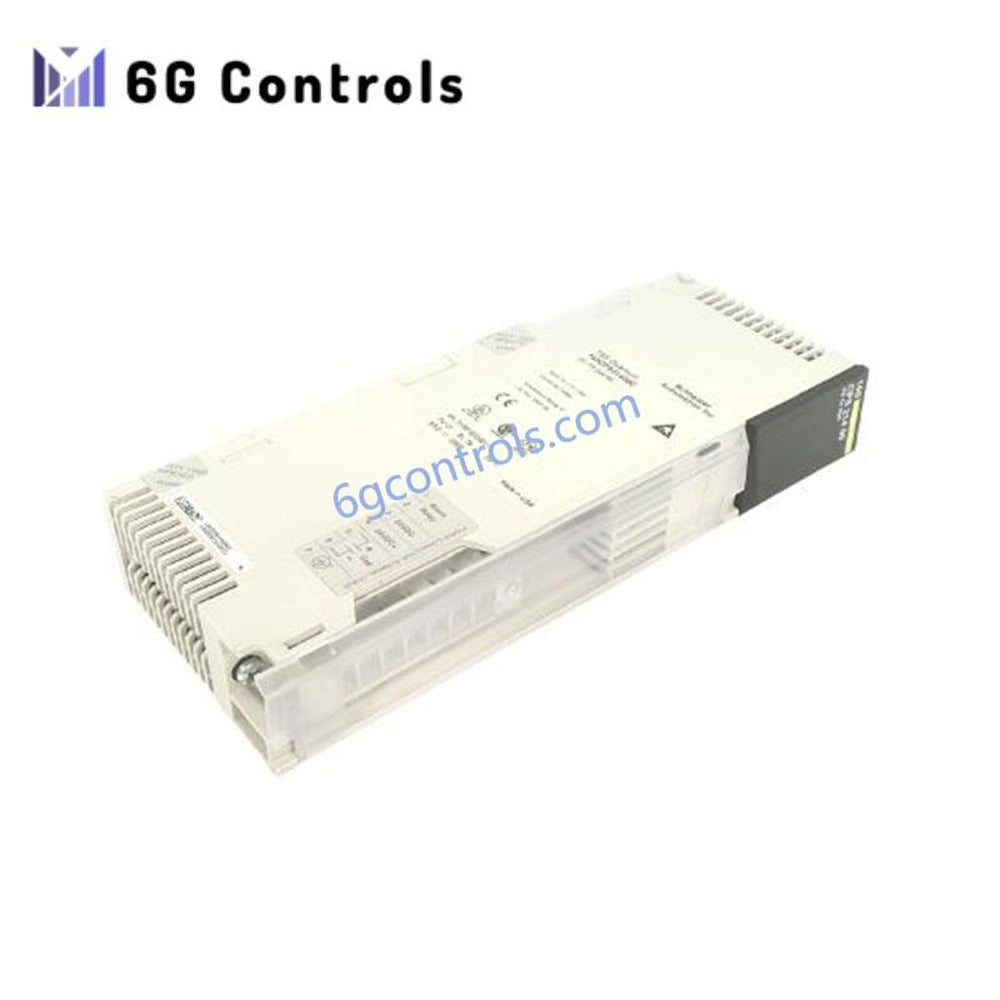

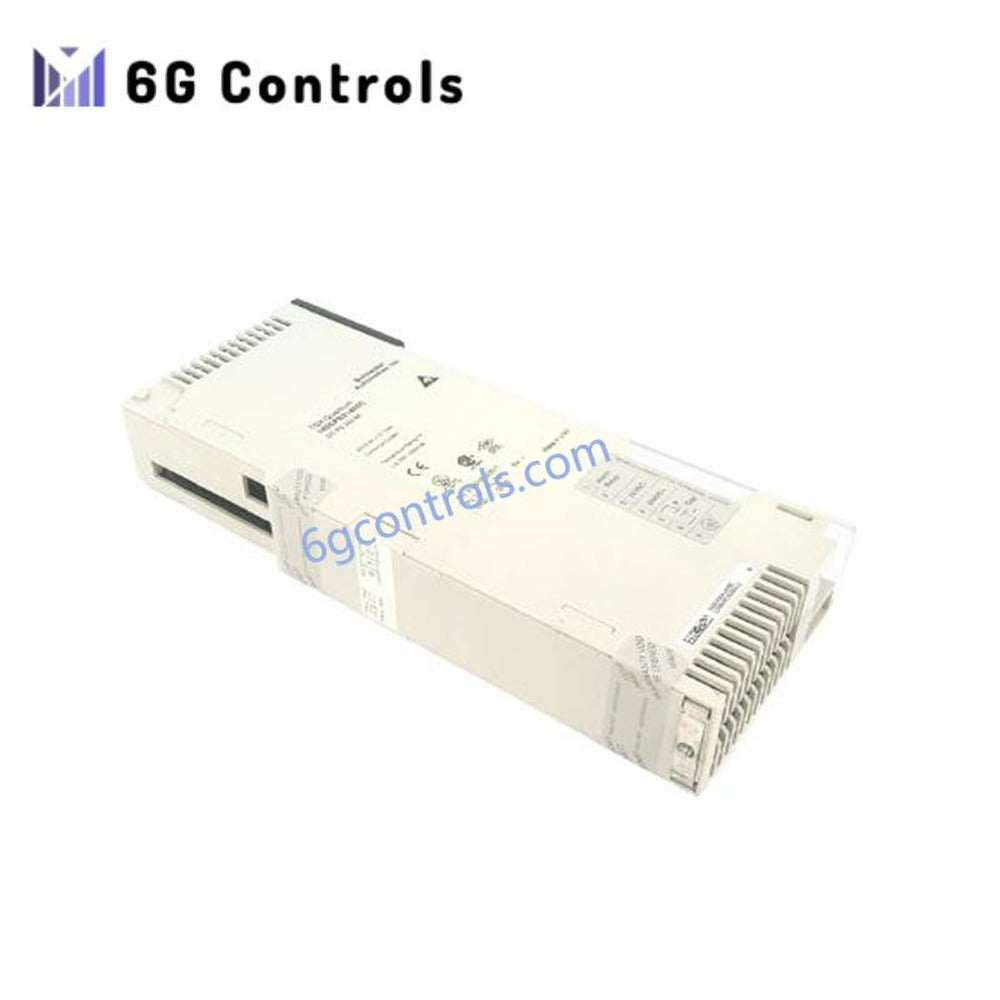

Schneider Electric 140CPS22424 Quantum Redundant Power Supply

Product Description

The Schneider Electric 140CPS22424 is a redundant DC power supply module developed for the Modicon Quantum automation platform. It is designed to provide a regulated 5.1 VDC output to the PLC backplane from a 24 VDC input source, ensuring stable operation of CPUs, communication processors, and I/O modules.

This module supports parallel redundancy, allowing two units to operate simultaneously in load-sharing mode. In the event of a failure, the secondary module maintains uninterrupted power delivery, making it suitable for high-availability control systems where downtime is not acceptable.

Its electrical protection features, diagnostic signaling, and compliance with industrial standards make it a reliable component in critical process environments.

Core Functional Characteristics

• Redundant power architecture with automatic failover
• Regulated backplane output for Quantum PLC systems
• Designed for continuous operation in critical infrastructure
• Integrated protection against overvoltage and overload
• Status monitoring via LED and relay alarm output
• Compatible with standard Modicon Quantum racks

Electrical Specifications

Output Characteristics

Monitoring and Diagnostics

• One normally closed (NC) relay contact for fault signaling
• Contact rating: up to 6 A at 220 V
• One green LED indicator for power status (PWR OK)

Mechanical Details

• Module Format: Standard Modicon Quantum form factor
• Weight: 1.43 lb
• Installation: Slot-mounted within Quantum racks

Environmental Specifications

• Operating Temperature: 0°C to +60°C
• Storage Temperature: –40°C to +85°C
• Relative Humidity: Up to 95% (non-condensing)
• Operating Altitude: Up to 5000 m
• Compliance: CE, UL 508, CSA standards
• Certifications: FM Class 1 Division 2, cUL

Typical Applications

• Redundant PLC power systems
• High-availability automation architectures
• Oil and gas production facilities
• Power generation and distribution plants
• Chemical and continuous process industries

FAQ

Q: Can the 140CPS22424 operate in a non-redundant configuration? A: Yes, it can function as a standalone power supply, though redundancy is recommended for critical systems.

Q: What happens if one module fails in a redundant setup? A: The second module immediately assumes full load without interrupting PLC operation.

Q: Is this module compatible with Modicon X80 systems? A: No, it is specific to the Modicon Quantum platform. X80 systems require different power supply modules such as BMXCPS4022.
