Schneider Electric 490NRP25300 Fiber Optic Repeater

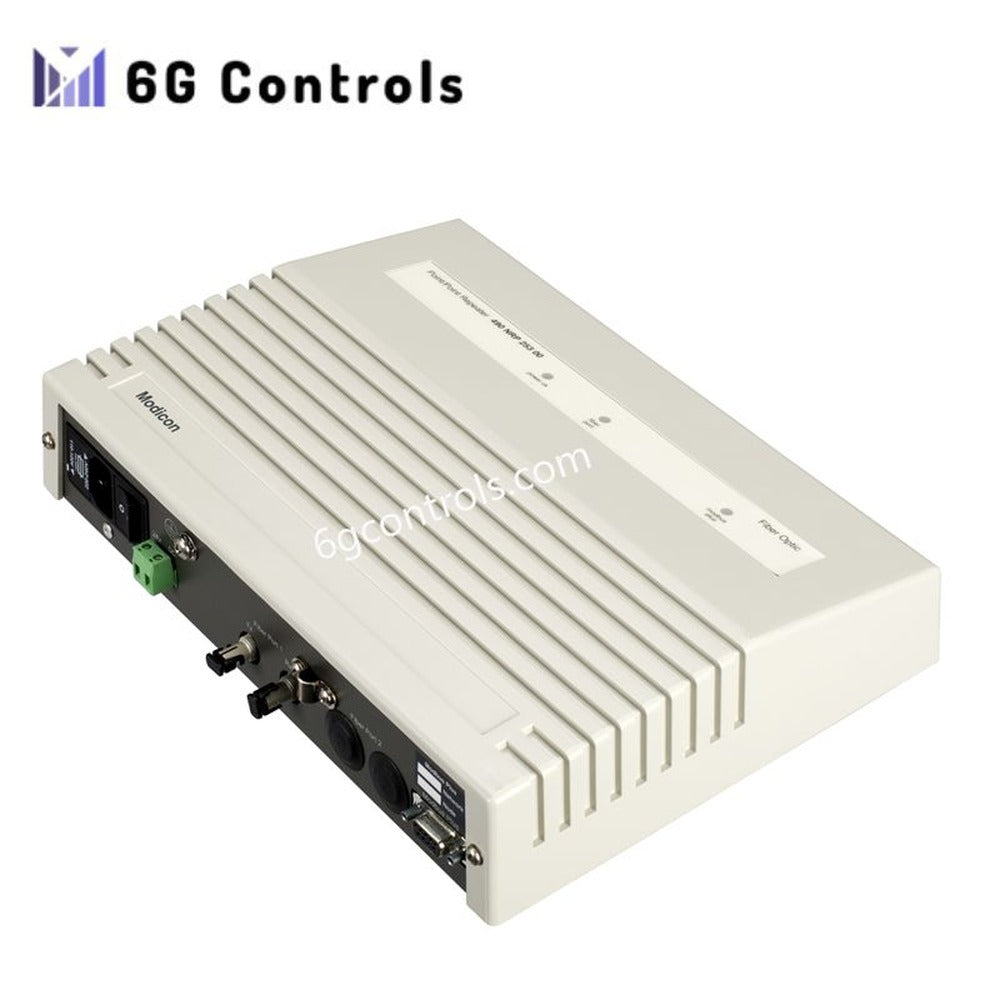

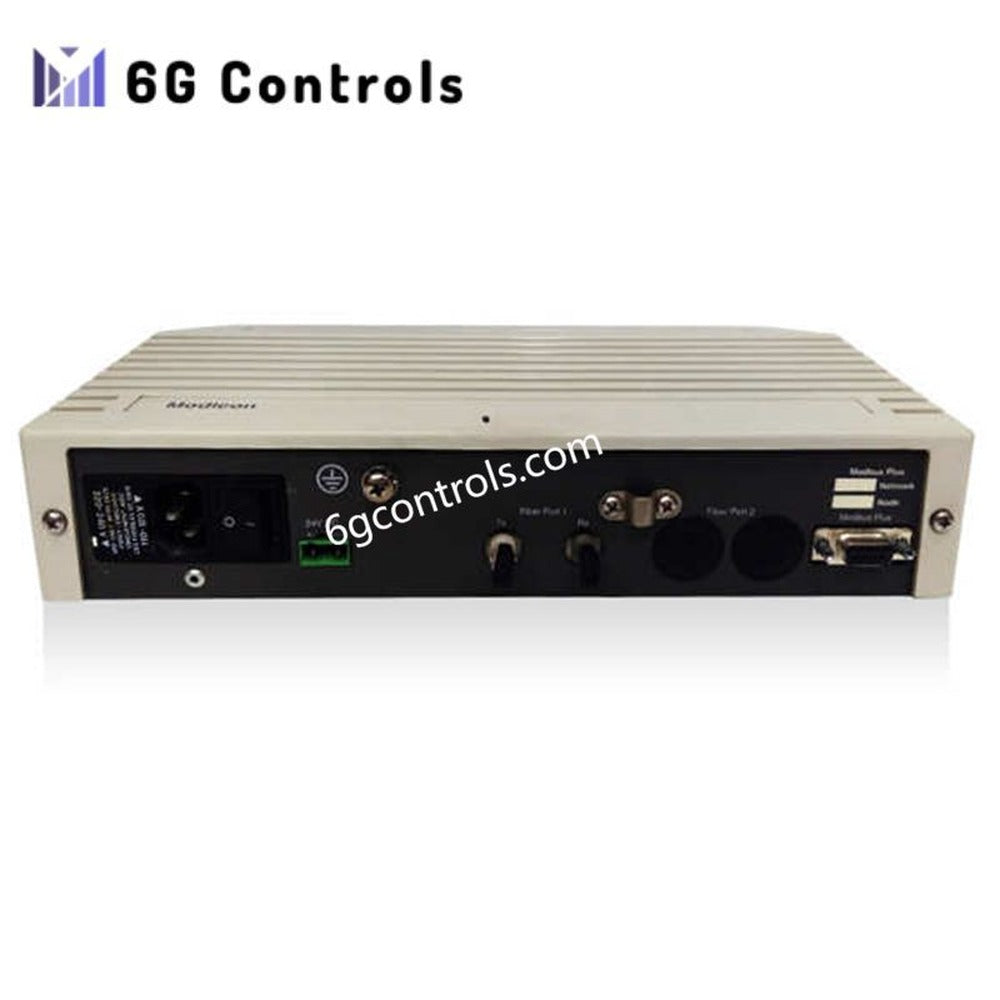

The Schneider Electric 490NRP25300 , also cataloged as the 490NRP Fiber Optic Repeater, operates as a dedicated hardware component for fiber-optic signal transmission and network extension within Modicon Plus (MB+) communication networks. The module converts and regenerates optical communication signals to maintain network integrity across extended transmission distances using fiber-optic media.

Hardware Specifications

Backplane Communication and Network Extension Characteristics

The 490NRP25300 is designed to support deterministic industrial communication architectures by regenerating and retransmitting network traffic through fiber-optic infrastructure. Fiber-optic transmission provides electrical isolation between network segments while reducing susceptibility to electromagnetic interference commonly present in industrial environments.

The repeater functions as an intermediate communication device, extending allowable network distances and maintaining signal quality between connected MB+ network nodes. Proper integration requires compatibility with the associated Modicon Plus communication architecture and network addressing configuration.

Frequently Asked Questions

Q: Does the 490NRP25300 perform protocol conversion? A: No. The module operates as a communication repeater for fiber-optic transmission paths and is intended to regenerate and extend existing network communications rather than translate protocols.

Q: Can fiber-optic segments improve electrical isolation between network sections? A: Yes. Fiber-optic media inherently provides galvanic isolation because communication is transmitted optically rather than through conductive copper paths.

Q: Are special network configuration parameters required after installation? A: Network configuration requirements depend on the connected MB+ system architecture. Addressing, topology, and communication parameters should match the requirements of the host network.

Field Installation Guidelines

• Verify fiber-optic cable type and connector compatibility before installation.
• Maintain minimum bend radius requirements specified for the selected fiber-optic cable.
• Route fiber-optic cables separately from high-power motor, drive, and switching conductors where practical.
• Inspect and clean fiber connectors before mating to minimize optical attenuation.
• Confirm proper module mounting and secure all communication connections before energizing the network.
• Verify communication status indicators and network diagnostics following commissioning.
• Avoid excessive mechanical stress on fiber terminations during installation and maintenance activities.
