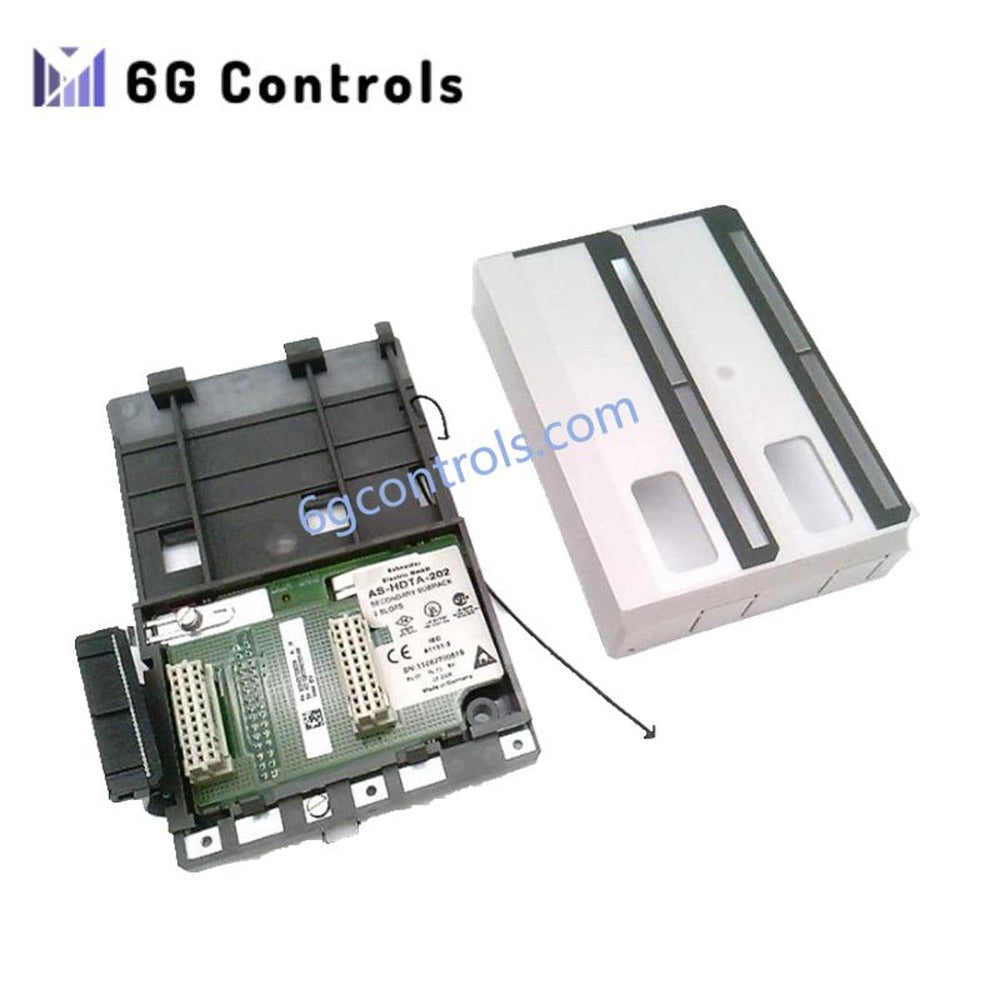

Schneider Electric ASHDTA202 Secondary Subrack

The Schneider Electric ASHDTA202, also cataloged as the ASHDTA202 Secondary Subrack, operates as a dedicated hardware component for modular rack expansion within Modicon Compact 984 PLC systems. It provides physical mounting, module retention, and electrical backplane support for secondary control assemblies.

Hardware Specifications

Parameter	Specification
Model	ASHDTA202
Brand	Schneider Electric
Origin	France
Weight	0.55 lbs
Operating Temp	0 to 60 deg C
Power Consumption	Passive subrack assembly; no direct power consumption
Series	Modicon Compact 984
Product Type	Secondary Subrack / Expansion Rack
Slot Capacity	2 slots
Mounting	Panel mounting / industrial rack installation
Supported System	Modicon Compact 984 PLC platform
Communication Interface	System backplane connection

Backplane Architecture and PLC Rack Integration

The ASHDTA202 provides the mechanical structure required for installation of Compact 984 PLC modules in secondary rack positions. The subrack maintains module alignment and electrical connection through the PLC backplane interface. Proper rack addressing, bus termination, and module placement must follow the controller hardware configuration requirements.

The Schneider Electric PLC architecture supports deterministic backplane communication velocity and I/O density scaling through modular rack expansion. The ASHDTA202 functions as a passive expansion assembly, allowing additional control modules to be physically integrated into the existing automation system.

Frequently Asked Questions

Q: Does the ASHDTA202 contain an independent power supply module? A: No. The ASHDTA202 is a passive secondary subrack assembly. Power distribution depends on the installed Compact 984 system power components.

Q: What type of modules can be installed in the ASHDTA202? A: The subrack is designed for compatible Modicon Compact 984 PLC modules installed according to the defined rack configuration and backplane requirements.

Q: Is the ASHDTA202 a standalone communication device? A: No. Communication is provided through the PLC system backplane and installed controller architecture rather than through an independent communication processor.

Field Installation Guidelines

Install the ASHDTA202 on a mechanically stable panel surface with adequate clearance for module insertion and wiring access. Verify that the backplane connector area is free from contamination before module installation.

Use proper grounding practices for the PLC enclosure and mounting structure. Route signal wiring separately from high-voltage power conductors to reduce electromagnetic interference. Confirm rack addressing, module orientation, and connector engagement before system power application.
