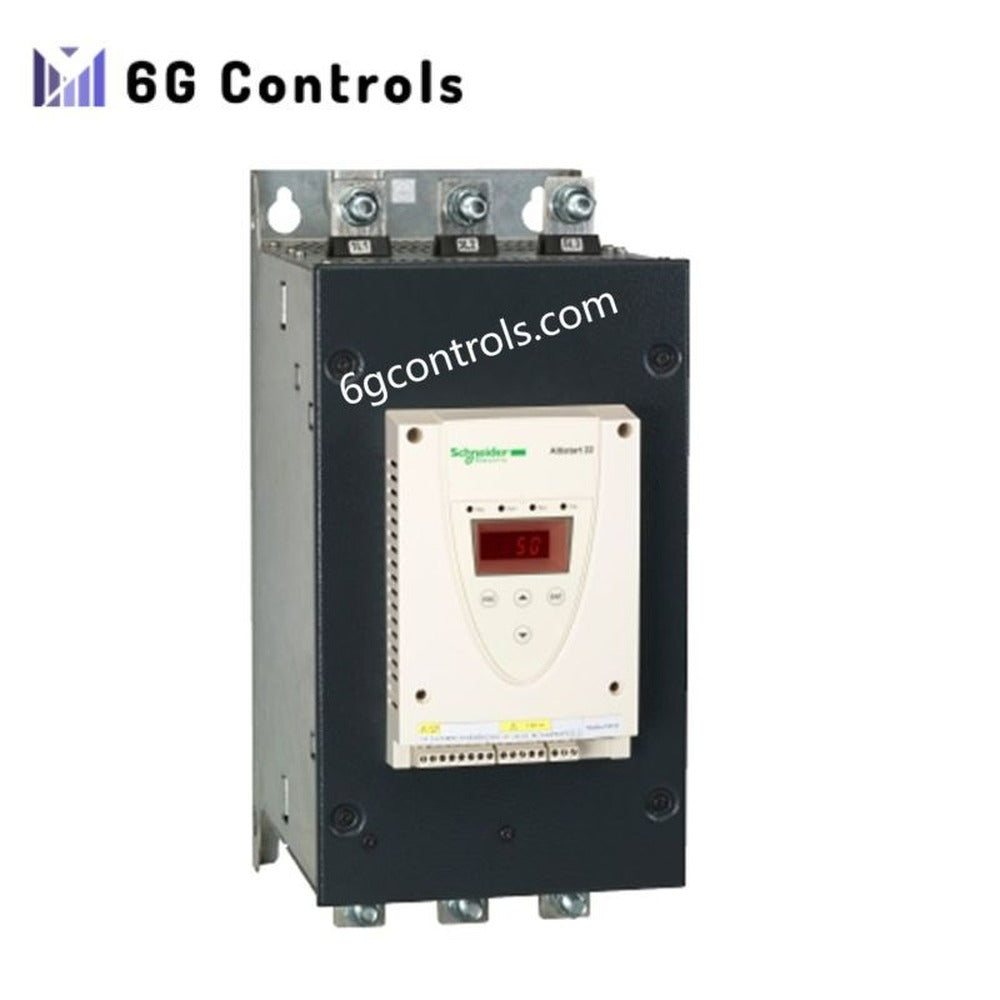

Schneider Electric ATS22C41Q Altistart 22 Soft Starter

17 in stock

Manufacturer: Schneider
Product No.: ATS22C41Q
Country of origin: France
Product Type: Altistart 22 Soft Starter
Condition: Brand New
Payment: T/T, Western Union
Weight: 33.0 kg
Dimensions: 425 mm × 206 mm × 299 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Schneider Electric ATS22C41Q Altistart 22 Soft Starter

Configured for torque-controlled motor starting in the Altistart 22 motor control platform, the Schneider Electric ATS22C41Q (ATS22C41Q Soft Starter) provides direct physical/electrical execution. It controls the acceleration of three-phase asynchronous motors through current-limited starting, integrated bypass operation, Modbus RS485 communication, and embedded thermal protection. The module supports supply voltages from 230 V to 440 V and motor ratings up to 220 kW.

Suffix Breakdown & Model Matrix

The provided documentation identifies a single catalog number, ATS22C41Q. No official suffix breakdown or model matrix is specified in the supplied data, therefore no suffix interpretation is provided.

Hardware Specifications

Parameter	Specification
Model	ATS22C41Q
Brand	Schneider Electric
Product Series	Altistart 22
Product Type	Soft Starter
Supported Motor Type	Three-phase asynchronous motor
Rated Supply Voltage	230 V to 440 V (+15% / -10%)
Motor Power	110 kW at 230 V; 220 kW at 400/440 V
Starter Rating	410 A
Factory Setting Current	388 A
Start Method	Torque control with current limited to 3.5 In
Integrated Bypass	Yes
Control Circuit Voltage	230 V, 50/60 Hz (+15% / -10%)
Logic Inputs	3 x 24 V logic inputs
Relay Outputs	2 configurable relay outputs
Communication	Modbus RS485, RJ45, 4800-19200 bps
Cooling Method	Forced convection
Protection	Motor thermal protection, starter thermal protection, phase failure detection
EMC Compliance	IEC 60947-4-2, IEC 61000
Shock Resistance	15 gn, 11 ms
Vibration Resistance	1 gn, 13-200 Hz
Noise Level	56 dB
Mounting Position	Vertical, ±10 deg
Dimensions	425 mm × 206 mm × 299 mm
Weight	33 kg
Power Consumption	Power dissipation: 177 W
Certifications	CE, UL, CSA, CCC, GOST

EtherNet and Firmware Integration Considerations

The ATS22C41Q exchanges operating status and control data through a Modbus RS485 multidrop network using an RJ45 interface. Logic inputs and configurable relay outputs allow direct integration with PLC or DCS control circuits for start, stop, running, alarm, and trip functions. Configuration parameters can be transferred using Schneider Electric SoMove software where supported by the control architecture. Integrated bypass reduces semiconductor conduction losses after motor acceleration while maintaining standard control communication.

Frequently Asked Questions

Q: Does the ATS22C41Q include an integrated bypass contactor? A: Yes. The supplied specifications state that the soft starter incorporates an integrated bypass, reducing heat dissipation after the motor reaches operating speed.

Q: Which communication interface is supported by the hardware? A: The unit supports Modbus RS485 communication through an RJ45 connector with selectable transmission rates from 4800 bps to 19200 bps.

Q: Can the device be installed in any orientation? A: No. The specified installation position is vertical with a tolerance of ±10 deg to maintain the intended cooling performance.

Field Installation Guidelines

Install the soft starter vertically as specified to maintain forced-convection airflow through the heat sink.
Verify supply voltage, motor current, and starter rating before energizing the system.
Separate RS485 communication wiring from motor power cables to reduce conducted electrical noise.
Ground cable shields according to the control system grounding practice, avoiding multiple shield grounding points unless required by the installation standard.
Allow sufficient clearance around the heat sink and ventilation openings to prevent airflow restriction.
Tighten power and control terminals according to the manufacturer's specified torque values during installation and maintenance.

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
