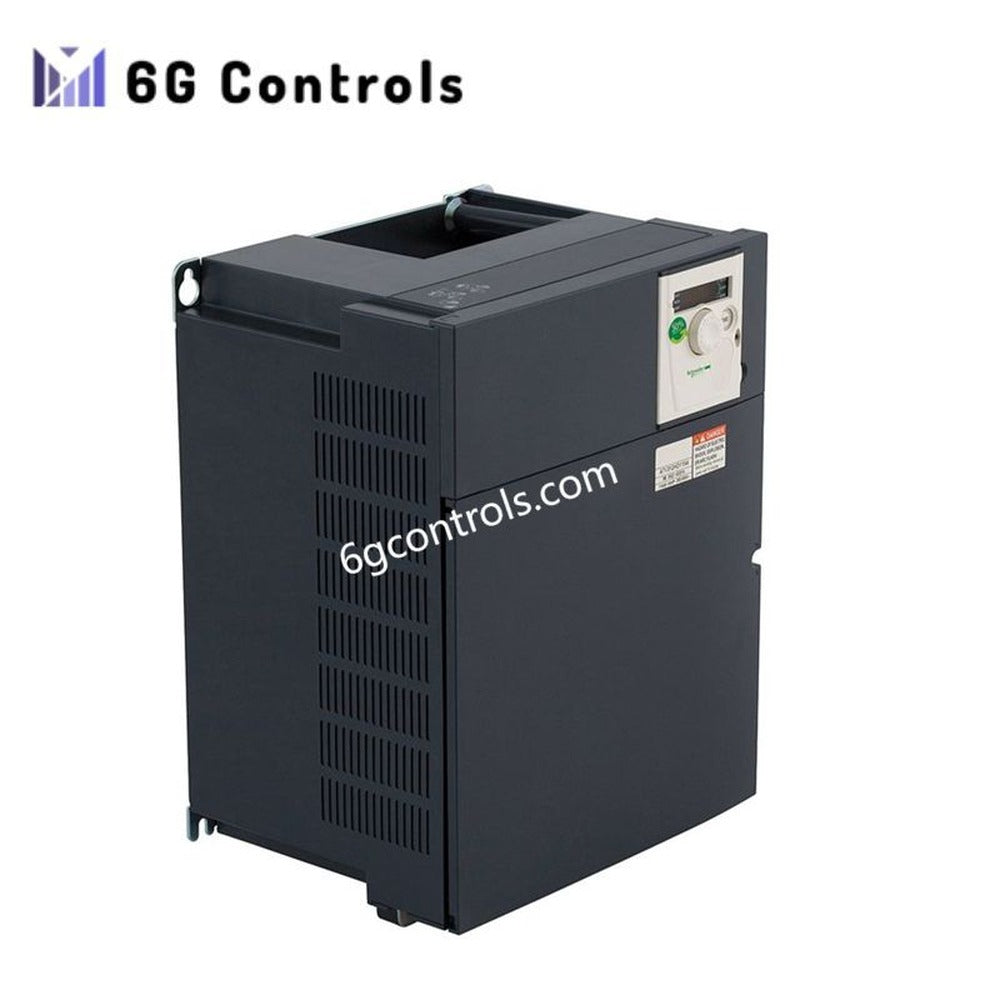

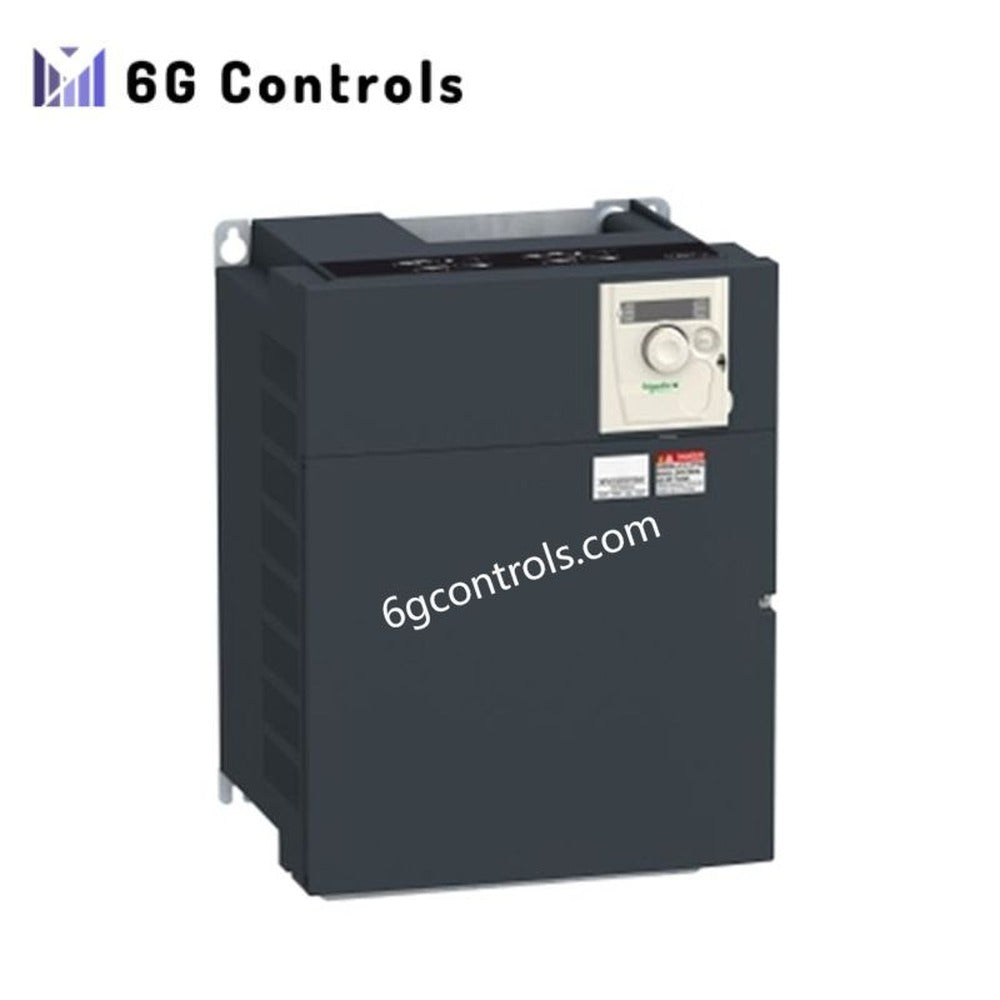

Schneider Electric ATV312HD11N4 Altivar 312 Variable Speed Drive

Low stock: 10 left

Manufacturer: Schneider
Product No.: ATV312HD11N4
Country of origin: France
Product Type: Altivar 312 Variable Speed Drive
Condition: Brand New
Payment: T/T, Western Union
Weight: 11.0 kg
Dimensions: 329.5 mm x 245 mm x 192 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Schneider Electric ATV312HD11N4 Altivar 312 Variable Speed Drive

The Schneider Electric ATV312HD11N4, also cataloged as the ATV312 Variable Speed Drive, operates as a dedicated hardware component for asynchronous motor speed regulation within Altivar 312 drive control platforms. It executes PWM motor control, sensorless flux vector regulation, analog/digital signal processing, and Modbus/CANopen communication functions for 11 kW motor applications.

Hardware Specifications

Parameter	Specification
Model	ATV312HD11N4
Brand	Schneider Electric
Product Series	Altivar 312
Product Type	Variable Speed Drive
Motor Type	Asynchronous motors
Rated Supply Voltage	380 V to 500 V AC, 3 phase
Supply Voltage Limits	323 V to 550 V
Motor Power	11 kW / 15 hp
Continuous Output Current	27.7 A at 4 kHz
Line Current	37.2 A at 380 V; 28.4 A at 500 V
Apparent Power	25 kVA
Output Frequency	0 Hz to 500 Hz
Switching Frequency	2 kHz to 16 kHz adjustable
Nominal Switching Frequency	4 kHz
Maximum Transient Current	41.6 A for 60 s
Power Dissipation	397 W at nominal load
Communication Protocol	Modbus RS485, CANopen
Communication Connector	RJ45
Modbus Transmission Rate	4800, 9600, 19200 bps
CANopen Transmission Rate	10 kbps to 1 Mbps
Analog Inputs	3 channels
Analog Outputs	1 channel
Digital Inputs	6 programmable inputs
Digital Outputs	2 relay outputs
Control Method	Constant torque, sensorless flux vector control with PWM
Braking Function	DC injection braking, braking resistor support
EMC Filter	Integrated
Protection Rating	IP20 upper part without cover, IP21 terminals, IP31/IP41 upper part
Dimensions	329.5 mm x 245 mm x 192 mm
Weight	11 kg
Operating Temp	-10 deg C to 50 deg C without derating
Power Consumption	397 W power dissipation at nominal load

Industrial Control Network and Drive Compatibility

The ATV312HD11N4 uses RS485 multidrop communication for Modbus RTU data exchange and supports CANopen network integration through optional communication interfaces. The drive processes analog references, programmable logic inputs, and relay feedback outputs for machine control applications. Firmware flash compatibility within the Altivar 312 platform allows parameter storage and transfer using SoMove configuration software.

The control architecture supports I/O density scaling through six programmable logic inputs, three analog inputs, and configurable relay outputs. PWM switching frequency adjustment from 2 kHz to 16 kHz provides control flexibility for different motor operating conditions.

Frequently Asked Questions

Q: What motor control method is implemented in the ATV312HD11N4? A: The drive supports constant torque control and sensorless flux vector control using PWM motor control signals.

Q: Which communication networks are supported by the drive? A: The standard communication interface supports Modbus RTU through RS485. CANopen communication is also supported through the compatible communication interface.

Q: What are the supported analog input signal types? A: The drive provides configurable analog inputs including 0 V to 10 V voltage input, +/-10 V voltage input, and 0 mA to 20 mA current input.

Field Installation Guidelines

Install the drive in a vertical position within the specified mounting tolerance to maintain heat sink airflow.
Route motor power cables separately from communication and analog signal wiring to reduce electromagnetic interference.
Connect protective earth conductors according to IEC installation practices before applying power.
Use shielded cables for RS485 communication and terminate shields according to the control cabinet grounding method.
Verify motor rated current, supply voltage, and parameter settings before commissioning.
Maintain ventilation paths around the heat sink and avoid blocking cooling airflow openings.
Inspect terminal tightening conditions for power, control, and communication wiring during installation.

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
