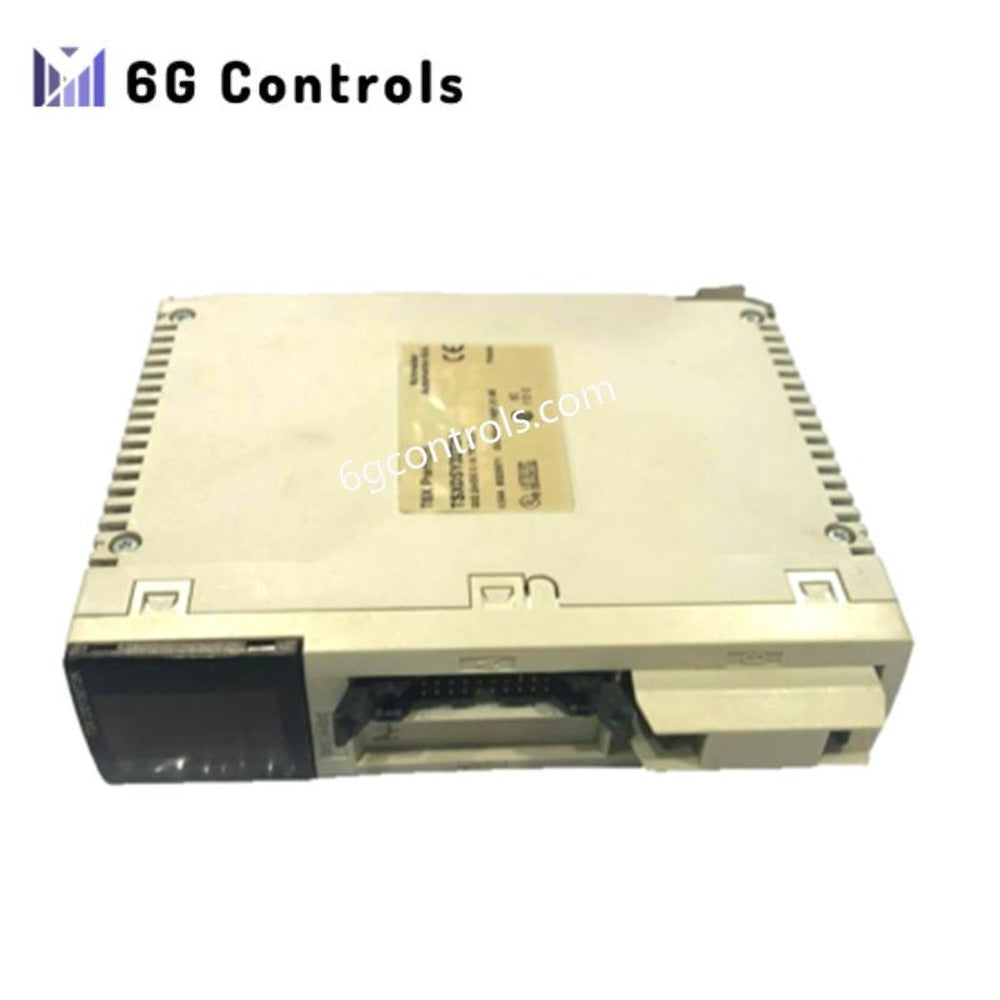

Schneider TSXDSY32T2K Discrete Output Module Brand New

14 in stock

Manufacturer: Schneider
Product No.: TSXDSY32T2K
Country of origin: France
Product Type: Discrete Output Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.3 kg
Dimensions: 5.5 × 18 × 26 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The TSXDSY32T2K is a 32-channel solid-state discrete output module for the Modicon Premium platform. It delivers fast, reliable 24 V DC positive outputs. This module controls actuators, relays, and digital devices efficiently. Moreover, built-in protections ensure safe operation under demanding industrial conditions.

Technical Specifications

Product Type: Discrete Output Module
Platform: Modicon Premium
Number of Outputs: 32 solid-state transistor outputs
Output Voltage: 24 V DC positive (range: 19–30 V DC)
Current per Channel: ≤ 0.1 A
Total Module Current: ≤ 3.2 A
Leakage Current: < 0.1 mA @ 30 V
Residual Voltage (Ures): < 1.5 V
Response Time: ≤ 1.2 ms
Load Impedance: ≥ 220 Ω at state 1
Maximum Tungsten Load: ≤ 1.2 W
Paralleling of Outputs: Up to 3 outputs
Overvoltage Protection: Transil diode
Reverse Polarity Protection: Reverse-mounted diode
Overload Protection: Automatic trip
Short-Circuit Protection: Automatic trip
Electrical Isolation: > 10 MΩ @ 500 V DC
Dielectric Strength: 1500 V AC, 50/60 Hz for 60 s
Power Dissipation: 1.6 W + 0.1 W × number of outputs used
Current Consumption: 140 mA @ 5 V DC
Connection Type: 2 × HE-10 connectors
Module Format: Standard
Operating Temperature: 0°C to +60°C
Storage Temperature: –25°C to +70°C
Standards: CSA C22.2 No 213 Class I Div.2 Groups A–D, IEC 61131-2, UL 508, 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC
Certifications: ABS, RINA, GL, DNV, RMRS, LR, BV
IP Degree of Protection: IP20
Pollution Degree: 2
Operating Humidity: 10–95% without condensation
Storage Humidity: 5–95% without condensation
Operating Altitude: 0–2000 m (0–6561.68 ft)
Protective Treatment: TC
Category: US1PC2222558
Discount Schedule: PC22
GTIN: 3389110725575
Returnability: No
Packing Unit: 1 PCE
Dimensions: 5.5 × 18 × 26 cm (H × W × L)
Weight: 0.3 kg
