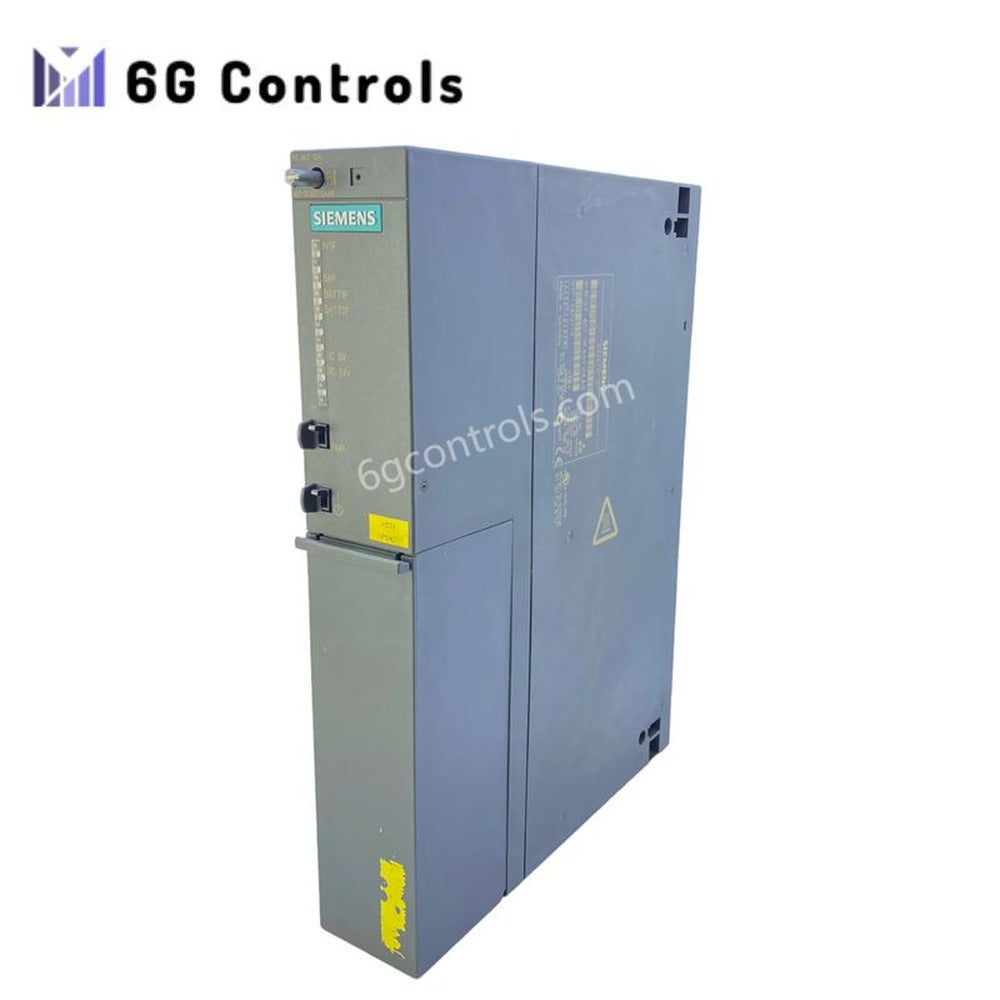

SIEMENS 6ES7407-0KA01-0AA0 Power Supply Module PS407 10A

Overview

The Siemens 6ES7407-0KA01-0AA0 is a robust power supply module designed for the SIMATIC S7-400 automation system. It ensures reliable power delivery and supports both AC and DC input networks. This module offers two output voltages and is ideal for industrial applications requiring stable and efficient power conversion.

Technical Specifications

Input Voltage:

• AC: Rated voltage of 120 V to 230 V, permissible range from 85 V to 264 V

• DC: Rated voltage of 120 V to 230 V, permissible range from 88 V to 300 V

Input Current:

• 1.2 A at 120 V AC/DC

• 0.6 A at 230 V AC/DC

Output Voltage:

• 5 V DC

• 24 V DC

Output Current:

• 5 V DC: Maximum 10 A

• 24 V DC: Maximum 1 A

Power Loss:

• 29.7 W (Typical power loss)

Battery Backup:

• Supports two 3.6 V lithium AA batteries with a capacity of 1.9 Ah for backup.

Net Weight:

• 1.275 kg

Packaging Dimensions:

• 23.30 x 30.20 x 6.50 cm

Package Size Unit:

• CM (centimeter)

Compliance:

• RoHS: Not compliant

• WEEE (2012/19/EU): Take-back obligation applies

• REACH: No Substances of Very High Concern (SVHC) reported
