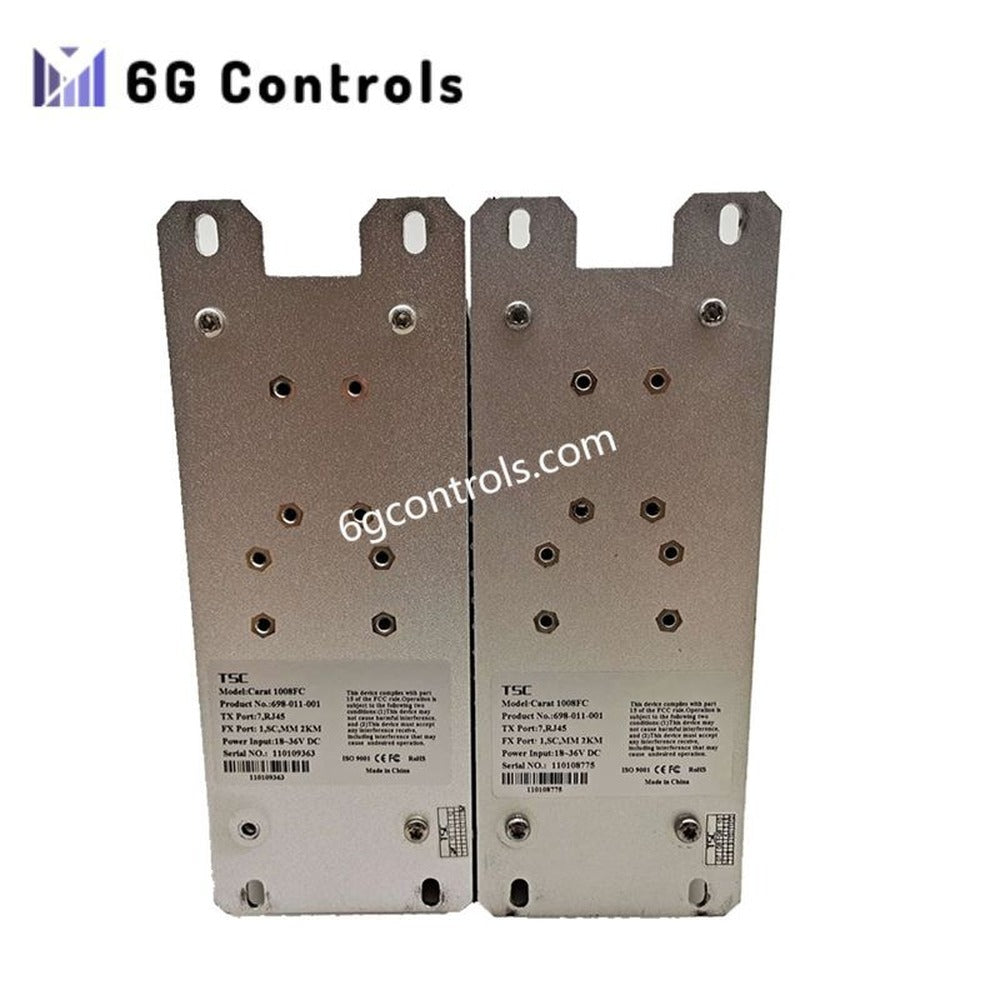

TSC Carat 1008FC-20 Industrial Ethernet Switch Brand New

Product Description

The TSC Carat 1008FC‑20 is an industrial-grade Ethernet switch engineered for reliable connectivity in PLC and DCS automation networks. Its compact design and rugged construction ensure continuous operation in harsh industrial environments. Moreover, the switch supports both Ethernet and RS‑485 communication, providing flexible integration with diverse control systems. Designed for demanding manufacturing, energy, and transportation applications, it ensures stable data transmission and reduces downtime caused by network interruptions. In addition, its wide power input range accommodates various industrial setups without requiring extra converters.

Key Features

• Eight Ethernet ports supporting 10/100 Mbps full or half duplex auto-negotiation.
• RS‑485 and Modbus‑RTU support for seamless PLC/DCS integration.
• Wide DC power input range (12–48 V) suitable for diverse industrial installations.
• Rugged design tolerates –40 °C to +85 °C and 0–95% non-condensing humidity.
• Compact form factor allows easy installation in standard control cabinets.
• Shielding and ferrule recommendations minimize interference and improve signal reliability.
• Industrial-grade construction ensures stable performance and long-term reliability.

Technical Specifications

• Ports: 8 Ethernet ports (RJ‑45)
• Data Rate: 10 Mbps / 100 Mbps, auto-negotiation
• Transmission Mode: Full/Half duplex adaptive
• Backplane Bandwidth: 9.6 Gbps
• Power Supply: DC 12–48 V
• Protocols Supported: RS‑485, Modbus‑RTU
• Operating Temperature: –40 °C to +85 °C
• Humidity Range: 0–95%, non-condensing

Typical Applications

The Carat 1008FC‑20 is ideal for industrial automation systems, including PLC/DCS architectures. For instance, it ensures reliable Ethernet communication in manufacturing lines, energy generation plants, and transportation networks. Moreover, it supports hybrid setups where Ethernet and serial communication coexist. Its rugged construction makes it suitable for control cabinets exposed to extreme temperatures, vibration, or humidity.

FAQ

Q: Can the Carat 1008FC‑20 operate in extremely cold environments? A: Yes, it functions reliably from –40 °C up to +85 °C.

Q: Does it support Modbus‑RTU for PLC integration? A: Absolutely. It supports RS‑485 and Modbus‑RTU protocols for seamless system communication.

Q: What type of power supply does it require? A: The switch accepts DC input from 12 to 48 V, allowing flexible industrial installations.

Q: Is the device suitable for office or consumer networks? A: No, it is designed specifically for industrial automation and process control systems.
